Active Suspension Control Module

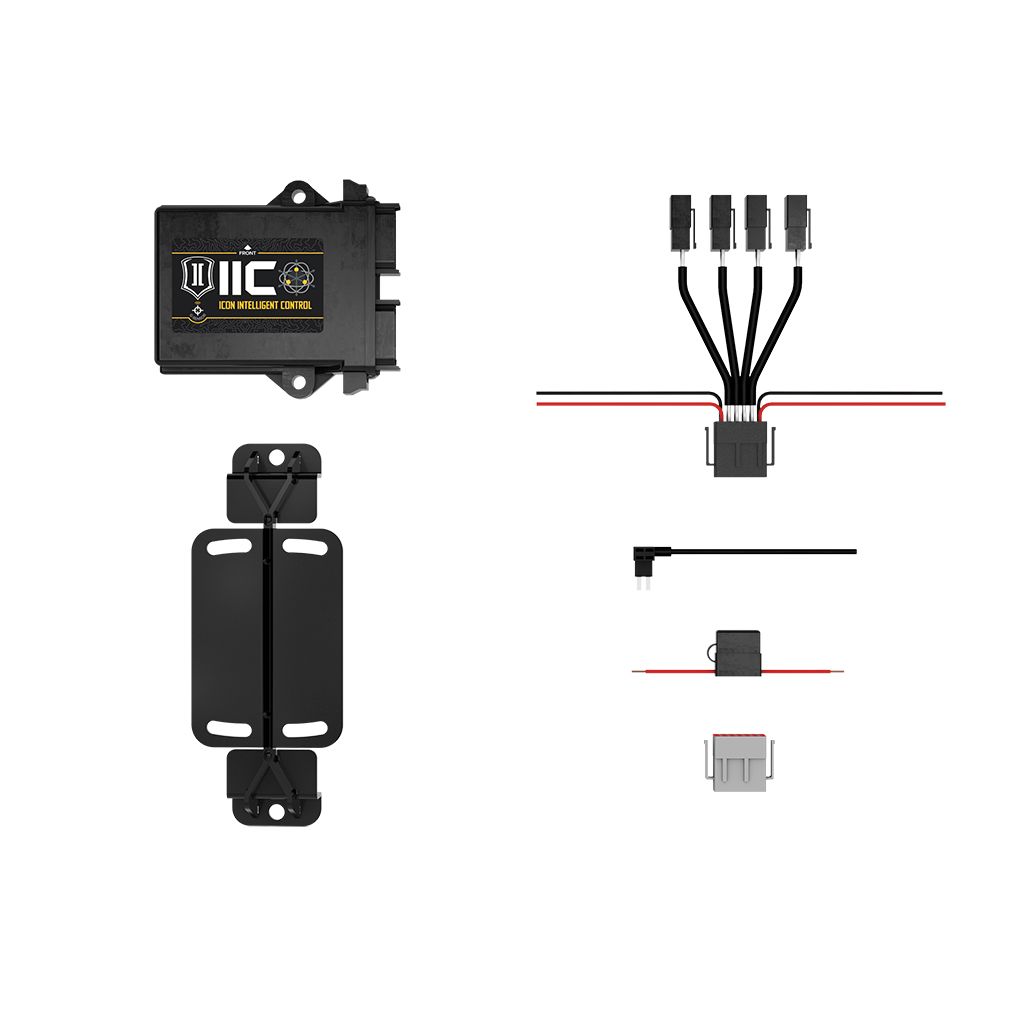

05-15 TACOMA IIC INSTALL KIT

$1,035.48

2005-2015 TOYOTA TACOMA ICON INTELLIGENT CONTROL INSTALL KIT

Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle
Onboard sensors monitor G-forces and movement of vehicle chassis
Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds
User interface provided by IIC Mobile App via Bluetooth connection to iOS device
Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips
Application specific mounting brackets, hardware and wire harnesses

SKU: FRDK-53507 Category: Active Suspension Control Module

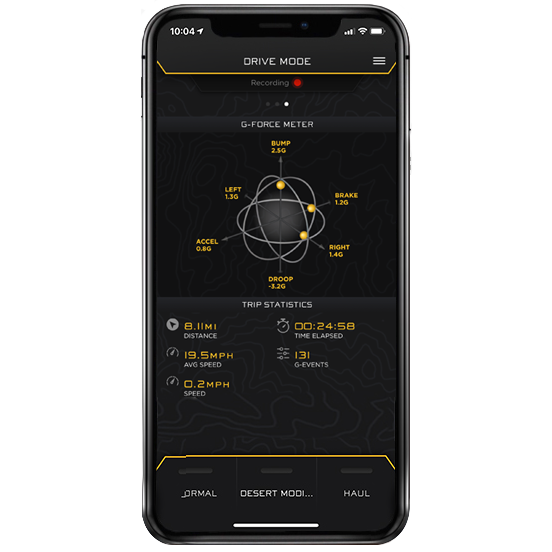

The IIC App brings all of this technology together by offering a user-friendly interface to monitor, record, and adjust the system’s performance via Bluetooth connection. Users can easily alter the shocks’ baseline settings for firmness, as well as adjust the sensitivity of vertical “G-Boost” and lateral “Corner Boost” with a few simple taps from their favorite iOS device. The App includes several preconfigured ‘Drive Modes’ (Normal, Desert, and Haul) but also offers the ability for users to create an unlimited number of unique presets using their own custom settings. To top it all off, you can record data from your trip including time, speed, distance and G-Forces for your very own ICONIC Overview.

Additional Attributes:

GTIN: 00840103414232
Connector Gender: Female
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 57826EP – 05-23 TACOMA RXT REAR 2.5 VS RR CDEV PAIR
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
