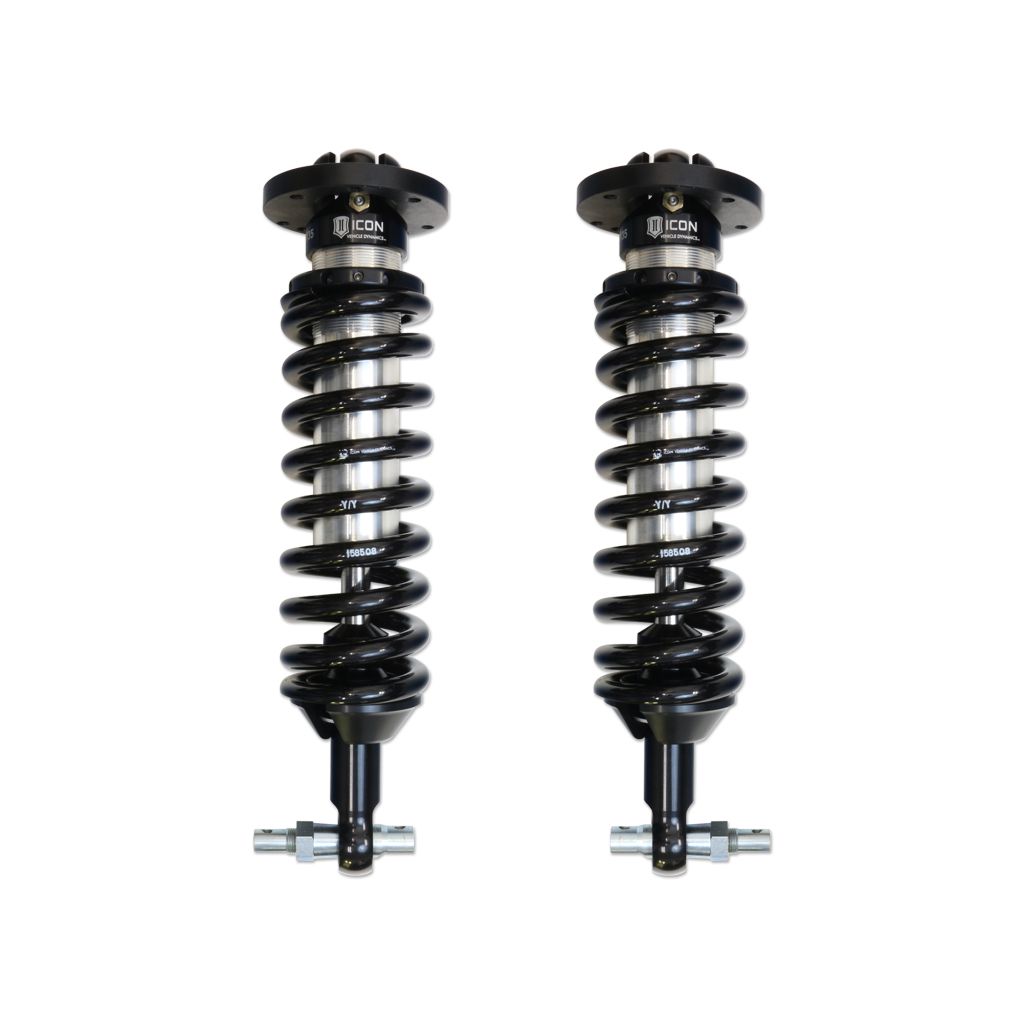

These coil-overs are valved specifically for the new body style (GMT 900 Platform) Chevrolet and GMC half ton, 2WD and 4WD applications. They not only drastically improve the off road characteristics of the vehicle, but increase the on road handling and performance as well. These shocks add an additional inch of wheel travel when used in conjunction with an ICON Vehicle Dynamics Arm (PT# 78600). They also offer an additional amount of lift height compared to our standard travel coil-over shocks.
Additional Attributes:
GTIN: 00840103405964
Spring Material: Steel
Adjustable Height: yes
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: BAR PIN
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: yes
Body Diameter: 2.5
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Damping: NO
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
Remote Reservoir: NO
Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
Shaft Diameter: 0.875
Spring Color: Black
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.0000 x 13.0000 x 7.0000 inches
Weight: 47.0000 PG
I71505_REVA
