07-18 JEEP JK 4.5″ STAGE 1 SUSPENSION SYSTEM

$6,030.72

2007-2018 JEEP JK 4.5" LIFT STAGE 1 SUSPENSION SYSTEM

Dual-rate coil springs front and rear guaranteed never to sag
High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
All links utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
Includes high-performance rebuildable and revalvable 2.0 Aluminum Series shocks
Increased wheel travel and articulation over stock
No welding or cutting required
100% returnable to stock

SKU: FRDK-K24001 Category: Suspension Lift Kit

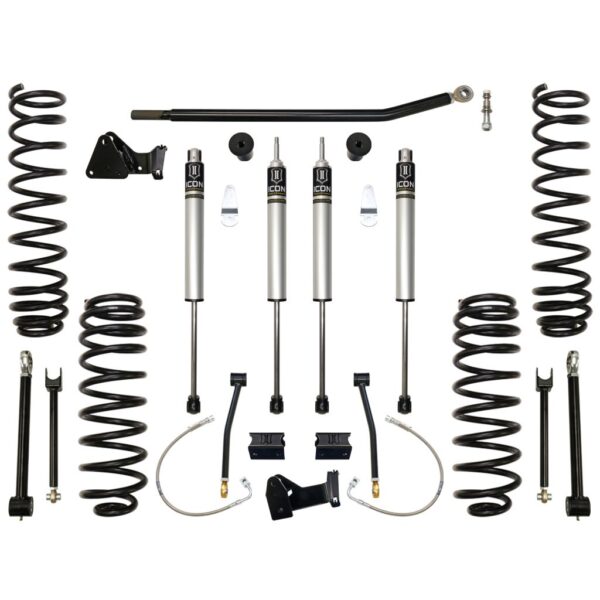

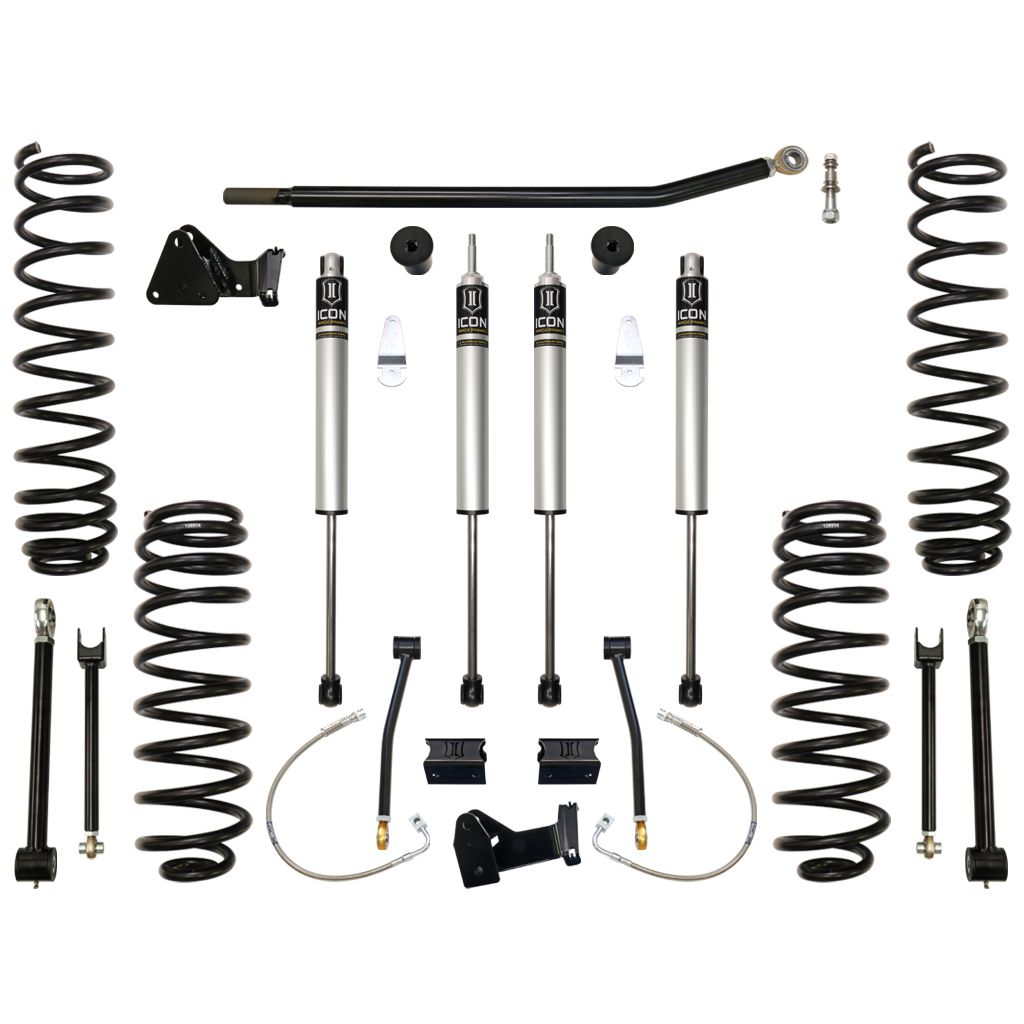

The ICON Stage 1 Jeep JK 4.5" suspension system includes dual-rate coil springs, track bar drop brackets, high-steering components, bumps top spacers, rear brake lines, rear sway bar links, adjustable front upper and rear lower links, and 2.0 Aluminum Series IFP shocks. Tested and tuned, the ICON JK Stage 1 suspension system offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on road feel for every day driving. Installing this kit allows proper clearance for 35" tall tires with no modifications and 37" tires with aftermarket high clearance fenders.

Additional Attributes:

GTIN: 00840103415963
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 4.5
Coils Quantity Front: 2
Coils Quantity Rear: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Dual Rate Coil Springs: Yes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35″ x 12.50″ (Larger 37″ tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 w/ 4.5″ Backspace / -6mm Offset
