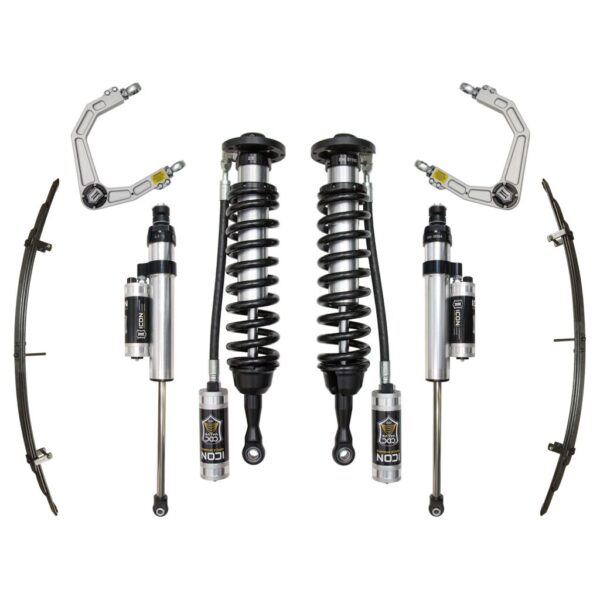

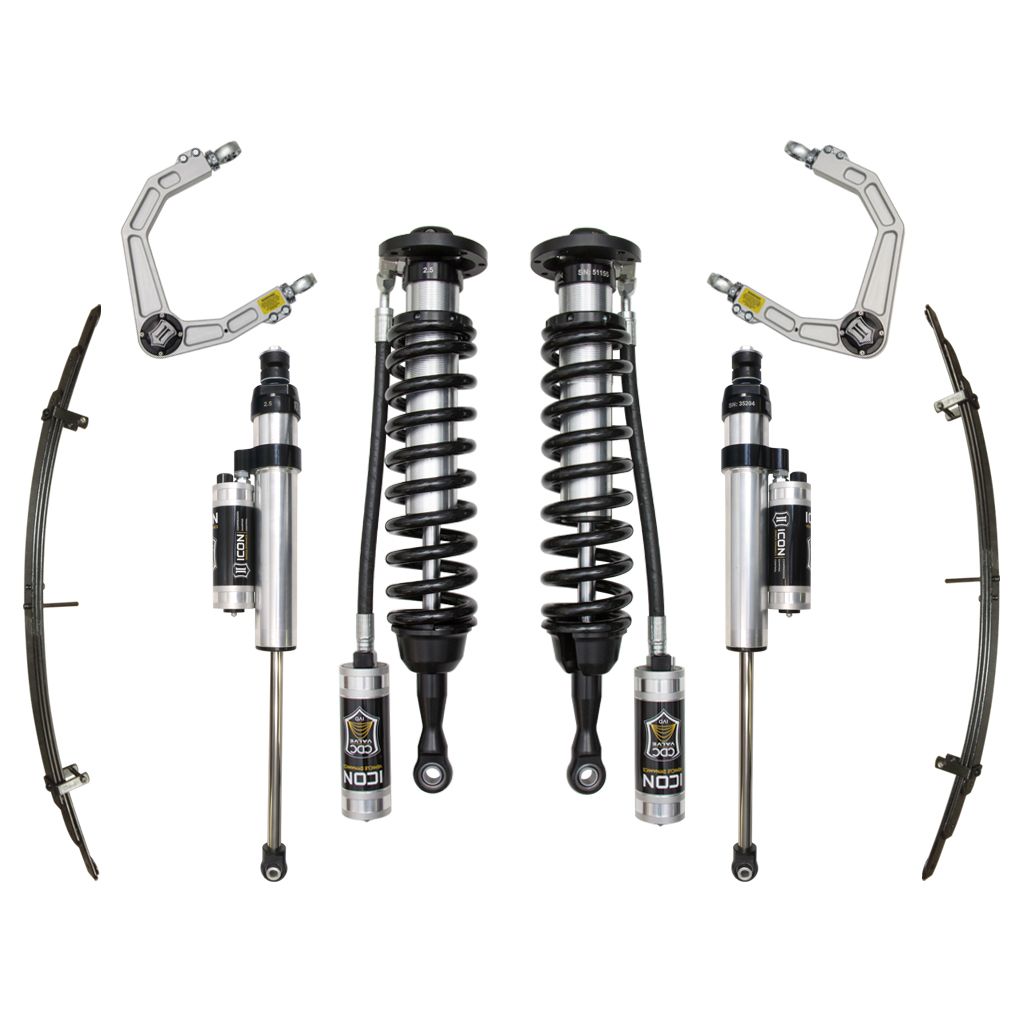

07-21 TUNDRA 1-3″ STAGE 6 SUSPENSION SYSTEM W BILLET UCA

$9,354.34

2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 6 SUSPENSION SYSTEM WITH BILLET UCA

Increased wheel travel and ride quality over stock with no change in towing capacity
CDC tuned front and rear shocks for a custom tuneable ride
Adjustable coilovers from 1-3″ of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
FK rod end bearings for extended longevity and minimal deflection
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Rear expansion pack for 1.5” of lift and better ride quality
100% Bolt-on system – no drilling, cutting, or welding necessary for install

SKU: FRDK-K53026 Category: Suspension Lift Kit

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Additional Attributes:

GTIN: 00840103416663
Spring Material: Steel
Bushings Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3
Leaf Spring Leaf Quantity: 3
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Dual Rate Coil Springs: NO
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
