08-10 FORD F250/F350 7″ STAGE 5 SUSPENSION SYSTEM W RADIUS ARM

$13,705.62

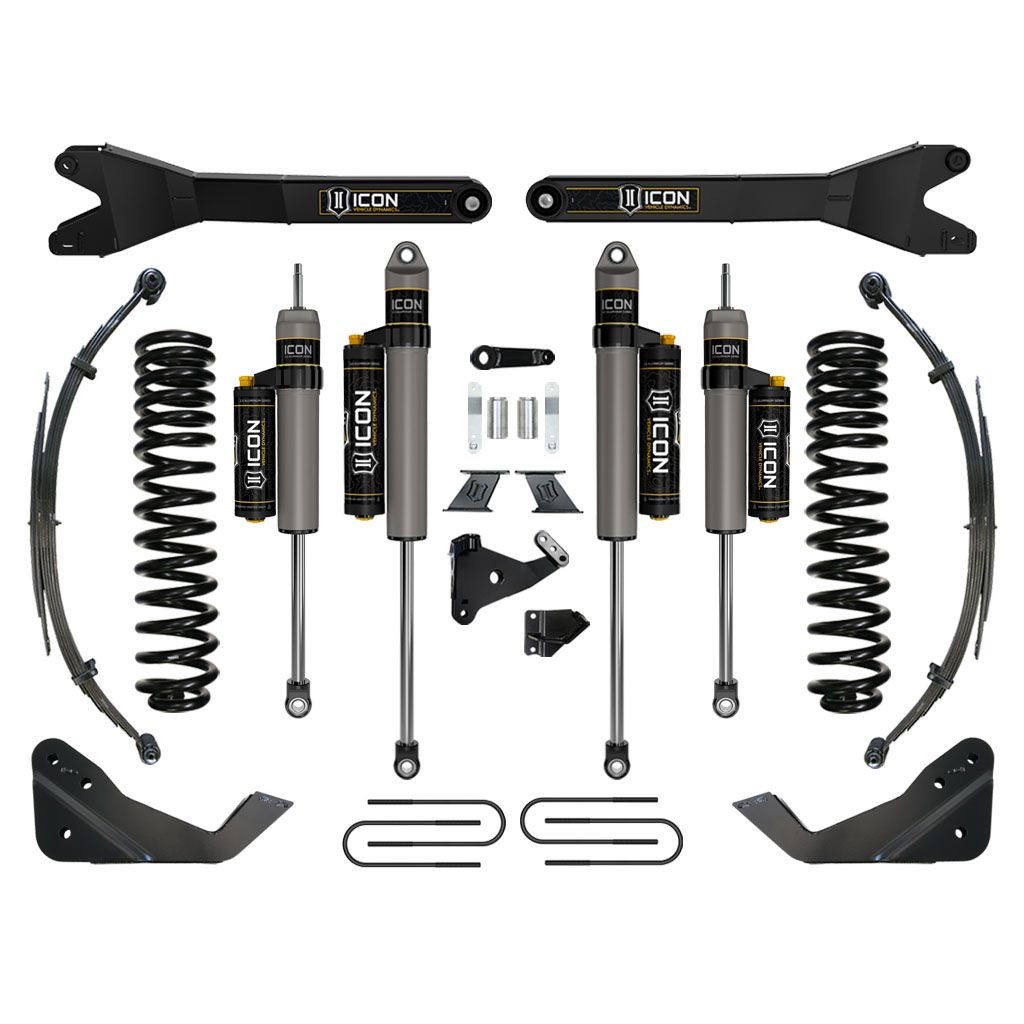

2008-2010 FORD F250/F350 SUPER DUTY 7" LIFT STAGE 5 SUSPENSION SYSTEM WITH RADIUS ARM

Increased wheel travel and ride quality over stock with no change in towing capacity
Decreased body roll
ICON engineered dual rate coil springs with match tuned 2.5 Series reservoir shocks w/ CDCV
Shock absorbers feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
Correctly positioned steering and track bar components
Rear progressive design leaf pack for smooth compliant ride
No drive shaft modifications needed

SKU: FRDK-K67204R Category: Suspension Lift Kit

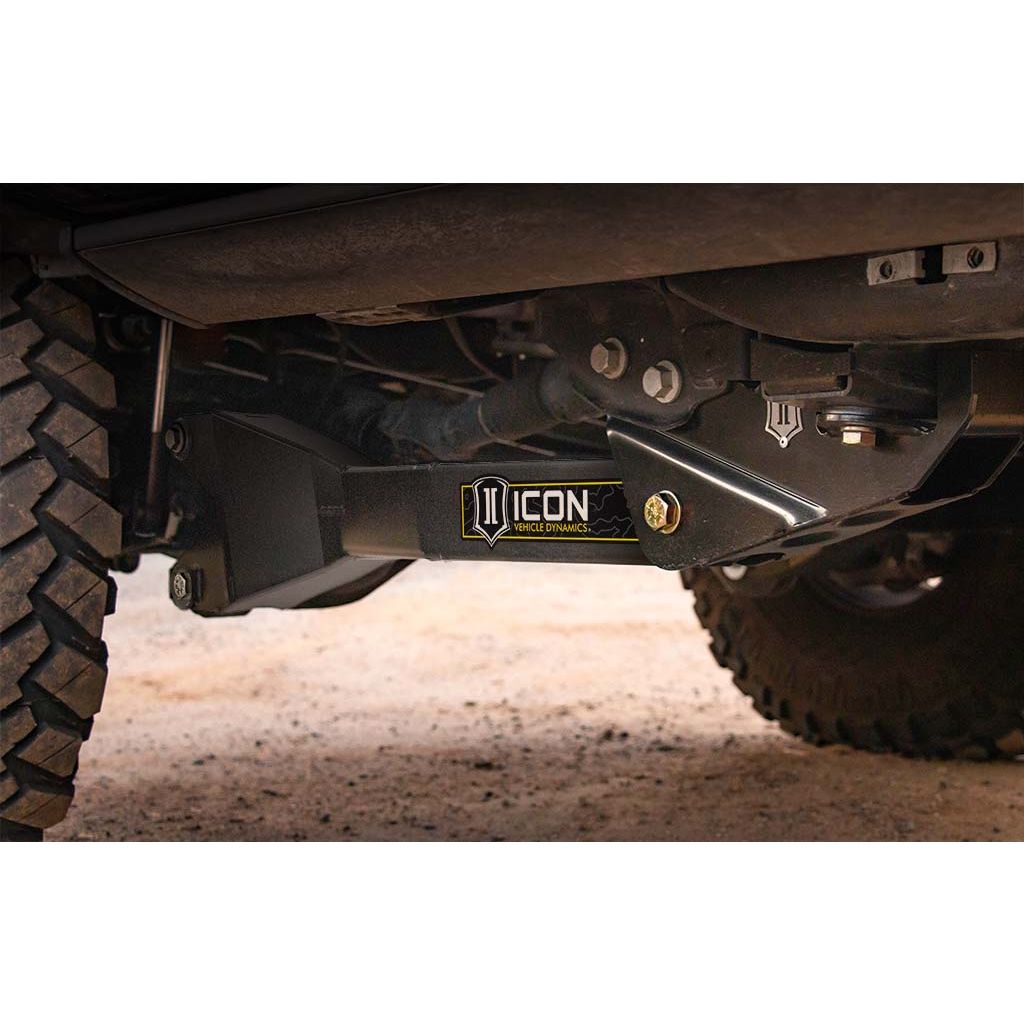

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Additional Attributes:

GTIN: 00840103419022
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 7
Leaf Spring Leaf Quantity: 7
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Dual Rate Coil Springs: Yes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset
