08-16 FSD 4WD 4.5-9" FRONT SECONDARY 2.5 VS PB

08-16 FSD 4WD 4.5-9″ FRONT SECONDARY 2.5 VS PB

$2,014.03

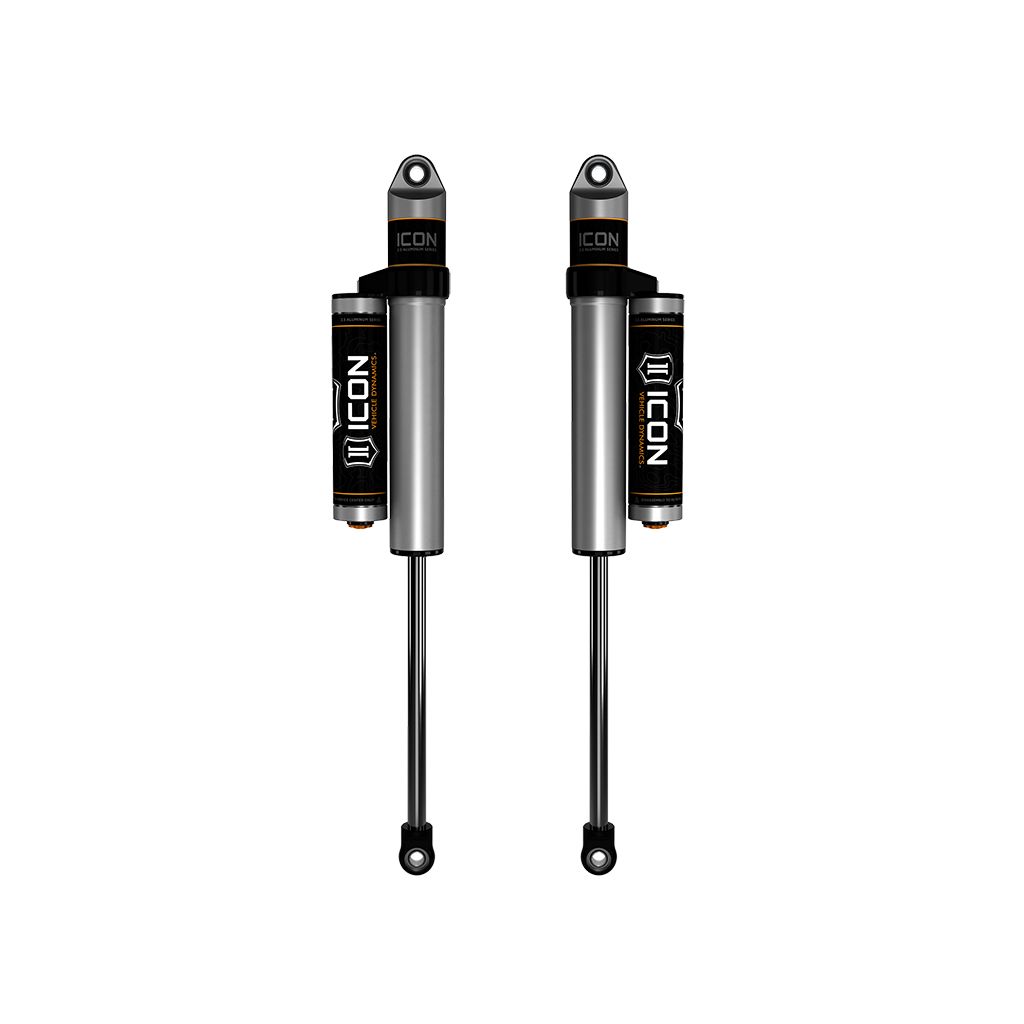

2008-2016 FSD 4WD 4.5-9" FRONT SECONDARY 2.5 VS PIGGYBACK SHOCK PAIR

  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 100% Revalveable
  • Nitrogen charged monotube design with piggyback reservoir
  • 100% Rebuildable
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Double-sealed Schrader caps reduce risk of damage
  • 6061 aircraft grade aluminum CNC machined components
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
SKU: FRDK-61710P Category:

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. If you are looking for a more user-defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Additional Attributes:

GTIN: 00840103405407
Mounting Hardware Included: Yes
Grade Type: Performance
Tube Outside Diameter: 2.5
Adjustable: NO
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Center of Eylet
Lower Mount Type: EYELET
Upper Mount Type: EYELET
Boot Included: NO
Gas Charged: Yes
Bore Diameter: 2.25
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Silver
Cylinder Material: Aluminum
Damping Type: Oil
External Reservoir: Yes
Service Parts: 191015 – 10″ FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Shaft Material: Chrome

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 39.0000 x 10.0000 x 9.0000 inches
Weight: 25.0000 PG

Weight 11.34 kg
Dimensions 39.0000 × 10.0000 × 9.0000 cm
