Coilover Spring and Shock Assembly

08-UP LC 200 3.0 VS RR CDCV CO KIT

$6,706.63

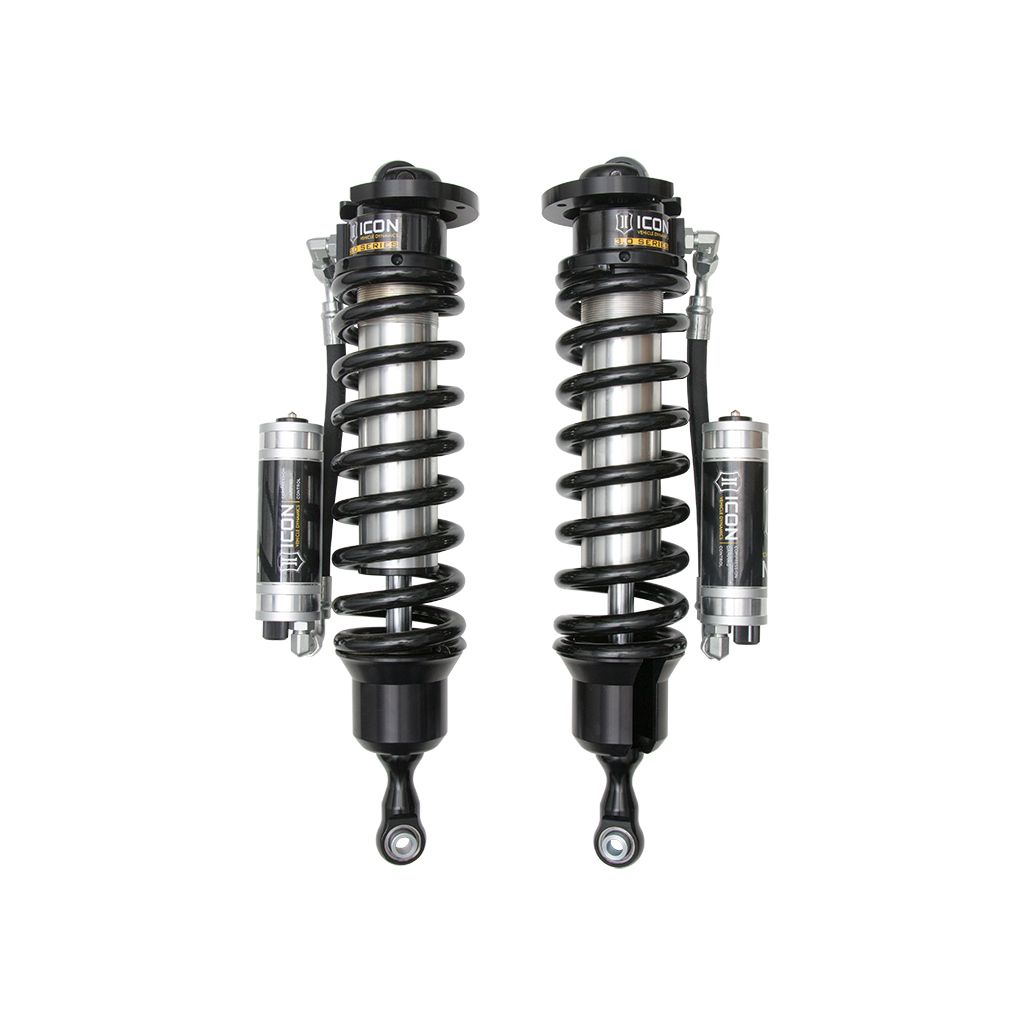

2008-UP LC 200 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT

Significant increase in damping ability for excellent performance in extreme off-road conditions
Heavy duty 1” CNC machined shock shafts

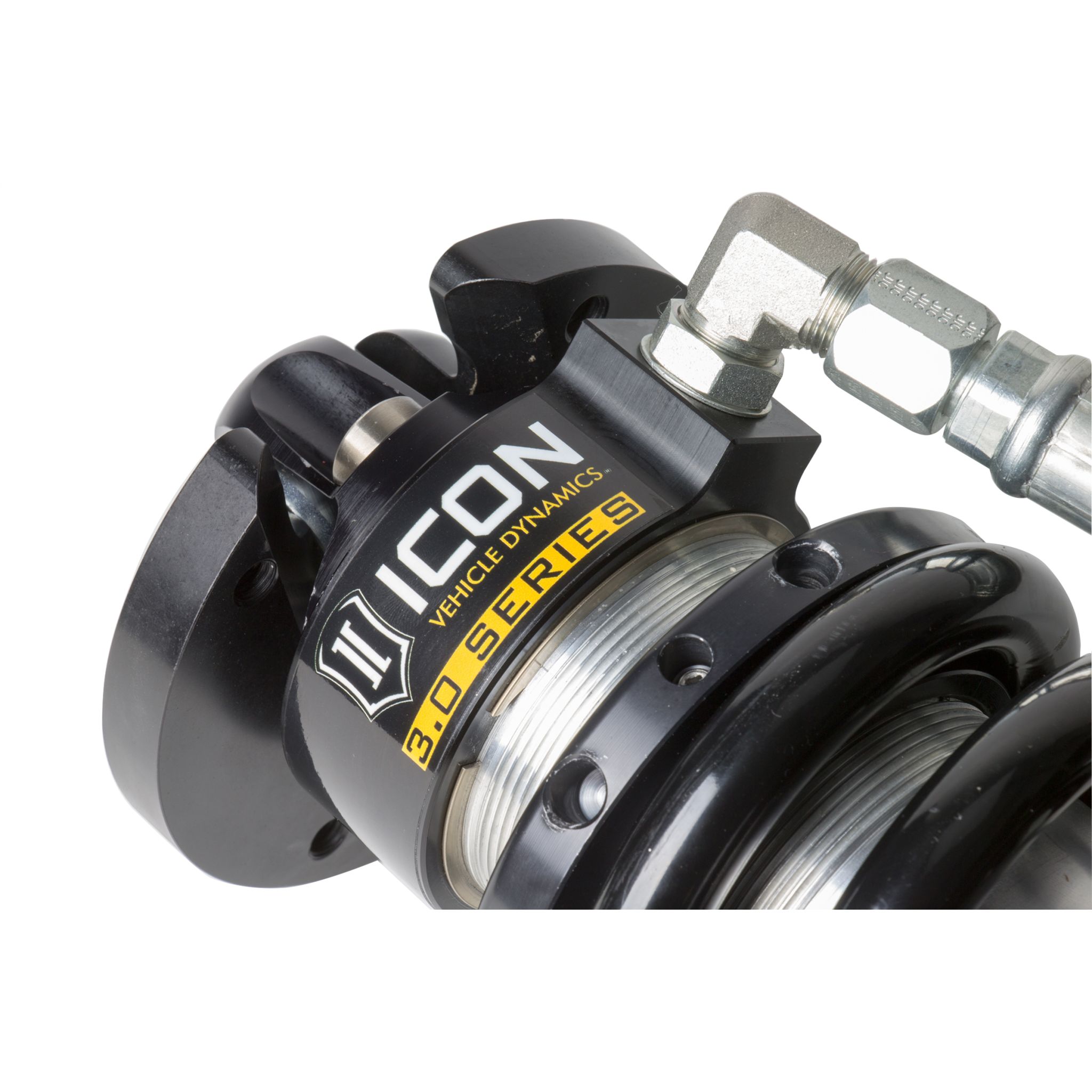

Multi stage CAD plated shock body with hard anodized piston and top cap
Fully serviceable
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
Adjustable coilovers provide 2.25-3.5” of front lift height
Direct bolt-in to OEM shock location makes for an easy install
ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
High quality ICON-engineered Eibach springs offer increased travel and performance
PTFE lined COM12 spherical bearings ensure maximum strength and durability

SKU: FRDK-58765 Category: Coilover Spring and Shock Assembly

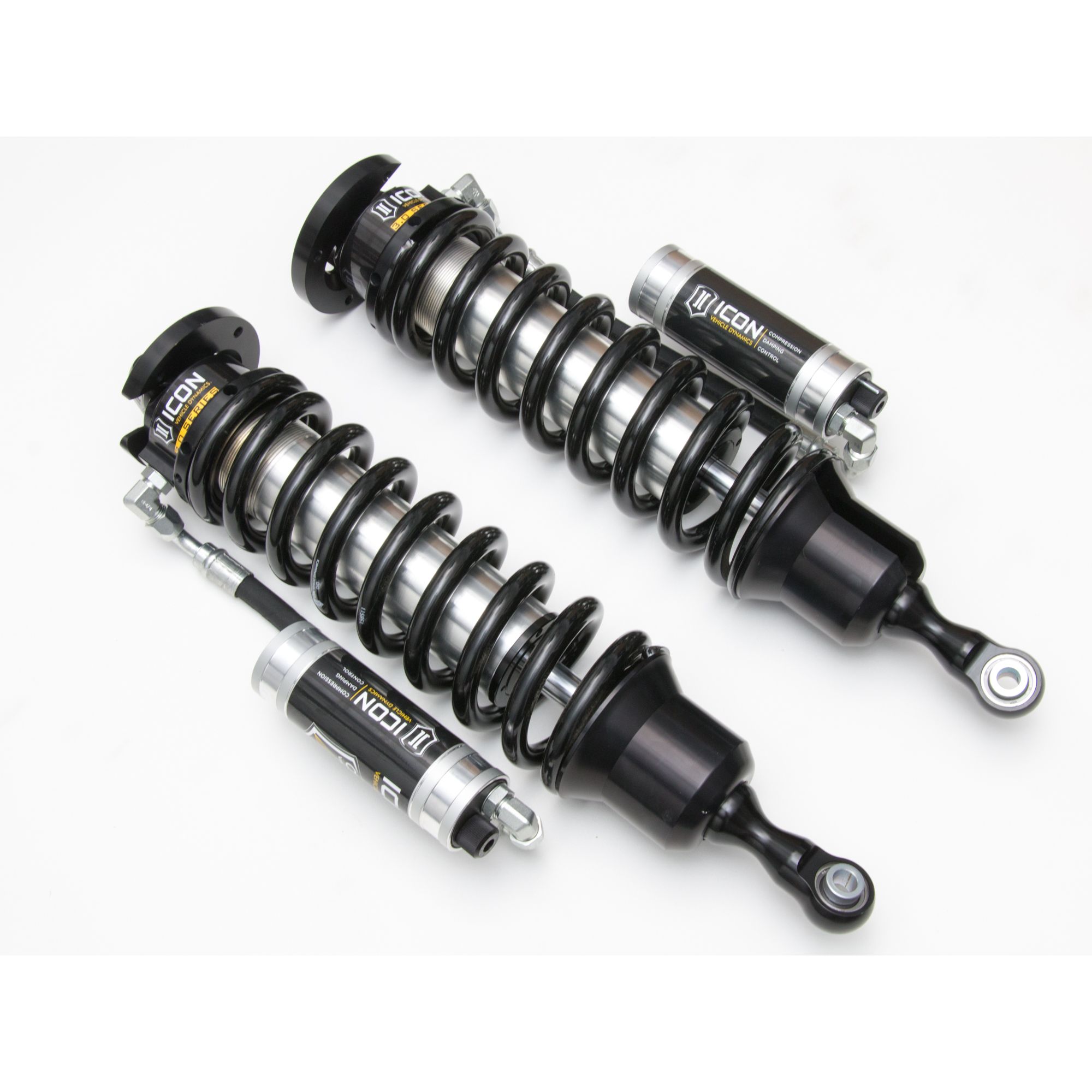

These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 2.25-3.5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as Eibach coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.

Additional Attributes:

GTIN: 00840103404585
Spring Material: Steel
Adjustable Height: Yes
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Eyelet
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Body Diameter: 3
Adjustable Damping: Yes
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191010 – ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
Adjustable: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
Material: Steel
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 34″ x 10.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 1
Spring Color: Black
