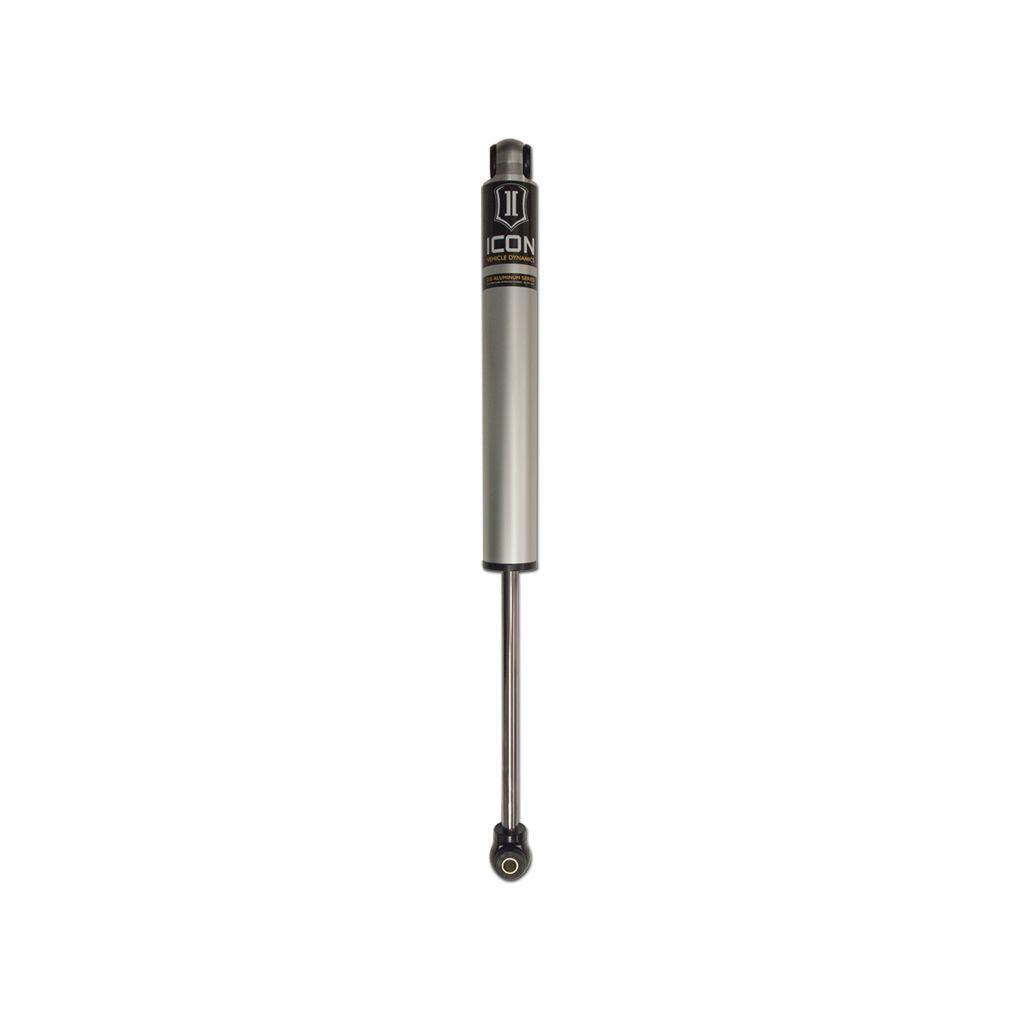

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Additional Attributes:
GTIN: 00840103400846
Valving Type: Digressive
Adjustable Compression: No
Adjustable Ride Height: No
Self-Leveling: No
Active or Passive Suspension: Passive
Maximum Ride Height Raising Distance: 3
Rod Diameter: .625
Body Color: Gray
Color: Black
Finish: Anodized
Shaft Material: Chrome
Mounting Hardware Included: No
Cylinder Outside Diameter: 2
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Absorber Body End Measuring Point: CENTER OF EYELET
Lower Mount Type: EYELET
Upper Mount Type: EYELET
Boot Included: NO
Gas Charged: Yes
Cylinder Color: Gray
Body Diameter: 2
Body Material: Aluminum
Adjustable Rebound: No
Dust Shield Included: No
Internal Rebound Spring: No
Coil Spring Insulator(s) Included: No
Includes Bump Stop: No
Hydraulic Lockout: No
Shock Absorber Bore Size: 1.75
Internal Rebound Bumper: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 614700 – 2.0 SHOCK BOOT KIT (EACH)
Adjustable Damping: No
Attributed Description: ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 16.600 IN; Fully Open Length: 27.05 IN; Shock Stroke: 10.45 IN; Travel Length: 10.45 IN
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: NO
Configuration: Performance
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Damping Type: Oil
Dust Boot Included: No
Dust Shield: NO
External Reservoir: No
Material: Aluminum
Quantity: 1
Remote Reservoir: NO
Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 0.625
Suspension Type: Spring
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 40.0000 x 3.0000 x 3.0000 inches
Weight: 4.0000 PG
