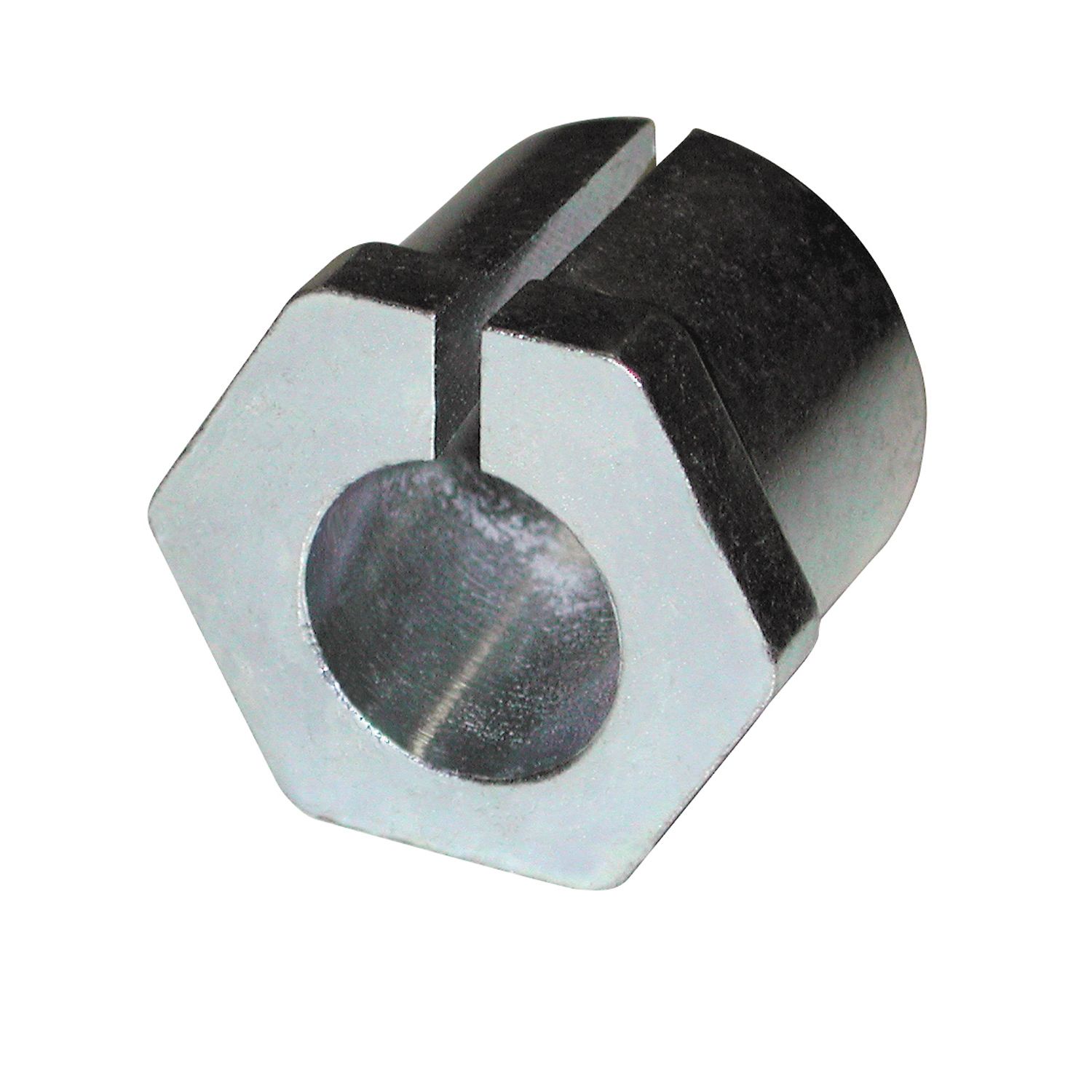

This sleeve will easily change Camber and/or Caster 1.50° on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23199) to determine the required change, then install the correct degree sleeve. Note: Sleeves adjust to a smaller degree on Ford & Mazda 4WD light truck/SUV vehicles.
Additional Attributes:
GTIN: 00082642231868
Material: Steel
Color: Silver
Inside Diameter: 21.25
Outside Diameter: 36
Height: 32
Universal Or Specific Fit: Specific
Grade Type: Standard Replacement
Adjustable: Yes
Hardware Included: No
Add-On: 77880, 87175, 23180, 23181, 23182, 23183, 23184, 23185, 23187, 23188, 23189, 23190, 23191, 23192, 23193, 23194, 23199, 24180
Adjustment Range 4WD: 1.1
Adjustment Range RWD: 1.5
California Proposition 65: WARNING: This product contains chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.
Prop 65: Y
Extended Information:
Emissions : 1
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 3 x 1.63 x 2.25 inches
Weight: 0.38 PG
