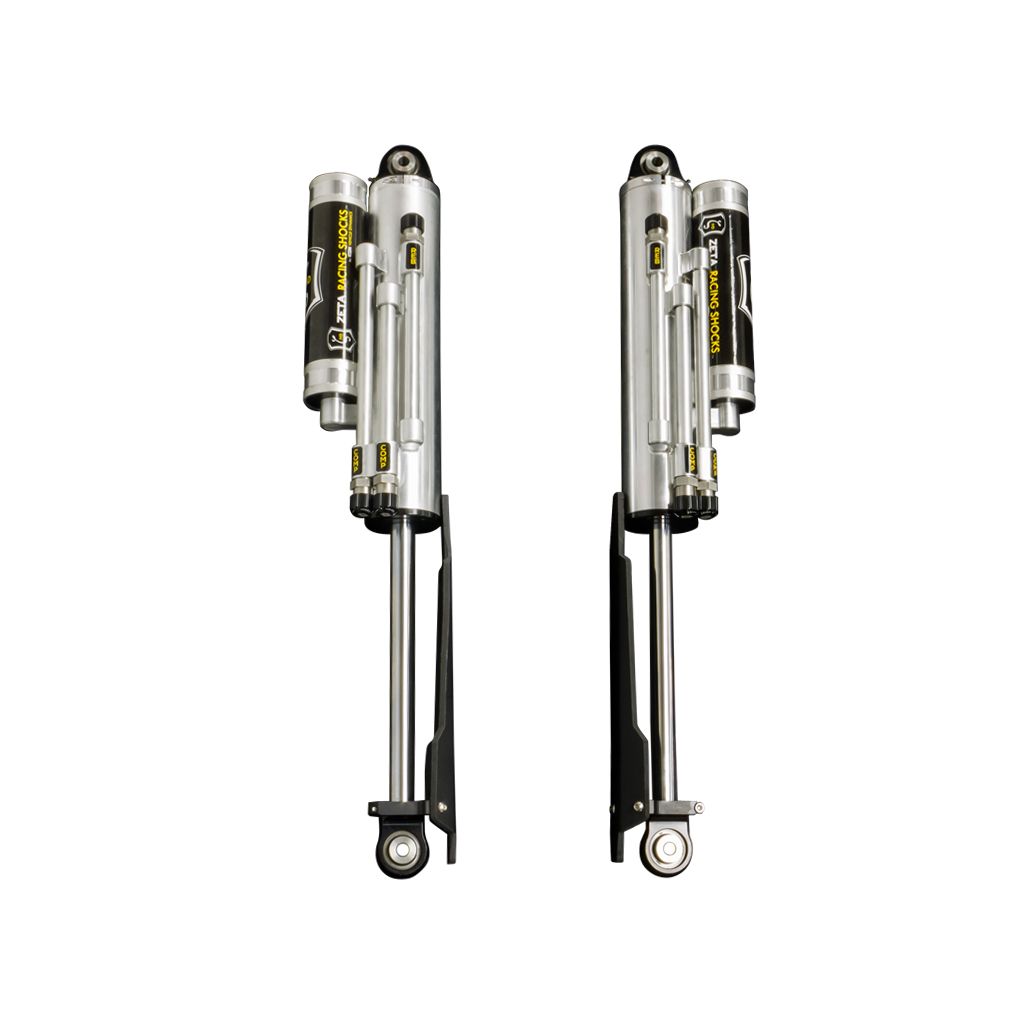

Our Rear Zeta Ford SVT Raptor Shocks are a true 3.0” (inside and out), three tube External Bypass shock. These are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature dampened valve stops for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the “Easy-to-Adjust” knobs and the replaceable bypass tubes. The “Easy to Adjust” Hi Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds from plush off-road performance to firm on road manners for extra control while driving the mountains or towing a trailer. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.
Additional Attributes:
GTIN: 00840103407180
Mounting Hardware Included: Yes
Grade Type: Performance
Tube Outside Diameter: 3
Adjustable: Yes
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Center of Eylet
Lower Mount Type: Eyelet
Upper Mount Type: Eyelet
Boot Included: yes
Gas Charged: Yes
Bore Diameter: 2.75
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Silver
Cylinder Material: Steel
Damping Type: Oil
External Reservoir: Yes
Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 1
Shaft Material: Chrome
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 38.0000 x 13.0000 x 8.0000 inches
Weight: 57.0000 PG
I95200_REVA
