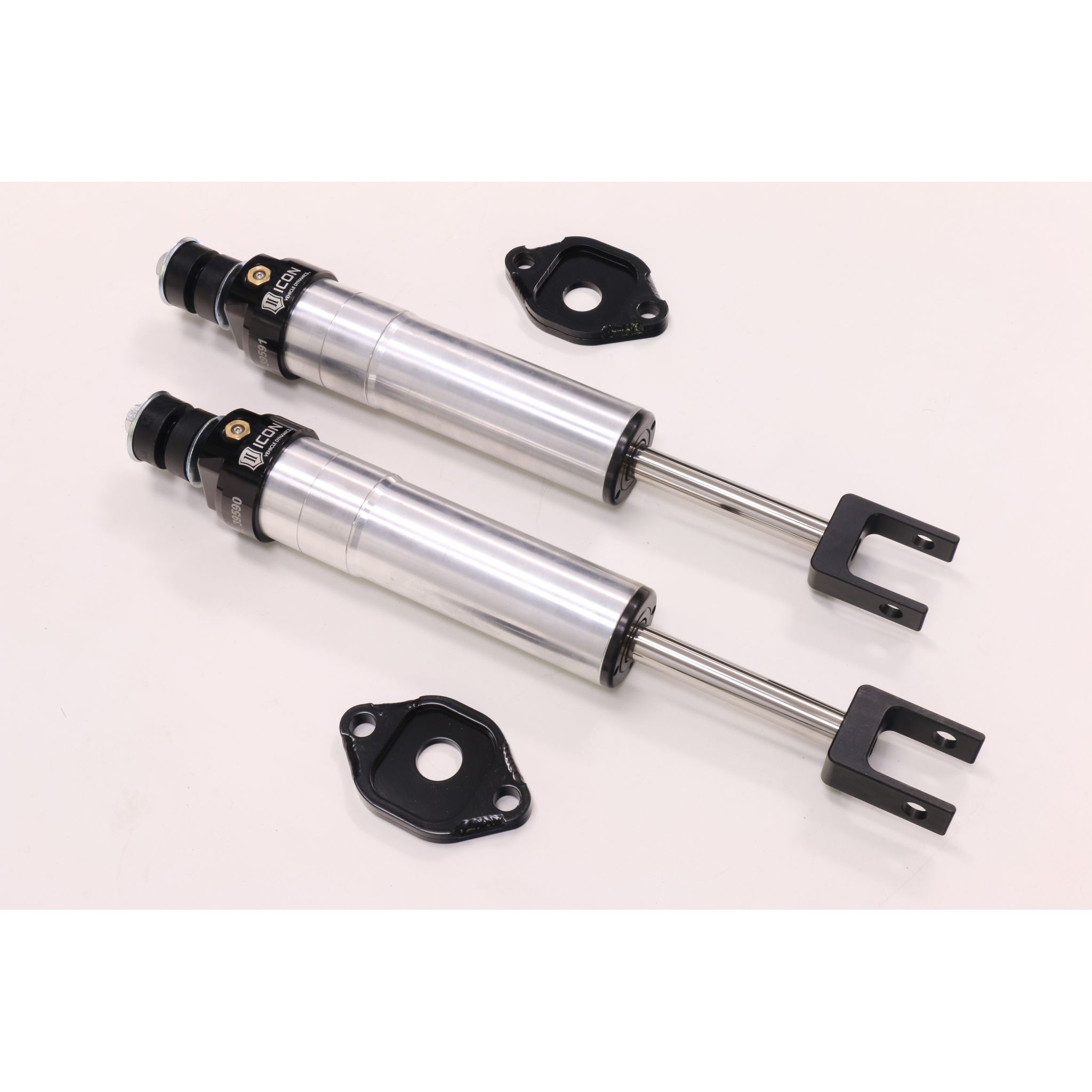

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.
Additional Attributes:
GTIN: 00840103406183
Mounting Hardware Included: Yes
Grade Type: Performance
Tube Outside Diameter: 2.5
Adjustable: NO
Shock Absorber Rod End Measuring Point: Center of Clevis Holes
Shock Absorber Body End Measuring Point: Shoulder of Stem
Lower Mount Type: Clevis
Upper Mount Type: Stem
Boot Included: NO
Gas Charged: Yes
Bore Diameter: 2.25
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Attributed Description: ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: No; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 13.46 IN; Fully Open Length: 18.79 IN; Gas Charged: Yes; Lower Mount Type: Clevis; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Center of Clevis Holes; Stroke Length Front: 5.3 IN; Tube Outside Diameter: 2.50 IN; Upper Mount Type: Stem; External Reservoir: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Silver
Cylinder Material: Steel
Damping Type: Oil
External Reservoir: NO
Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
Shaft Diameter: 0.875
Shaft Material: Chrome
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 27.0000 x 12.0000 x 6.0000 inches
Weight: 22.0000 PG
I77606P_REVA
