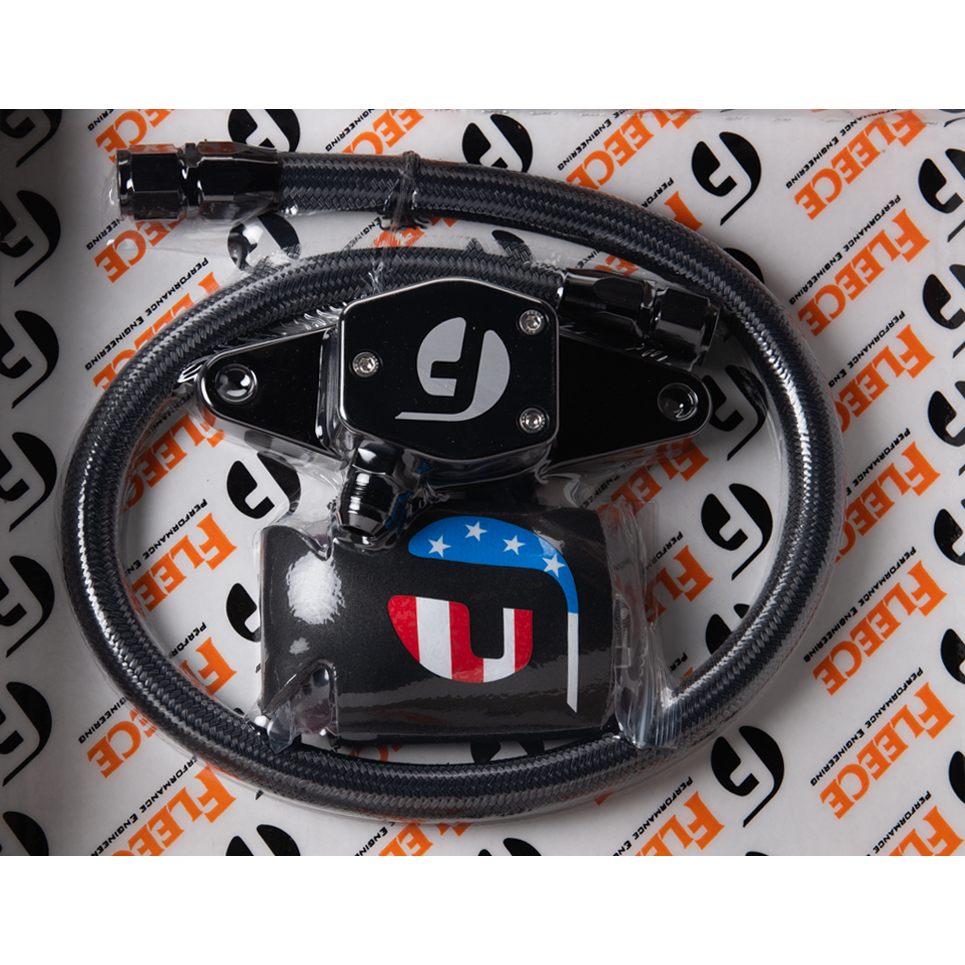

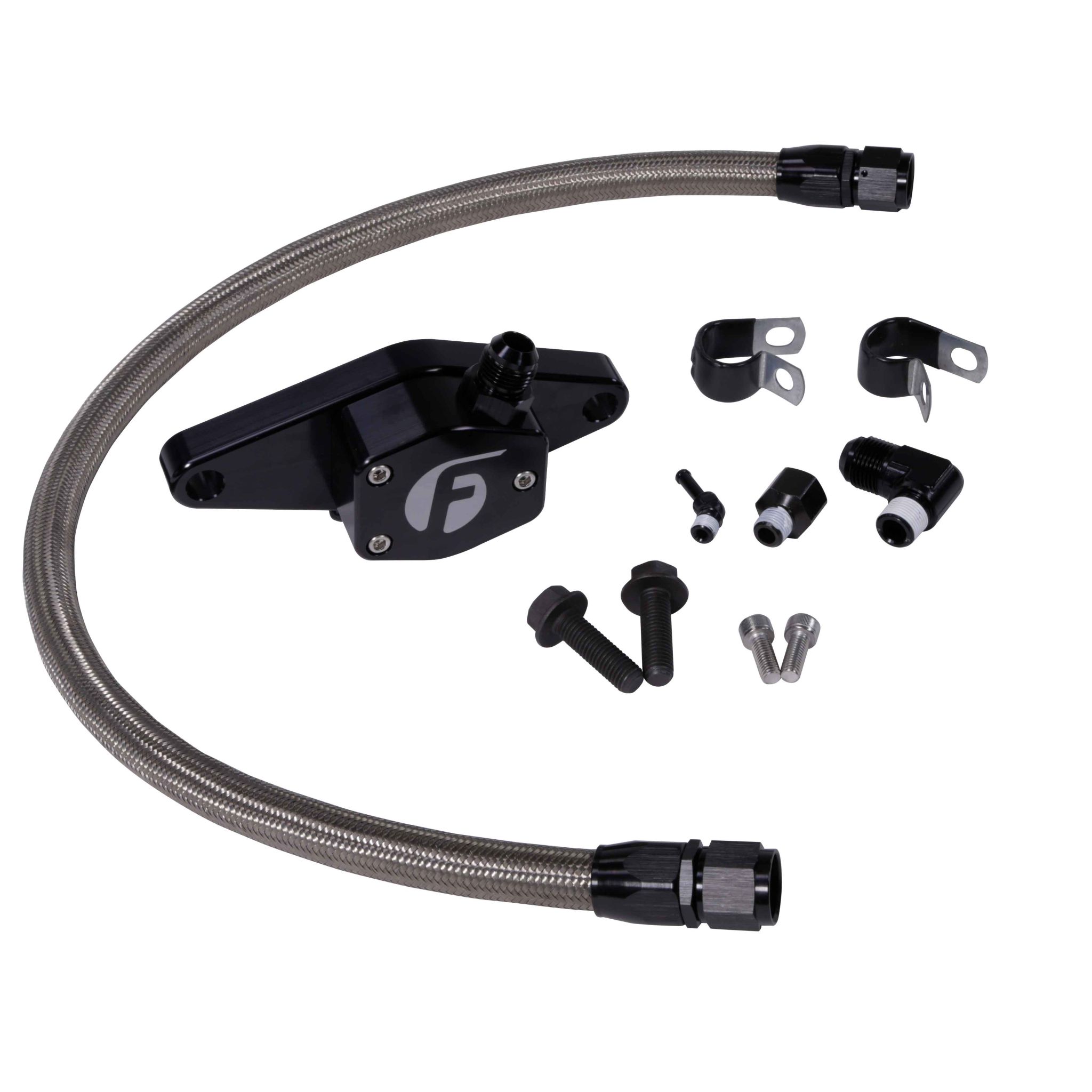

Name: 12V Coolant Bypass Kit (1994-1998) w/ Stainless Steel Braided Line
SKU: FQWW-FPE-CLNTBYPS-CUMMINS-12V-SS
Availability: InStock

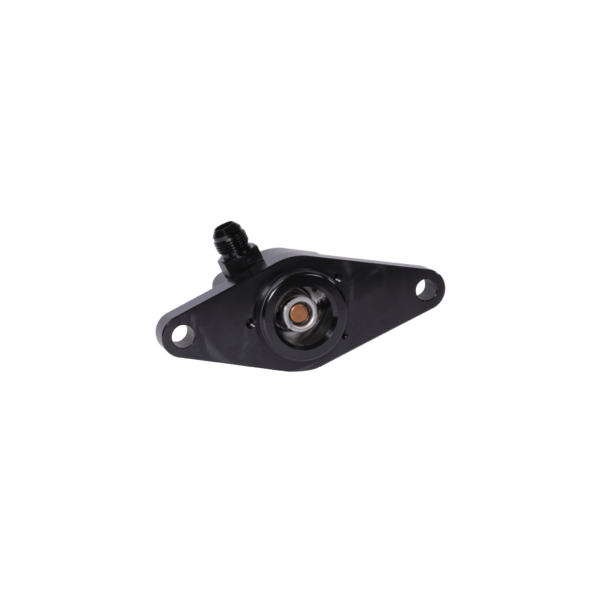

Increased Coolant Flow, Decreased Coolant TemperaturesThe rear cylinders on the 5.9/6.7L Cummins suffer from a lack of coolant flow, and therefore, experience the highest coolant temperatures. This can cause excessive pressure to build in the cooling system, especially the rear of the block and blow out freeze plugs externally, or the smaller diameter plugs under the valve cover, leading to a failure. Our coolant bypass kit adds a secondary thermostat, that unlike other brands, works based on temperature instead of excessive pressure. This solves the problem before pressure becomes an issue by ensuring consistent temperatures across all six cylinders.Benefits:Lowers coolant temperature at the rear cylindersEnsures consistent temperatures across all cylindersPrevents damaging coolant pressure build upComplete kit comes with braided hose and AN O-ring fittings to ensure a leak-free installation. Kits for MY 2003+ include billet hose brackets.Why do I need a Fleece Coolant Bypass?One of the biggest issues on the 5.9/6.7L Cummins is the coolant flow problem to the rear cylinders. This can cause catastrophic failure or blow outs of the freeze plugs in an over-temperature / over-pressure condition. The Fleece Coolant Bypass is one of the most important additions you make to improve the reliability and longevity of the Cummins platform.
