17-19 FORD F250/F350 4.5" STAGE 4 SUSPENSION SYSTEM W RADIUS ARM

17-19 FORD F250/F350 4.5″ STAGE 4 SUSPENSION SYSTEM W RADIUS ARM

$11,983.33

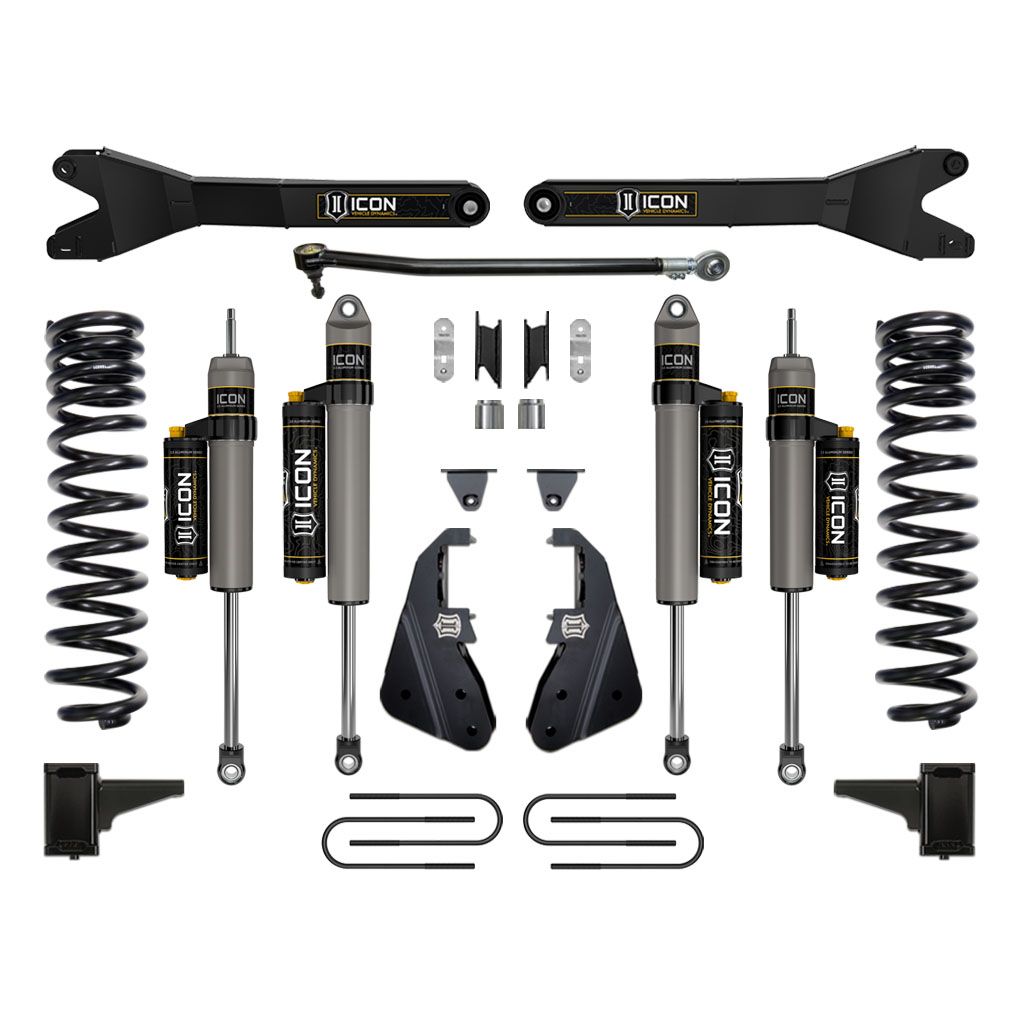

2017-2019 FORD F-250/F-350 SUPER DUTY 4.5" LIFT STAGE 4 SUSPENSION SYSTEM WITH RADIUS ARM

Fits 2017-2019 F250 / F350 4WD applications
Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
ICON shocks feature vehicle specific tune for superior performance and ride quality
ICON CDC Valve allows for 10 clicks of quick and easy compression adjustability
Shocks are fully rebuildable and revalvable
Corrosion resistant anodized aluminum shock bodies with 7/8″ shafts (2.5 Aluminum Series shocks)
FK Rod End bearings provide extended longevity and minimal deflection
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Approximately 50% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain

SKU: FRDK-K64514R Category: Suspension Lift Kit

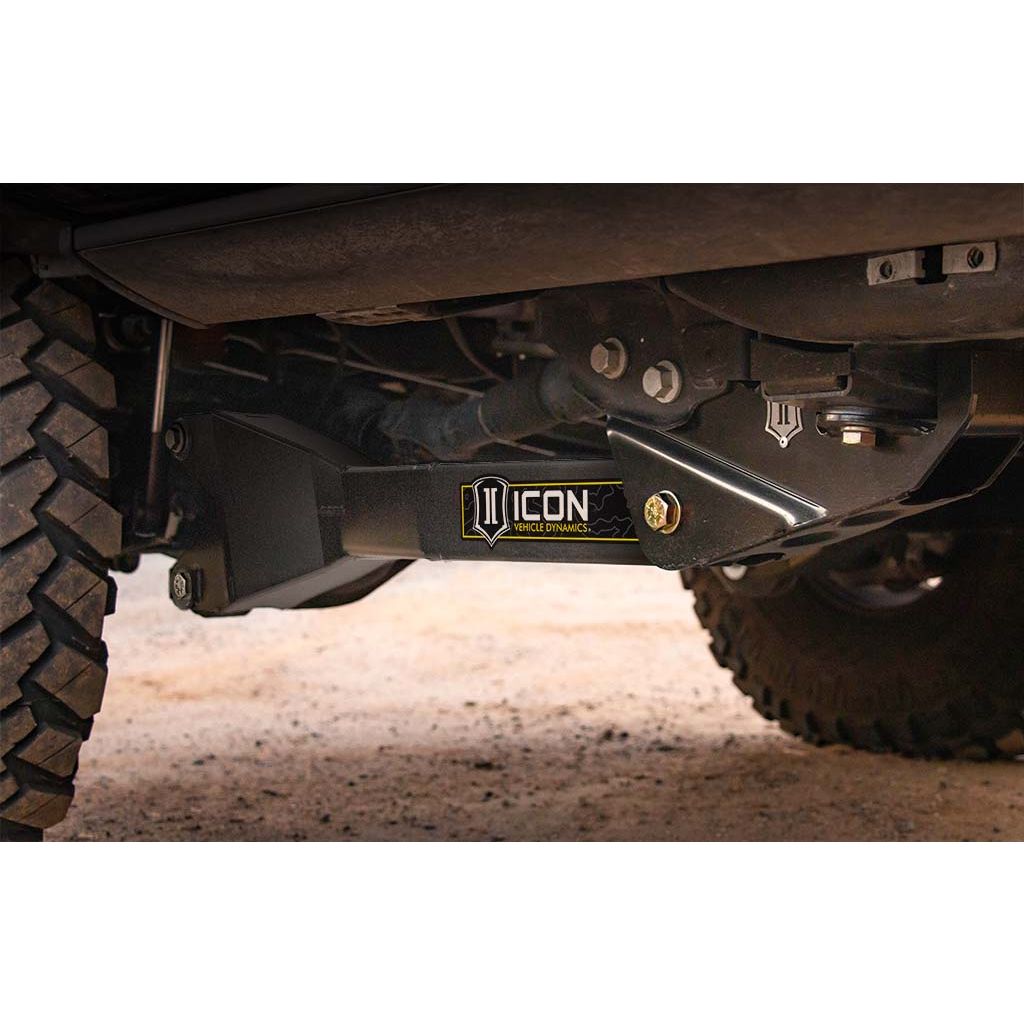

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Additional Attributes:

GTIN: 00840103418643
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 4.5
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Dual Rate Coil Springs: Yes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset
