17-20 RAPTOR FRONT 3.0 VS RR CDCV COILOVER KIT

Coilover Spring and Shock Assembly

17-20 RAPTOR FRONT 3.0 VS RR CDCV COILOVER KIT

$6,439.67

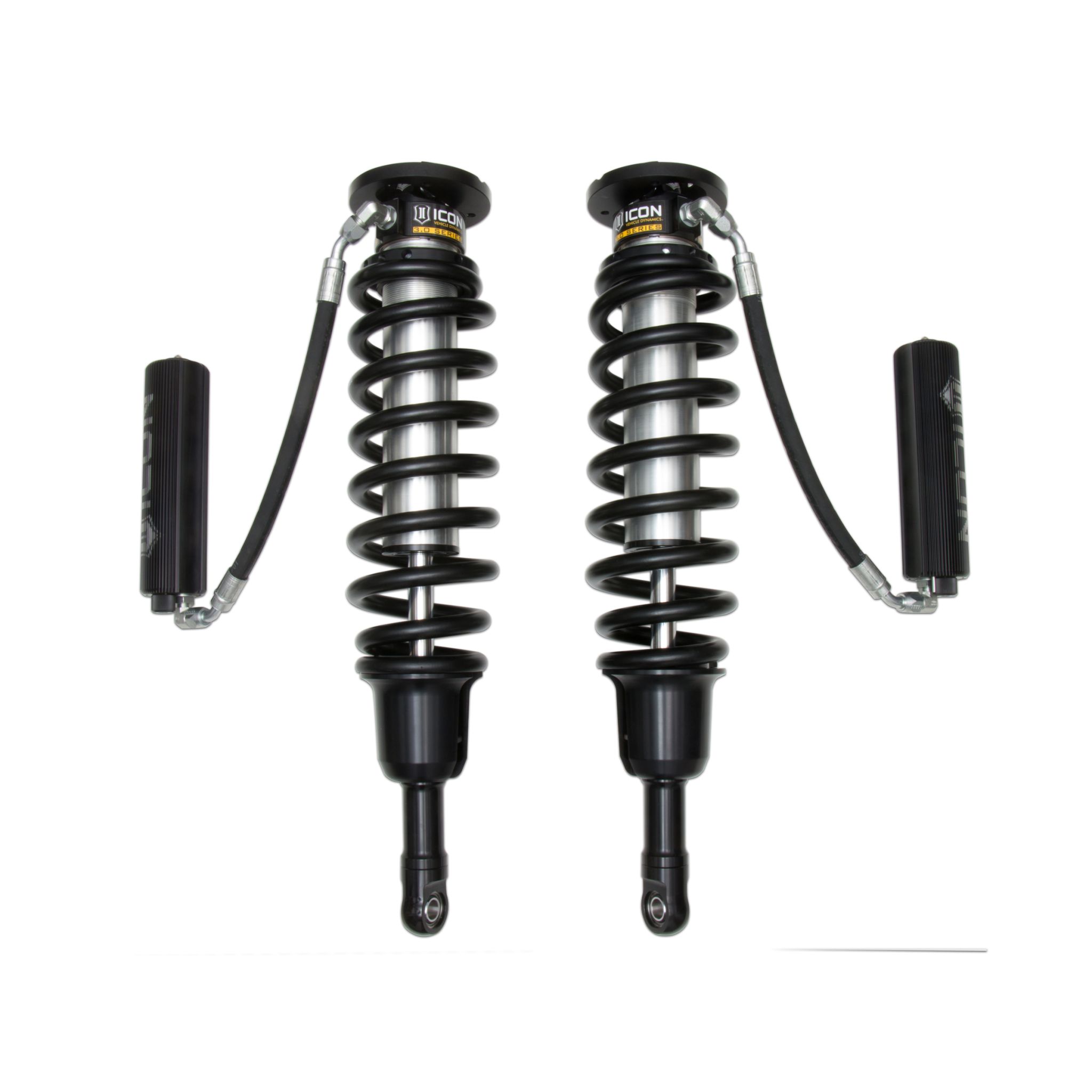

2017-2020 FORD RAPTOR FRONT 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT

Adjustable coilovers yield 1-3” of front lift height
Heavy duty CNC machined 1” shock shafts
FK Rod End COM12 spherical bearings ensure maximum strength and durability
CAD plated shock body with hard anodized piston and top cap
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life

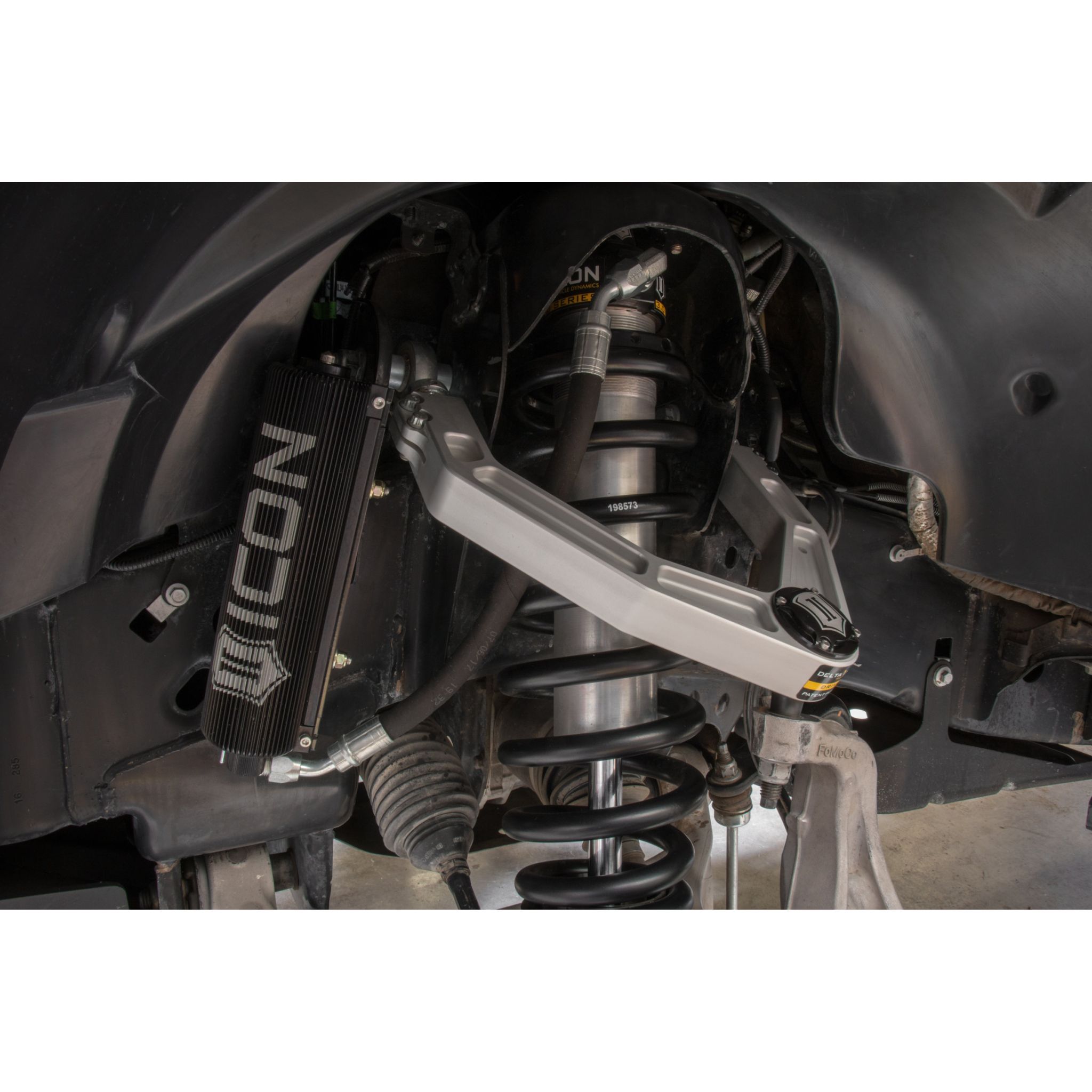

Bolt-in design makes for an easy install into OEM shock location
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
Superior low speed control reduces body roll and increases on-road stability
Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel

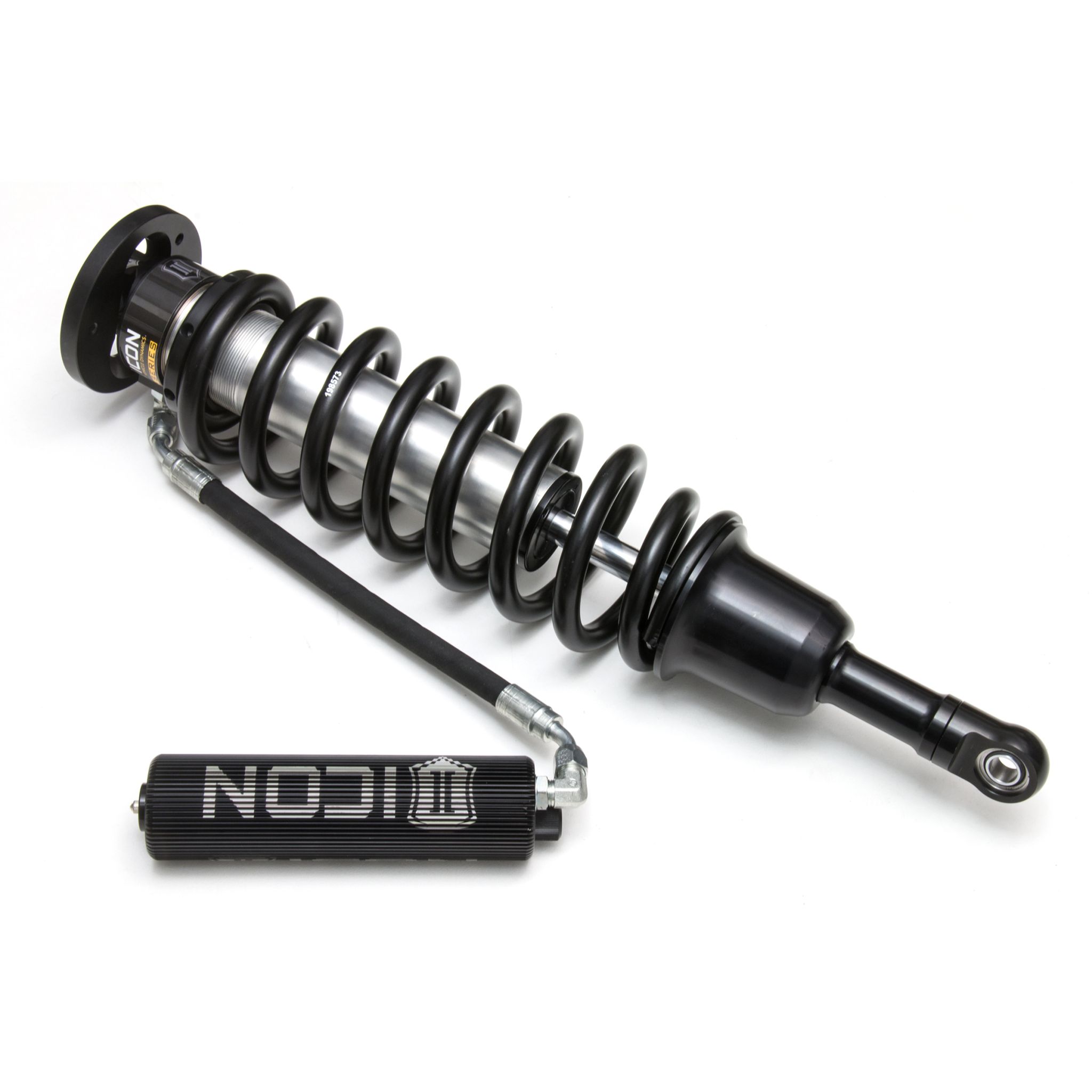

10″ finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
Barreled coil spring design maximizes travel and provides more efficient packaging
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage

SKU: FRDK-95002 Category: Coilover Spring and Shock Assembly

The front end geometry of the Gen 2 Raptor was found to be fairly similar to the previous model truck, however the shock mounting points had been moved higher up on the chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging. The vehicle-specific valving featured in these shocks and the all new ICON-engineered spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON’s multi-stage hydraulic “Bump Zone” adds to the performance capability by providing an exponential increase in damping ability during the last 40% of compression travel for superior bottom-out resistance. In the ride zone, these 3.0 Series coilovers see a 50% increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. New 10” finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area for enhanced cooling and consistent damping. The addition of ICON’s CDC Valve technology provides 10 settings of damping adjustment allowing the end-user to adjust the “feel” of the shocks for different terrains and vehicle cargo configurations. All of these features work together to deliver the perfect blend of on-road comfort and off-road performance.

Additional Attributes:

GTIN: 00840103407128
Spring Material: Steel
Adjustable Height: Yes
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Eyelet
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Body Diameter: 3
Adjustable Damping: Yes
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35 x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 1
Spring Color: Black
