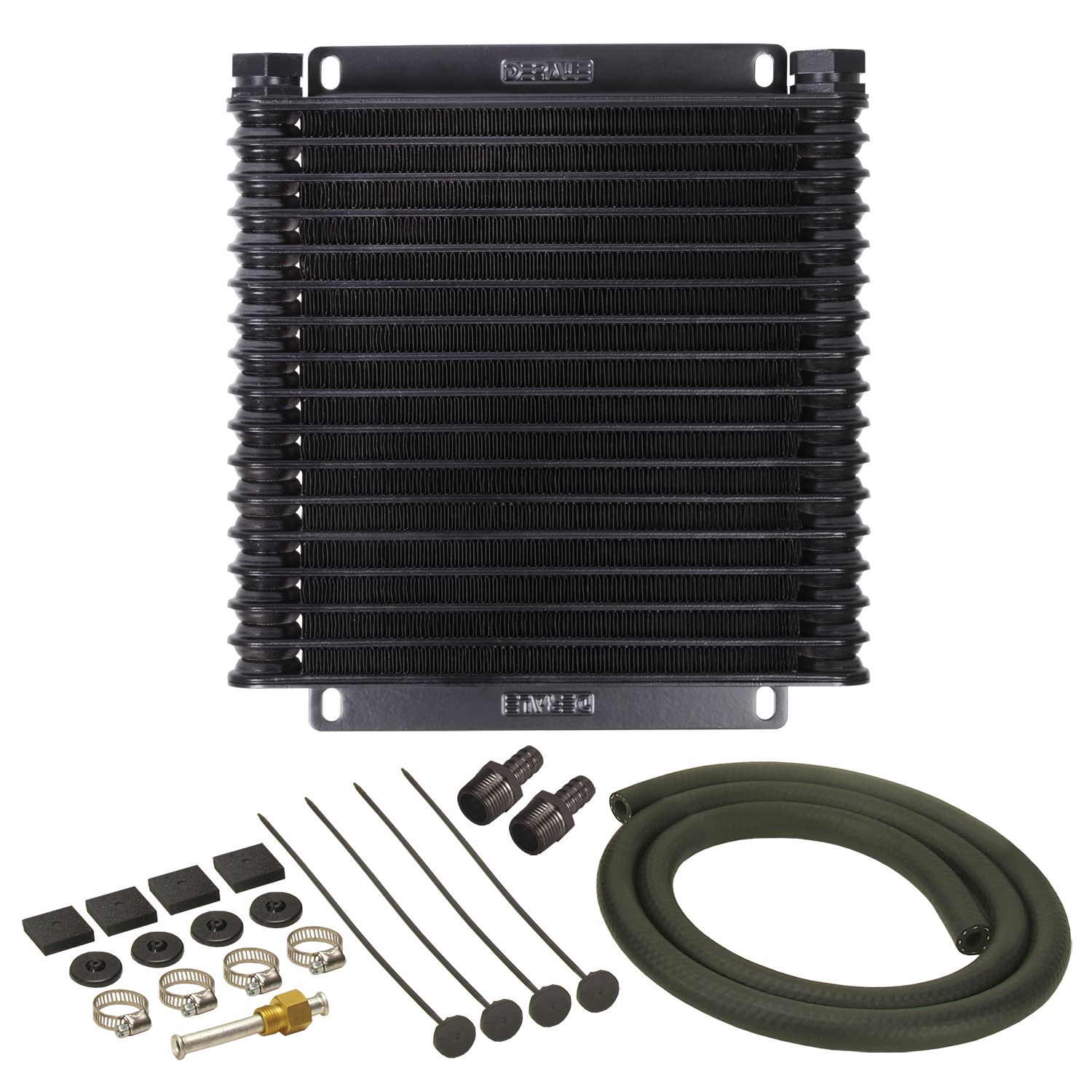

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Additional Attributes:
GTIN: 00083277136146
BTU: 23500
Color: Black
Cooler style: Plate & Fin
Depth: 1-1/4
Fitting size: 3/8 barb
GVW: 24000
Height: 10-5/8
Hose length: 4
Hose size: 3/8
Inlet dim: 8-1/2
Inlet size: 1/2 NPT female
Material: Aluminum
Mounting: 6-11/16 x 9-13/16
Prop 65: Yes
Width: 9-3/4
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 18.625 x 13 x 2.125 inches
Weight: 4.6875 PG
13614
