2000-2009 Honda S2000 Oil Cooler Kit

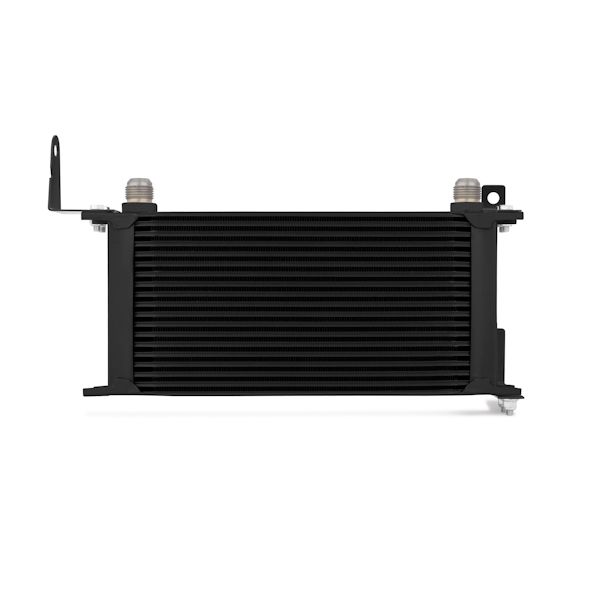

Whether you are carving corners with the top down or blasting down the drag strip, your high-revving S2000 needs a reliable and effective cooling system.Mishimoto is proud to release an all-new, direct-fit oil cooler kit engineered and designed specifically for the AP1 and AP2 Honda S2000.This kit utilizes a large 19-row oil cooler mounted in the front grill for optimum airflow and cooling capability.It includes preassembled stainless steel lines and S2000-specific mounting brackets for a painless and clean installation.The Mishimoto oil cooler kit increases overall oil capacity by .6 qt and significantly reduces temperatures while maintaining minimal pressure drop.This kit is available with a thermostatic sandwich plate for additional oil-temperature control, and your choice of a stealth black or silver cooler.As with all our products, this kit includes the Mishimoto lifetime warranty.

Additional Attributes:

GTIN: 00748666008670
Install Difficulty: 3
OptionLabel: Silver Cooler, Non-Thermostatic
SellingPoint01: Dramatic temperature drop
SellingPoint02: Minimal pressure loss
SellingPoint03: Direct fit for the Honda S2000
SellingPoint04: Thermostatic option available
SellingPoint05: This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
SellingPoint06: Stealth black and sleek silver cooler options
SellingPoint07: Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Caution: It is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Chassis Codes: AP1–AP2
TechSpec Core Construction: N/A
TechSpec Core Height (in): 5.43
TechSpec Core Length (in): 11
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: F20C–F22C
TechSpec Fluid Capacity (qts): N/A

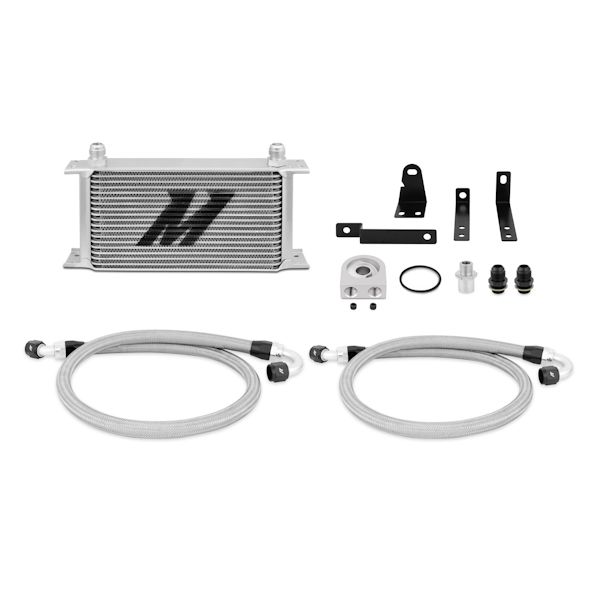

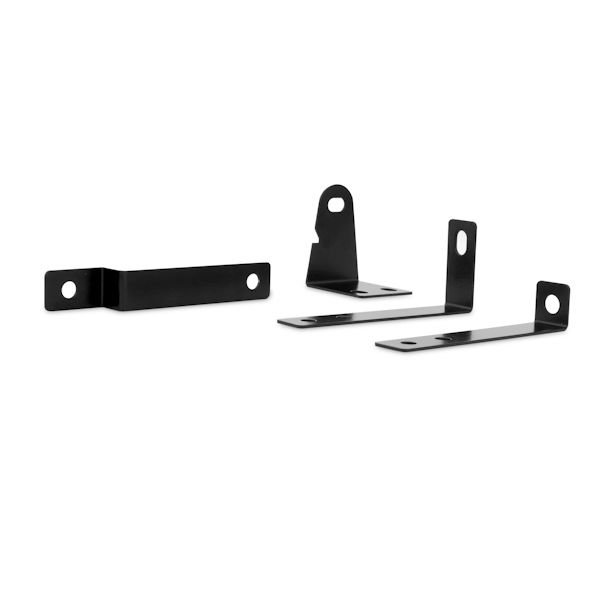

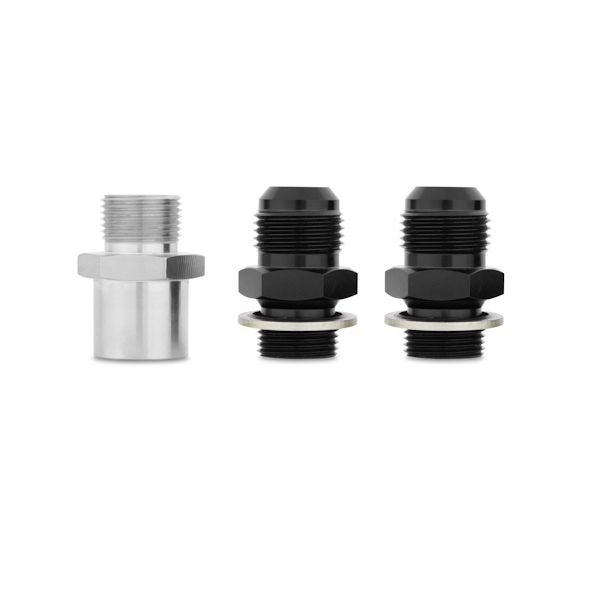

TechSpec Includes: Application Specific Mounting Brackets–19-Row Oil Cooler–2ft, 11in Stainless Steel Braided Hose with 45 Degree and 150 Degree -10AN Fittings–3ft, 8in Stainless Steel Braided Hose with 45 Degree and 150 Degree -10AN Fittings–M20 Thermostatic Sandwich Plate–M20 Stainless Steel Sandwich Plate Adapter–M20 x -10AN Straight Fittings–Mounting Hardware Set–Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Note: AP1 S2000 vehicles will require minor bending of A/C lines for cooler and bracket installation.
TechSpec Outlet: N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: 19

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 18 x 8 x 14.5 inches
Weight: 12 PG
