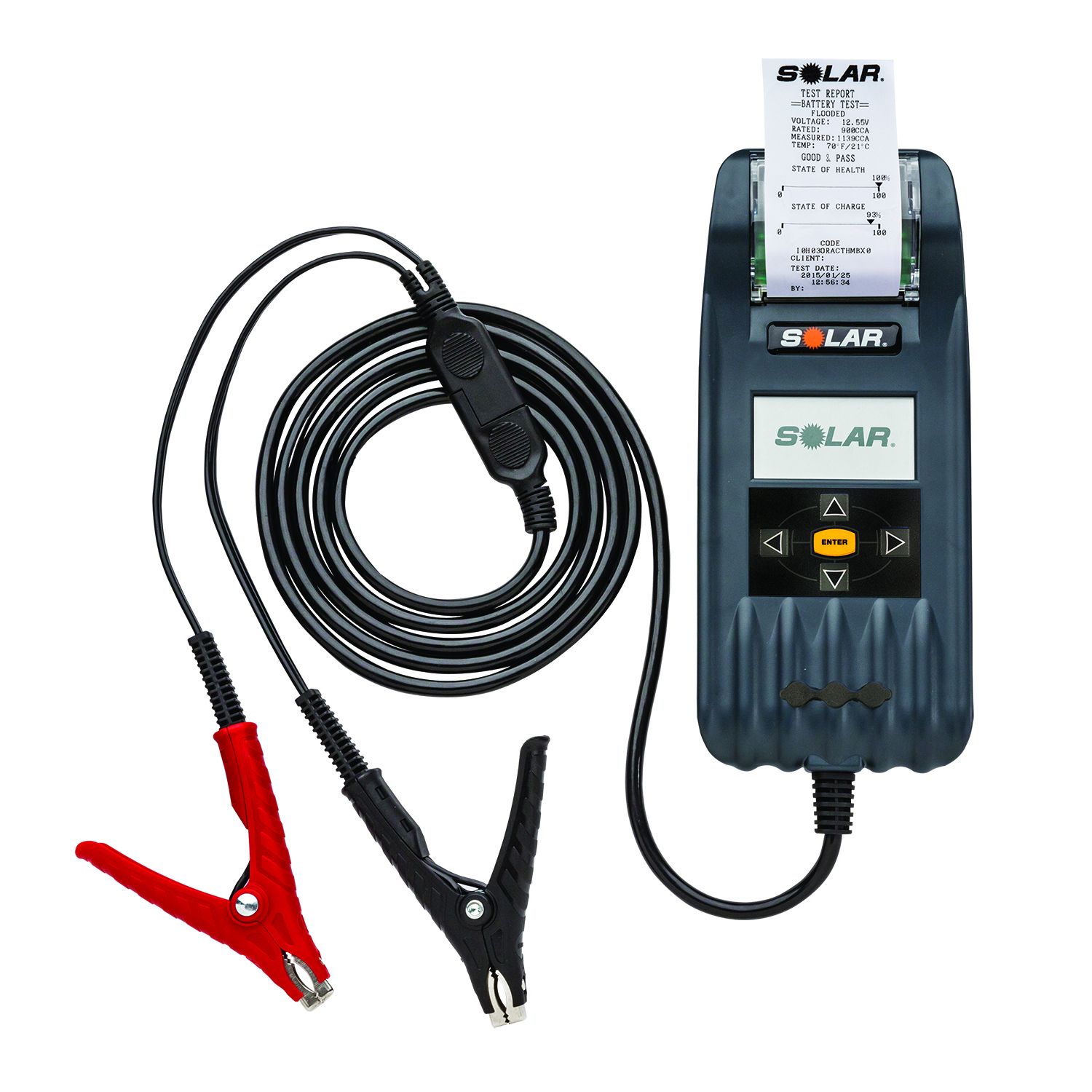

40-3000 CCA Electronic Battery & System Tester w/Printer, USB, Software

The BA427 offers a complete testing solution for 6 and 12 Volt batteries and 12 and 24 Volt charging systems. With an operating range down to 1.5V, it can even test discharged batteries and features a testing capacity to 3000 CCA. Compatible with a wide variety of battery types, the BA427 is designed to test flooded, AGM flat plate, spiral wound, gel cell, start-stop AGM and enhanced flooded batteries. It features 10' cable leads, replaceable cable ends, temperature compensation and a convenient storage case. Compared to the BA327, it expands the testing range in several ways: 1.) it tests batteries to 3000 CCA (vs 2000), 2.) it allows for the attachment of a volt probe or amp clamp to expand the diagnostic capabilities of the tester, and 3.) it features a USB port to connect to a PC equipped with our battery management software for ongoing tracking of test results. It features an LCD display that offers a high level of detail throughout the testing process and improved viewing in bright sunlight. It also features reverse polarity protection to avoid damage from reverse hookups and over-voltage protection.

Additional Attributes:

GTIN: 00010271024469
Add-On: N/A
Applicable Battery Voltages: 6/12 Volt
Applicable System Voltage: 12/24 Volt
Battery Types Tested: Flooded, AGM Flat Plate, AGM Spiral, Gel Cell, Start-Stop AGM, Start-Stop Enhanced Flooded
Cable Length: 10′
Cable Termination: Clamps
Display Type: LCD
Operating Voltage Range: 1.5-30V
Over-Voltage Protection: Yes
Prop 65 (C, R or CR): C
Prop 65 – Long Label: Warning – Both Cancer and Reproduction.JPG
Prop 65 – Short Label: WARNING: Cancer – www.p65warnings.ca.gov
Prop 65 Warning Chemical Listing: Vinyl Chloride, Styrene, Acrylonitrile,
Prop 65 Yes/No: Y
Rating Systems: CCA, CA(MCA), EN, IEC, DIN, JIS
Reverse Polarity Protection: Yes
Temperature Compensation: Yes
Testing Capacity: 40-3000
UPC: 10271024469
Warranty: 1 Year Limited
WS1: 1 Year Limited
WS2: TX

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 18.25 x 13.25 x 4.75 inches
Weight: 7 PG
