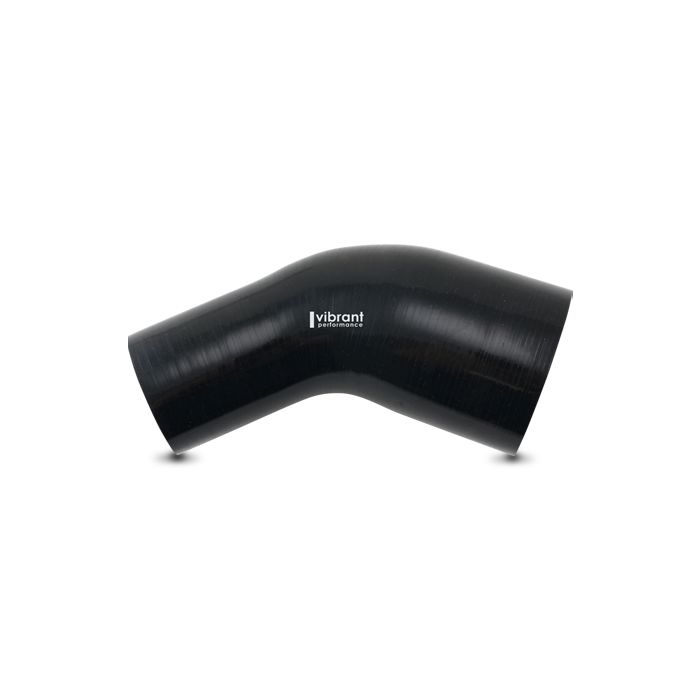

45 Degree Transition Elbow, Hose I.D. – 4.00″ x 3.50″

Vibrant Performance Aramid Reinforced Silicone 45 Degrees Transition Elbows feature High Temperature Resistant Aramid Reinforcement Fabric between each layer of silicone which allows for an impressive Operating Temperature Range of -75 Degrees F to 392 Degrees F (-60 Degrees C to 200 Degrees C). These elbows are intended for use in applications where pressurized tubing and connection points require a tight radius bend and size transition to accommodate the installation of piping in limited space. Not suitable for use with Oil/Fuel.

Additional Attributes:

GTIN: 00690092175436
Add-On: N/A
Centerline Radius: 4
Color: Black
Inlet I.D.: 3.5
Leg Length From Tangent: 4
Maximum Operating Pressure: 18
Outlet I.D.: 4
Prop 65 Yes/No: No
Sale Segment: Silicone Products
Wall Thickness: 0.2
Web Category: 4 Ply Aramid Reinforced Silicone Couplers

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 17.72 x 14.17 x 4.17 inches
Weight: 1.27 PG
