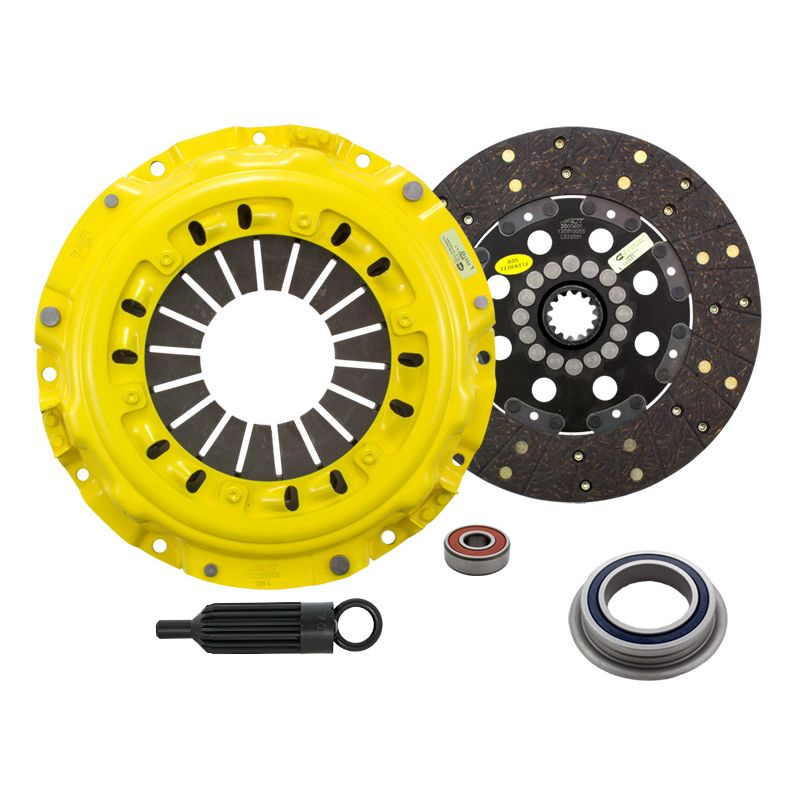

ACT HD/Modified Street Kit

TS4-HDMM kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT modified spring-centered street discs feature premium organic friction material with high copper content for better heat transfer and steel-backed lining for burst strength and durability. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. the heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. Modified street discs provide smooth engagement and quiet operation, with increased strength and reliability.

Additional Attributes:

GTIN: 00842385016166
Clutch Master Cylinder Included: No
Grease Included: Yes
Grade Type: Performance
Pilot Bushing Included: No
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 9.8
Clutch Disc Diameter: 250
Disc Material: Organic
Input Spline Quantity: 14
Input Shaft Diameter: 1.25
Disc Type Sprung Solid: Solid
Pressure Plate Bolts Included: No
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: No
Pilot Bearing Included: Yes
Product Weight (lbs.): 18.6
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Long Label: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No: Yes
Torque Capacity (ft/lbs.): 587
Torque Capacity Over OE: 47%

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 14 x 5 inches
Weight: 22.1 LB

PDF:

ACT_General_Installation_Instructions
