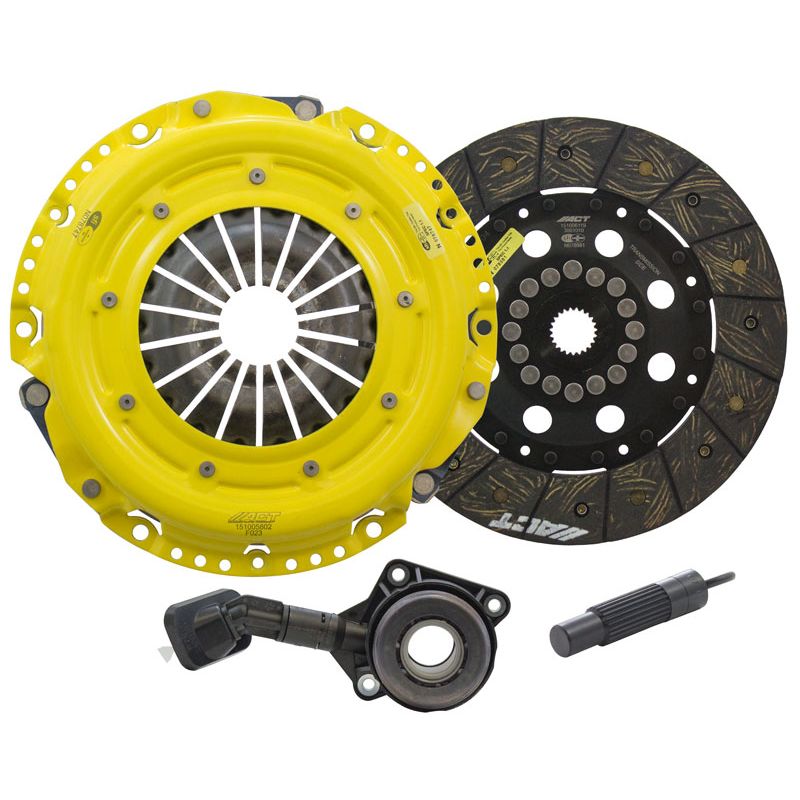

FF2-HDSD kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's street rigid-hub discs provide race-proven performance with street manageability.
Additional Attributes:
GTIN: 00842385024222
Clutch Master Cylinder Included: No
Grease Included: Yes
Grade Type: Performance
Flywheel Included: No
Pilot Bushing Included: No
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 9.4
Clutch Disc Diameter: 240
Disc Material: Organic
Input Spline Quantity: 23
Input Shaft Diameter: 1
Alignment Tool Included: Yes
Disc Type Sprung Solid: Solid
Pressure Plate Bolts Included: Yes
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: No
Pilot Bearing Included: No
Part Fitment Requirement: Designed for use with stock dual-mass flywheel. Pressure plate bolts included (M8-1.25 x 20mm).
Product Weight (lbs.): 15.2
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Long Label: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No: Yes
Torque Capacity (ft/lbs.): 449
Torque Capacity Over OE: 34%
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 14 x 5 inches
Weight: 17.7 LB
ACT_General_Installation_Instructions
