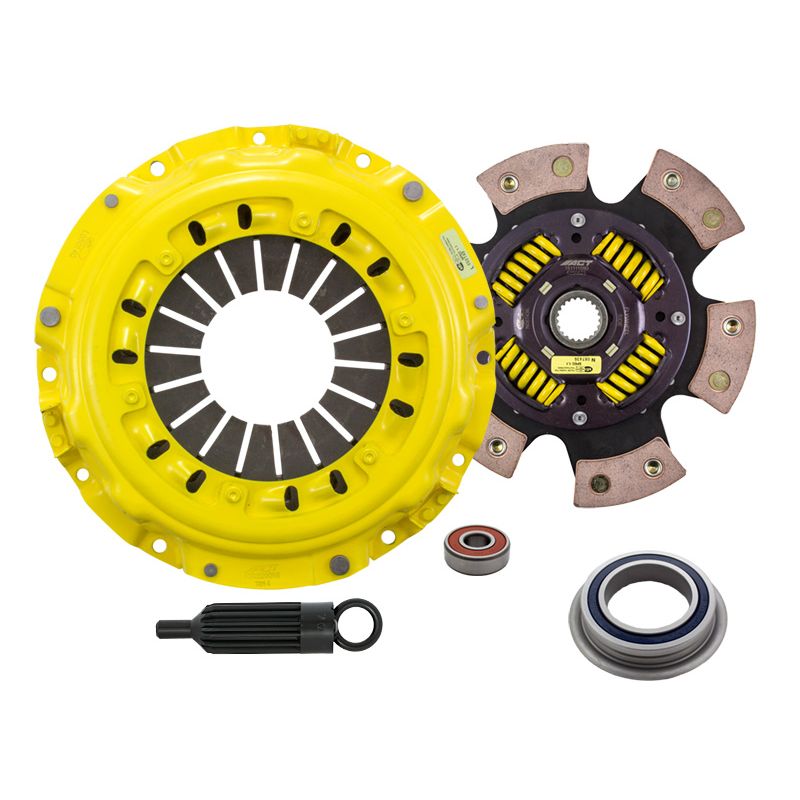

TS4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Additional Attributes:
GTIN: 00842385008291
Clutch Master Cylinder Included: No
Grease Included: Yes
Grade Type: Performance
Pilot Bushing Included: No
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 9.8
Clutch Disc Diameter: 250
Disc Material: Ceramic
Input Spline Quantity: 14
Input Shaft Diameter: 1.25
Disc Type Sprung Solid: Sprung
Pressure Plate Bolts Included: No
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: No
Pilot Bearing Included: Yes
Part Fitment Requirement: Must be used with ACT flywheel for proper clearance (flywheel not included).
Product Weight (lbs.): 20.2
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Long Label: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No: Yes
Torque Capacity (ft/lbs.): 747
Torque Capacity Over OE: 89%
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 14 x 5 inches
Weight: 23.7 LB
EX-INS-EU-0003
