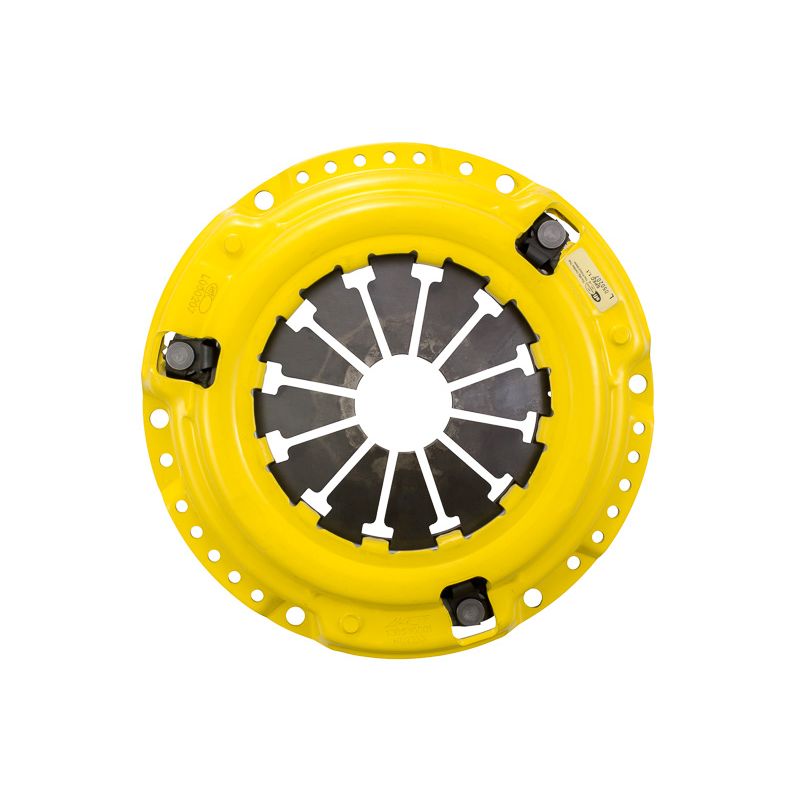

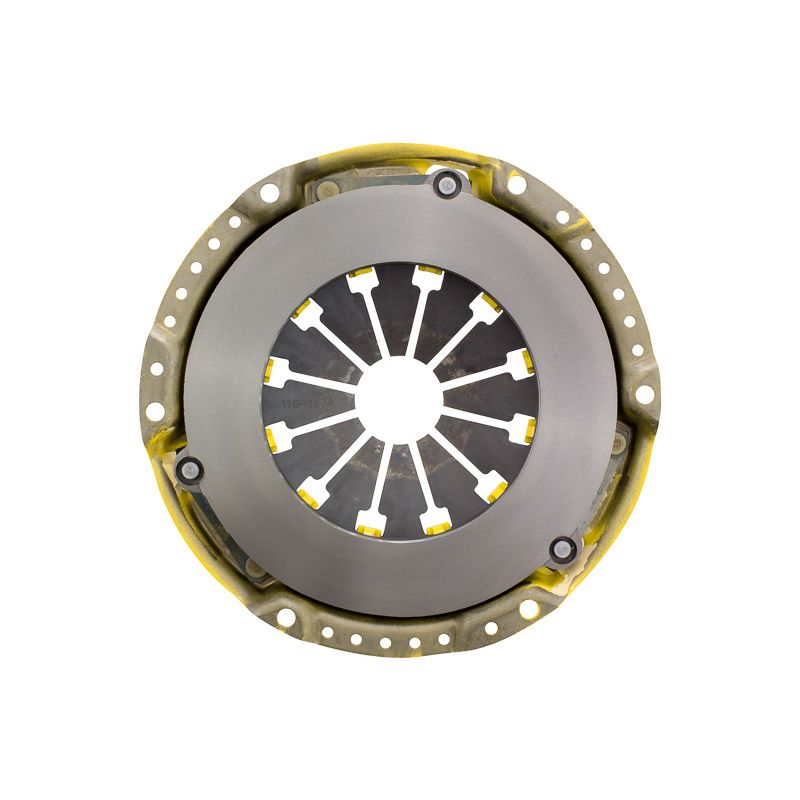

ACT MaXX Xtreme Pressure Plate

H023XX pressure plate uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's MaXX Xtreme pressure plates increase clamp load by 70 to 150 percent. MaXX Xtreme pressure plates are recommended for use with a race disc.

Additional Attributes:

GTIN: 00837055000200
Diameter: 8.3
Diameter: 212
Type: MaXX
Grade Type: Performance
Counterweight Assist: No
Product Weight (lbs.): 7.4
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Long Label: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No: Yes
SFI: 1.1

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 14 x 3 inches
Weight: 9.3 LB

PDF:

ACT_General_Installation_Instructions
