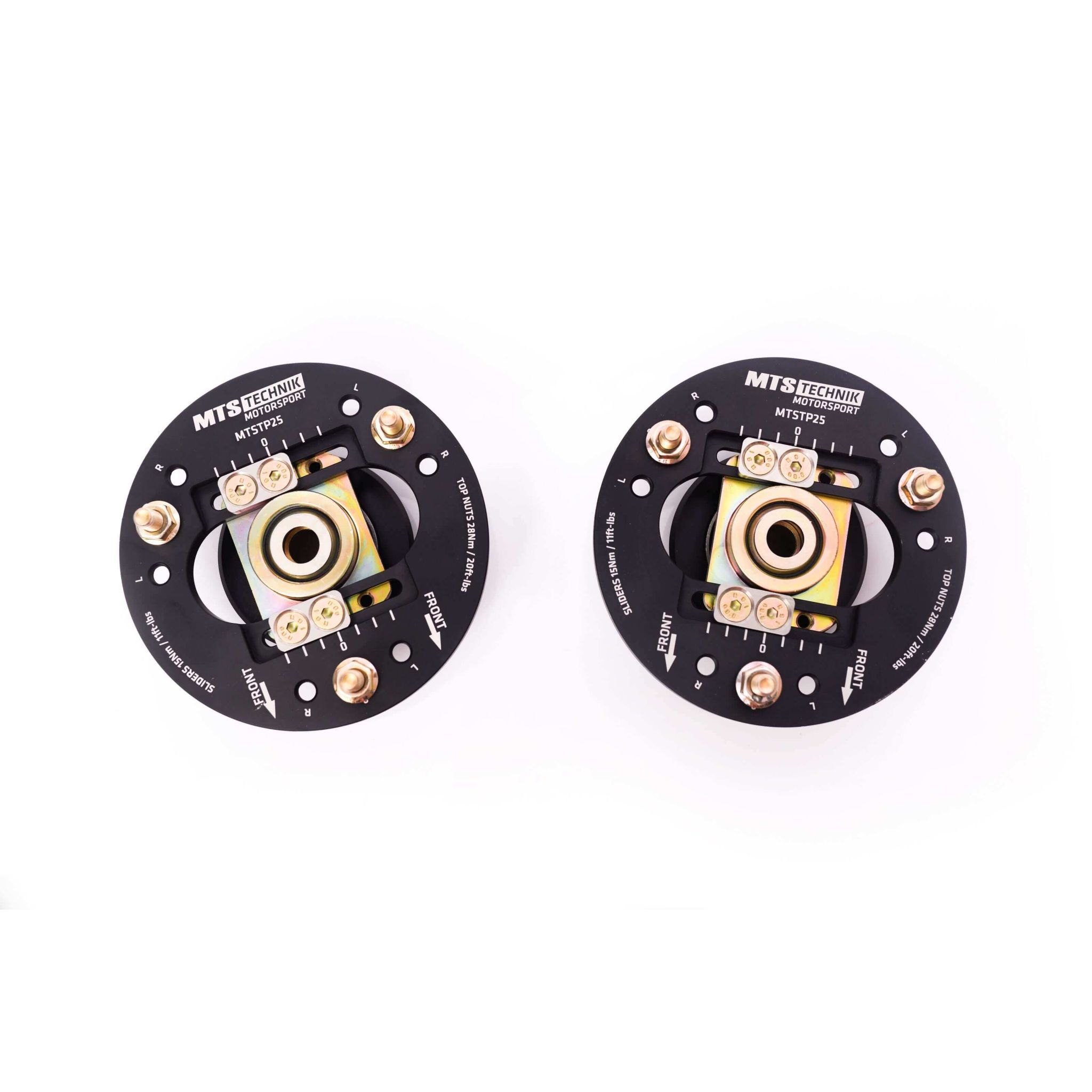

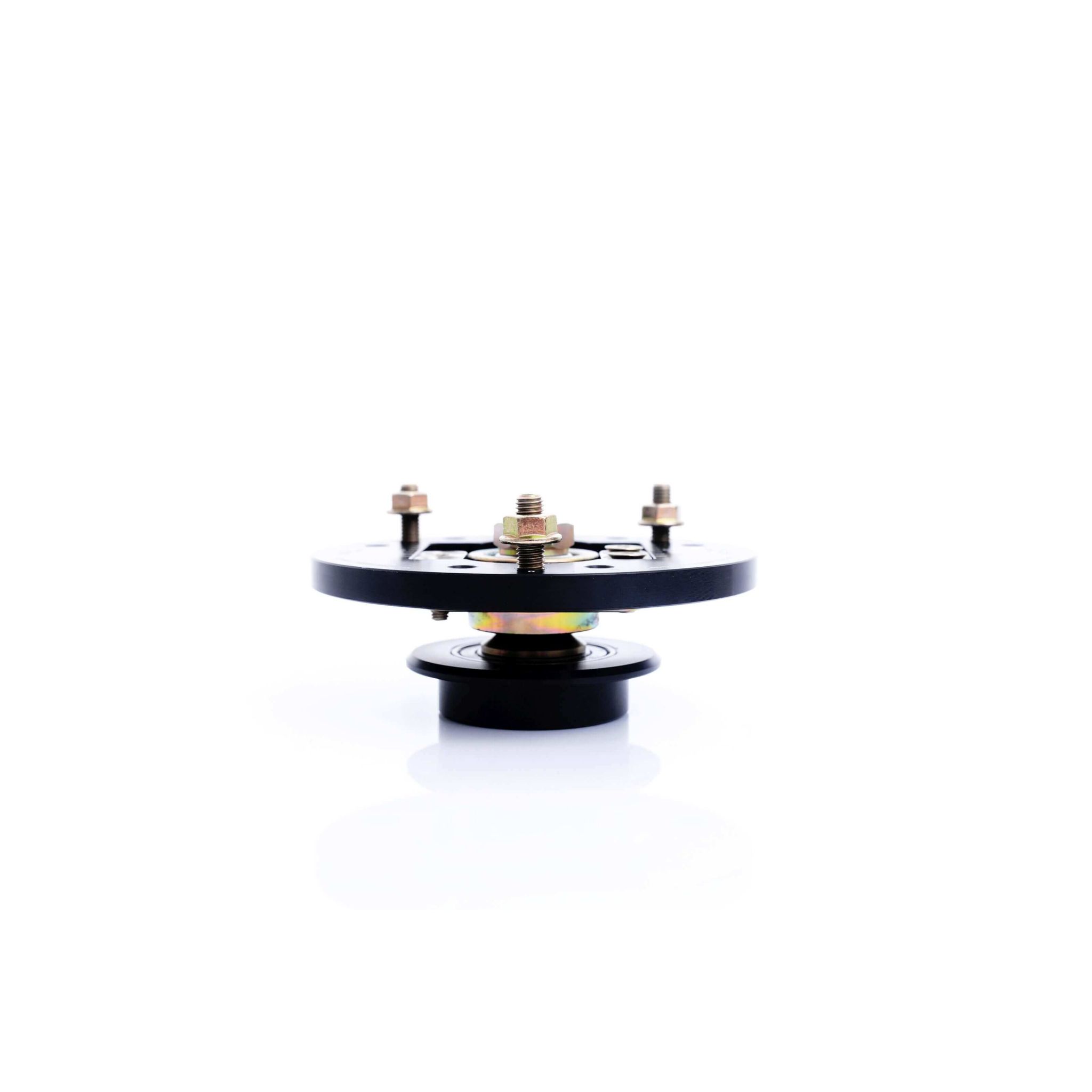

Adjustable camber / caster plates MTS Technik allows you to adjust the angle of inclination of the wheels relative to the ground and the lead angle of the kingpin.
Evolution 2 – the latest generation of MTS Technik top mounts.
When designing the new, improved upper mounts, we were inspired by the slogan 'Daily stance – basic motorsport'. We wanted the product to have sports features (increased stiffness, new uniball bearing, angle adjustment) while minimizing the nuisance in everyday use and high aesthetics required by showcar event cars (aesthetic black-gold).
Additional Attributes:
GTIN: 05903855609723
A – Piston rod diameter: 22 mm
Additional lowering: 20 mm
Adjustment camber range: -2.5° to +0.5°
Adjustment caster range: OEM to +0.5°
Axle: front
B – Piston rod thread pitch: M12x1.25
C – Length of the groove: 43 mm
D – Piston rod thread length: 28 mm
Dedicated spring inside diameter: 61,75 mm
Fitting for OEM suspension: no
Product notes: 59 – If the kit does not include a special piston rod nut, use a nut from the shock absorber., 63 – The adjustment range may be different depending on the vehicle version, the lowering or the accuracy of welding of the suspension components.
Prop 65: N
Version: Adjustable camber / caster plate
Weight: 840 g
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: ST
Dimension: 8 x 8 x 5 inches
Weight: 6 PG
