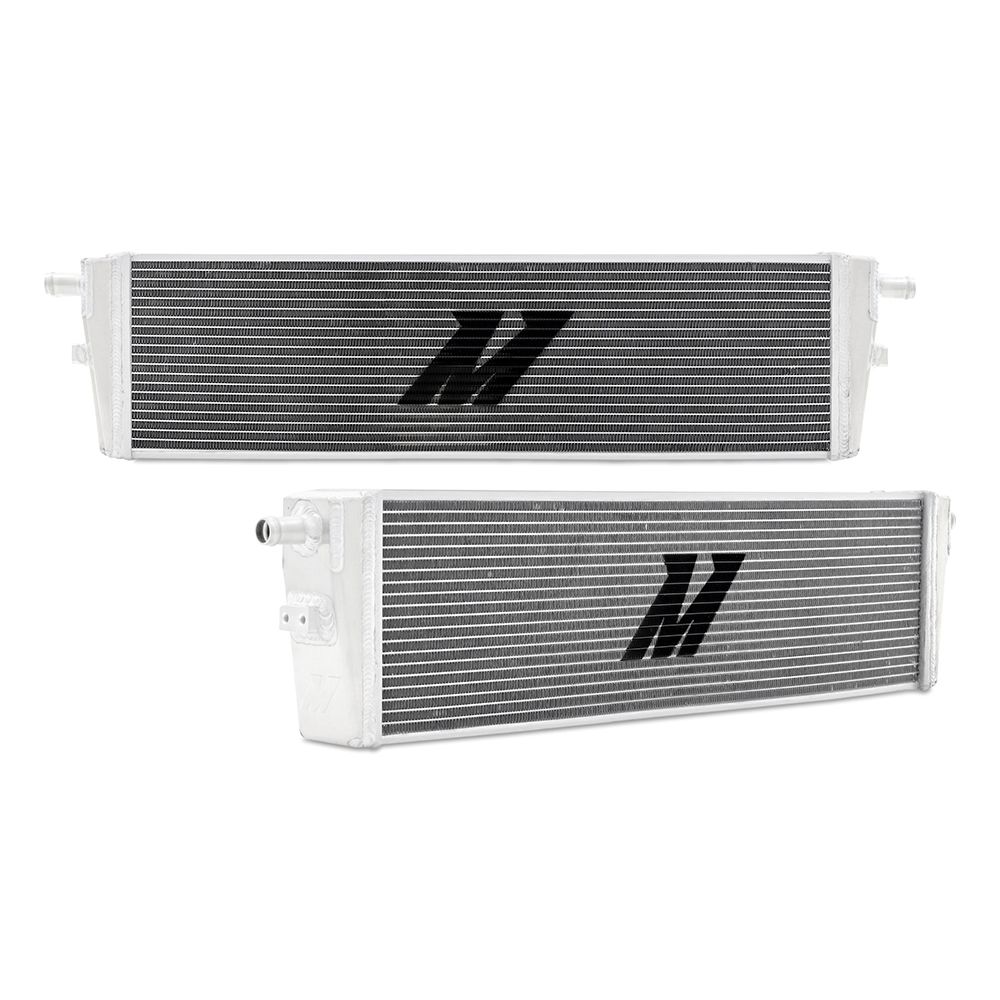

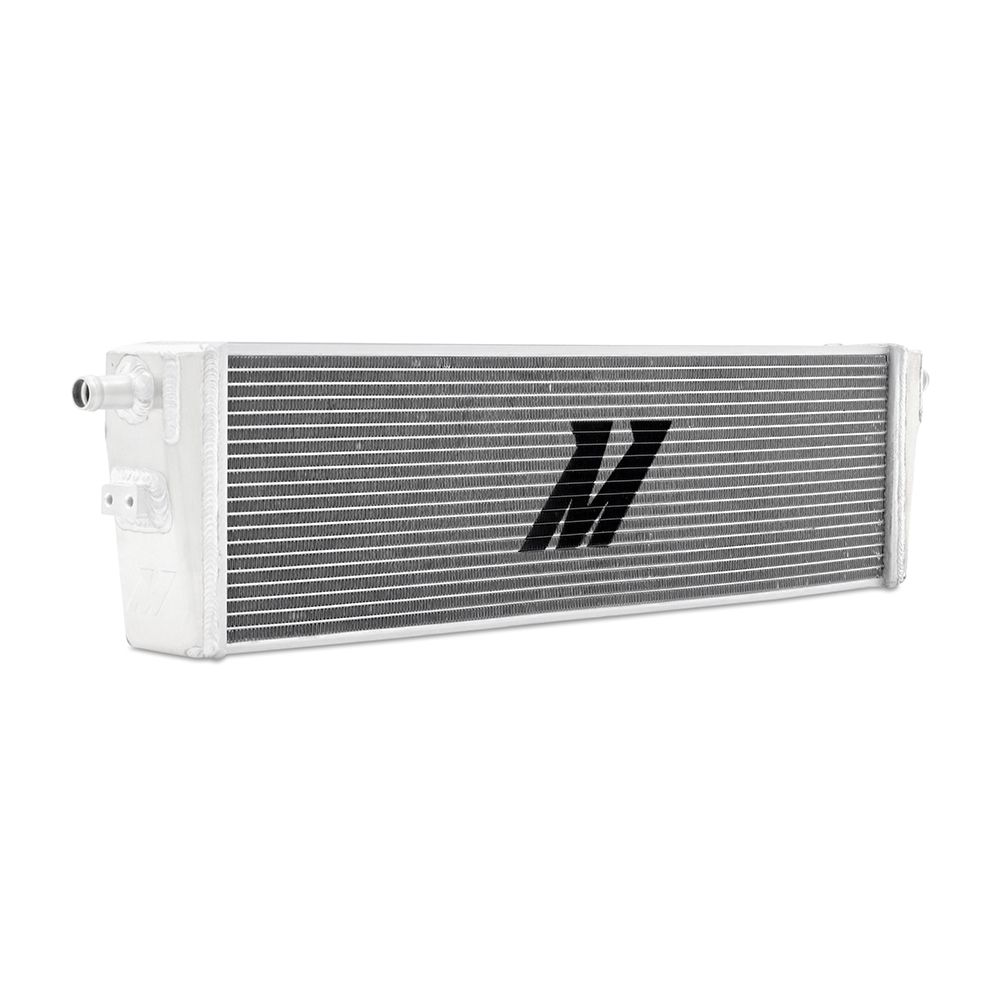

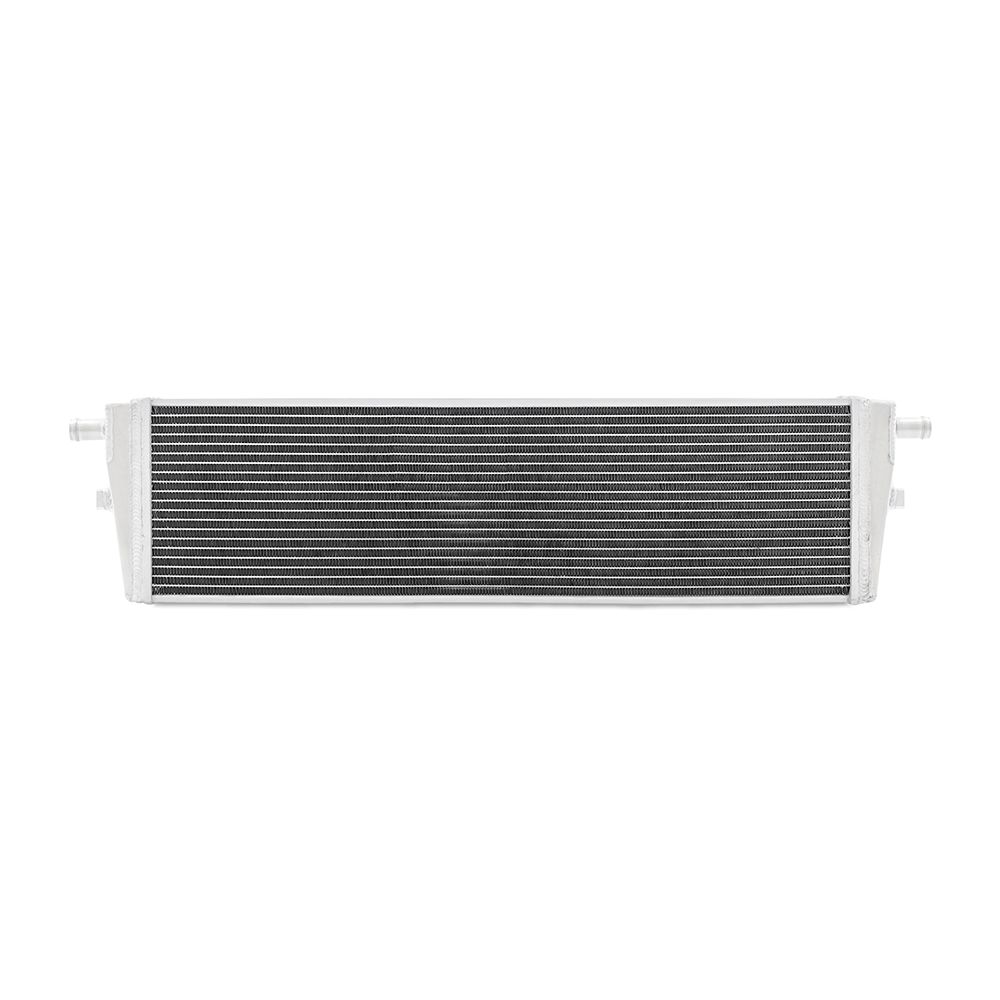

Air-to-Water Heat Exchanger, Single Pass, 23.62in x 6.14in x 2.04in Core, 500HP

There are some aspects of a build where corners can be cut, but your charge-air cooling system shouldn't be one of them. Big turbochargers make big power, and big power often results in high temperatures. Within the last decade, we've seen many turbocharged vehicles transitioning to liquid-to-air intercooling systems. The air-to-water heat exchanger plays a vital role in these systems by reducing coolant temperatures before entering the intercooler. If you're planning a forced induction build and need a charge-air cooling solution, Mishimoto's new air-to-water heat exchangers are an ideal choice. Mishimoto has designed four universal heat exchangers to support any build up to 1,500 hp, each precisely engineered for optimal flow and heat dissipation to meet your horsepower goals. Our heat exchanger options include multiple core sizes in single or dual pass configurations and your choice of two or three-row cores. In addition, the Mishimoto Universal Air-to-Water Heat Exchangers feature all-aluminum TIG-welded construction, making them extremely robust. For ease of installation, we've included half-inch thick threaded mounting bosses on each end tank. Mishimoto offers a complete line of air-to-water products along with our selection of air-to-water heat exchangers , making us your one-stop shop for building the perfect air-to-water intercooler system. As with all our products, this Mishimoto Universal Air-to-Water Heat Exchanger includes the signature Mishimoto Lifetime Warranty.

Additional Attributes:

GTIN: 00840197703144
Install Difficulty: N/A
SellingPoint01: Universal heat exchanger for use with air-to-water intercooler systems
SellingPoint02: Provides effective cooling support for charge-air cooling systems up to 500 hp
SellingPoint03: Strategically designed 3-row core offers maximum flow and heat dissipation
SellingPoint04: Core Size: 23.62 in X 6.14 in X 2.04 in
SellingPoint05: Overall Size: 29.48 in X 7.00 in X 2.67 in
SellingPoint06: All-aluminum construction yields superior strength and durability

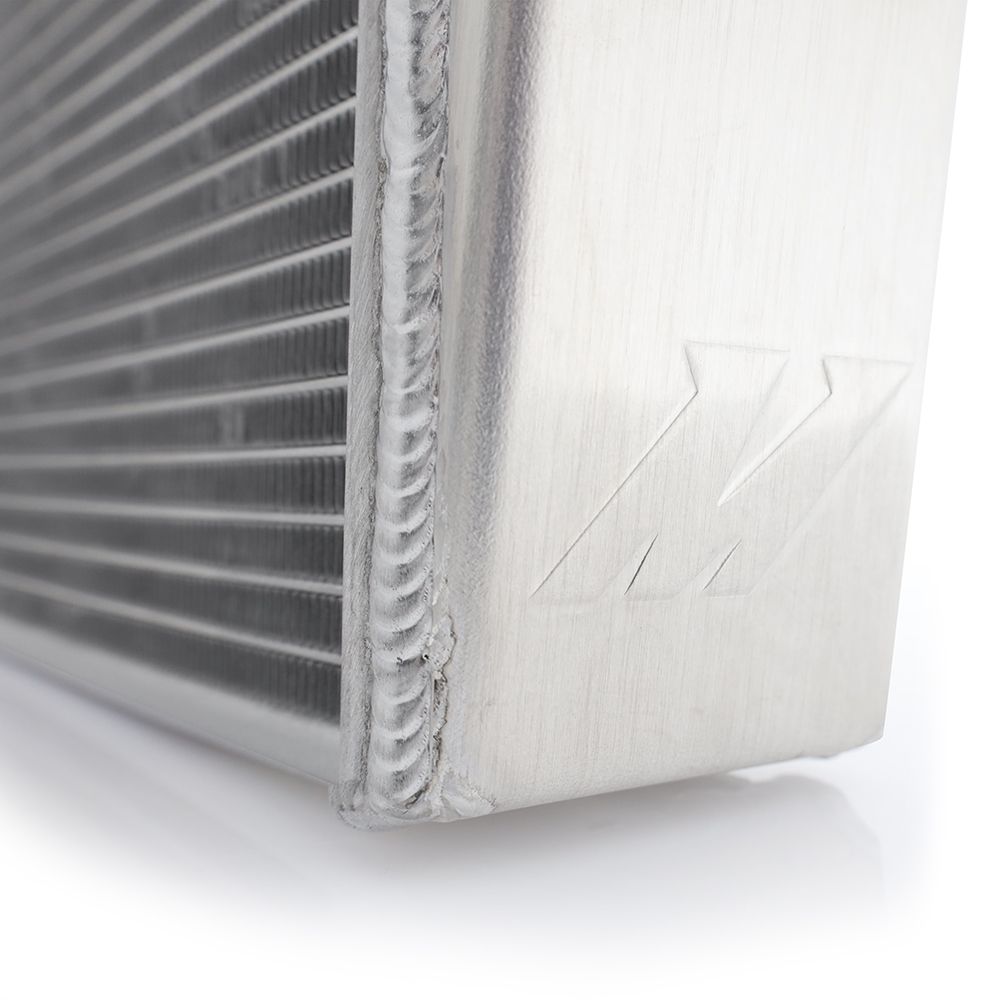

SellingPoint07: Precision TIG-welded end tanks for improved durability and pressure tolerance
SellingPoint08: Robust 1/2-in thick universal mounting bosses on each end tank
SellingPoint09: Bead rolled ¾-in inlet and outlet provide a leak-free connection
SellingPoint10: Multiple sizes to choose from to fit the needs of your project
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 6.14
TechSpec Core Length (in): 23.62
TechSpec Core Thickness (in): 2.04
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Heat Exchanger–Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 7
TechSpec Overall Length (in): 29.48
TechSpec Overall Width (ins): 2.67
TechSpec Rows: 3

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 32 x 5 x 10 inches
Weight: 12 PG
