Auxiliary Heated Fuel Filter Kit for 2011-2016 LML Duramax

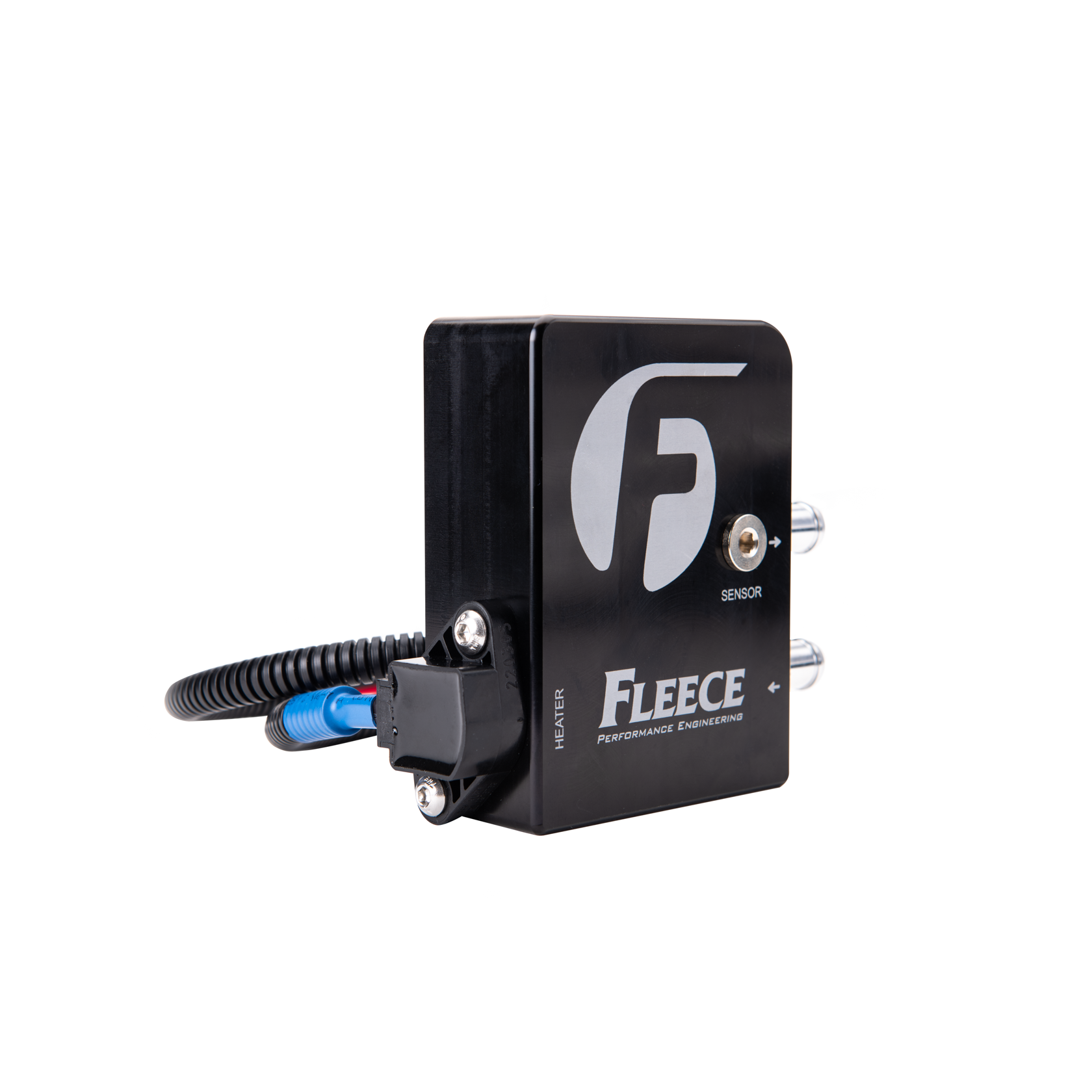

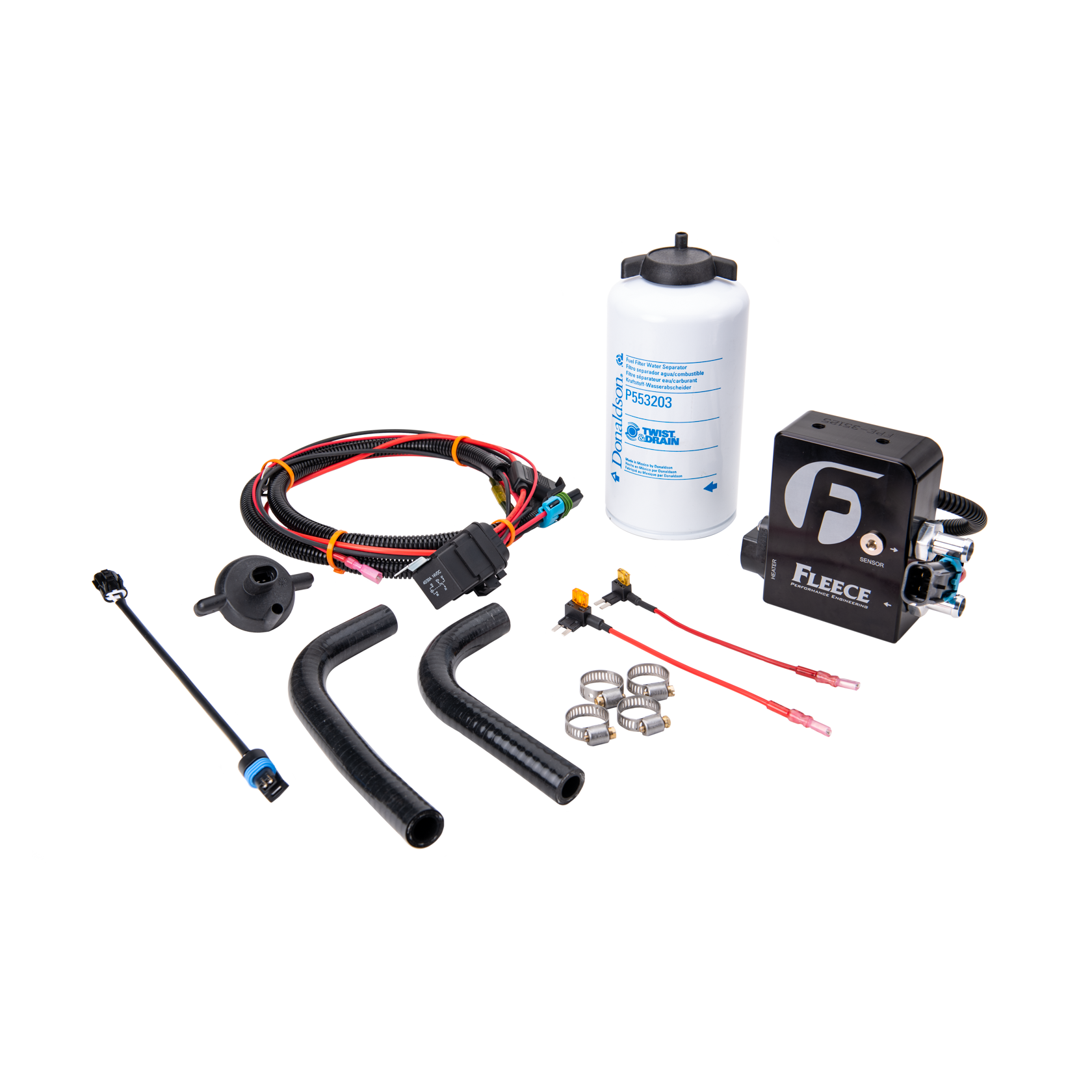

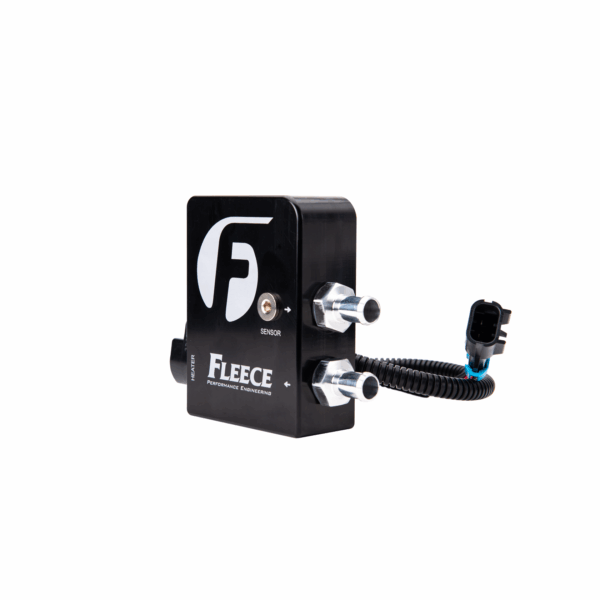

Introducing our all-new full featured auxiliary fuel filter kit for the 2011-2016 LML 6.6L Duramax! This kit replaces the factory fuel filter housing with a new filter base, integral high-flow fuel heater, Water-In-Fuel (WIF) sensor, and Donaldson spin-on canister style filter. The filter base eliminates the factory fuel primer bulb and is intended for use with a positive pressure lift pump such as our PowerFlo lift pump or alternative frame mounted pump.  Problem: The LML Duramax was not originally equipped with a fuel heater, making it prone to fuel gelling in cold temperatures.Solution: Our updated fuel filter base mounts in the factory location, providing for a direct factory replacement and the peace of mind to tackle the coldest of days with a high-flow fuel heater.Kit includes: Fuel filter base with integral fuel heater and fittingsDonaldson 3 micron fuel filter and water separatorPre-formed hose and hose clampsWiring harness and fuse tapsWater-In-Fuel (WIF) sensor and adaptation harness Fuel heater specifications:Temperature switching points: ON: 28.4F +/-5.4F,  OFF: 48.2F +/- 5.4FAt typical fuel flow rates a temperature increase of between 4-8F will occur across the heating elementApplication Notes:For 2011-2016 6.6L Duramax onlyThis filter base elimates the factory fuel primer bulb and is intended ONLY for use with a positive pressure lift pump such as our PowerFlo lift pump or alternative frame mounted pump.

Additional Attributes:

GTIN: 00670875717718
Add On Items: FPE-34563, FPE-34564
Prop 65 Yes/No: YES

Extended Information:

Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 10 x 10 x 8 inches
Weight: 10 PG

PDF:

FPE-2022-81_FPE-DMAX-HFFBA-1116
