Bilstein Shock Absorbers

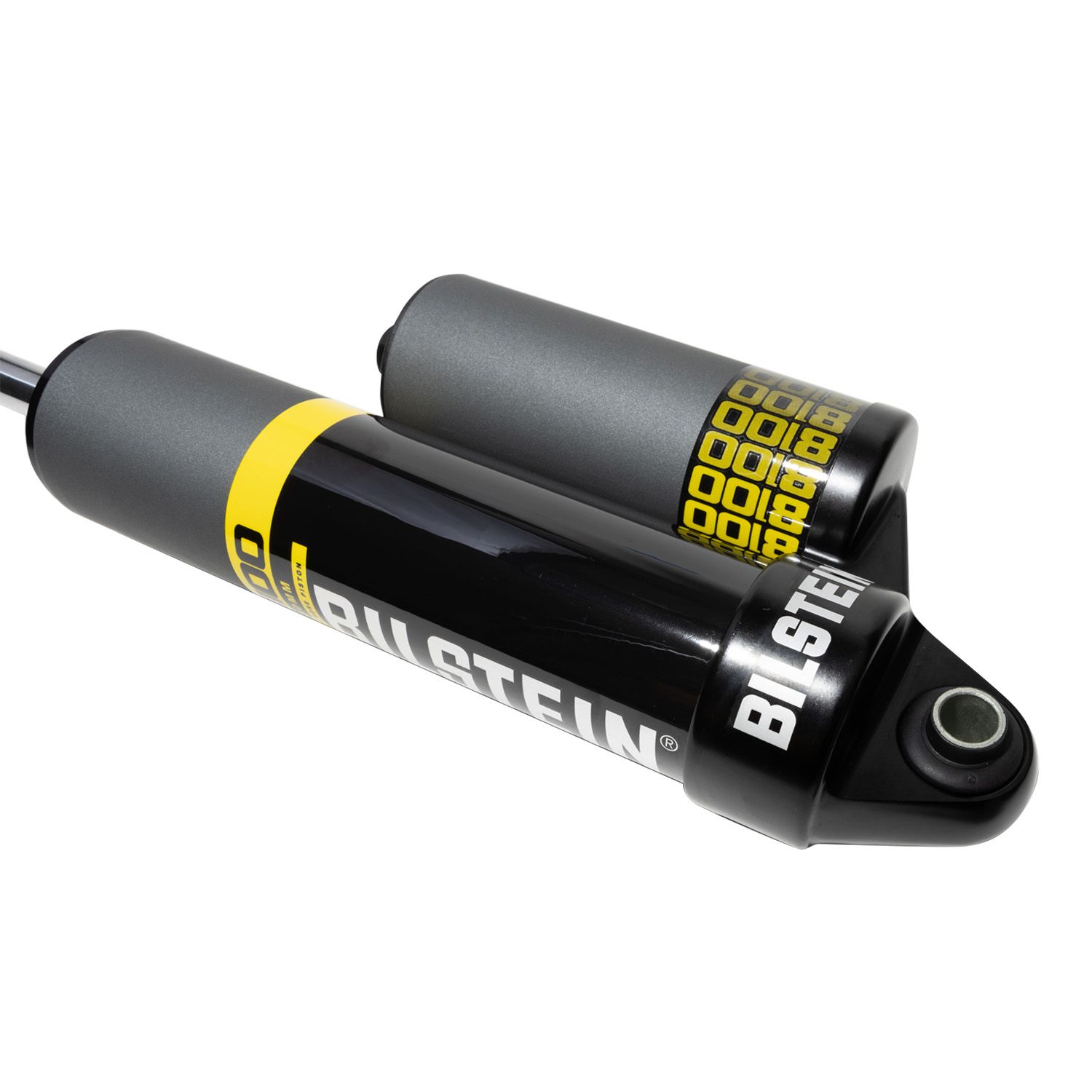

The B8 8100 (ZoneControl R DSA) reservoir shock absorber is an adjustable large bore 60mm (2.65" OD) direct fit solution for lifted trucks and SUVs. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. ZoneControl R is a revolutionary double piston technology delivering position sensitive rebound damping which eliminates harsh suspension top-out events and the need for an external limit strap. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (ZoneControl R DSA) offers unmatched levels of adjustable ride comfort and control.

Additional Attributes:

GTIN: 00651860949116
Adjustable Damping: Double Adjustable Compression with Click Adjuster Knobs
Body Design: Smooth Body (Non-Coilover)
Body Diameter (ID): 60mm
Boot Included: No
Collapsed Length (IN): 14.65
Collapsed Length (MM): 372.2
Extended Length (IN): 22.99
Extended Length (MM): 584.0
Finish: EVO Grey
Internal Design: Monotube
Lower Mount Type: Eye 14.1mm
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 8100 (ZoneControl R DSA)
Spring Seat Included: No
Upper Mount Type: Stem

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 32.0000 x 14.0000 x 6.0000 inches
Weight: 20.0000 PG

PDF:

USA SDS_Shock_Air Spring_V2_EN

E-WM05-0000121
