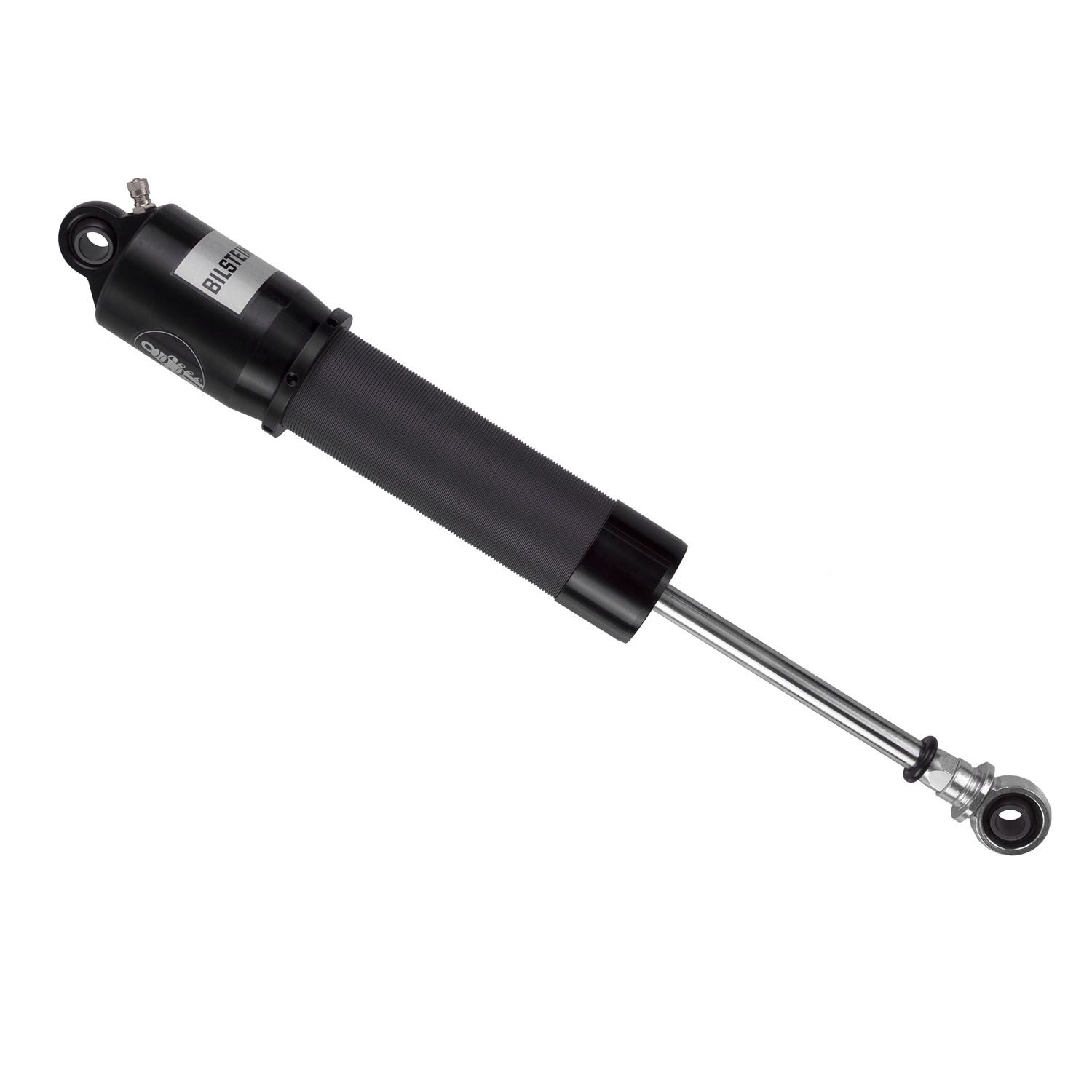

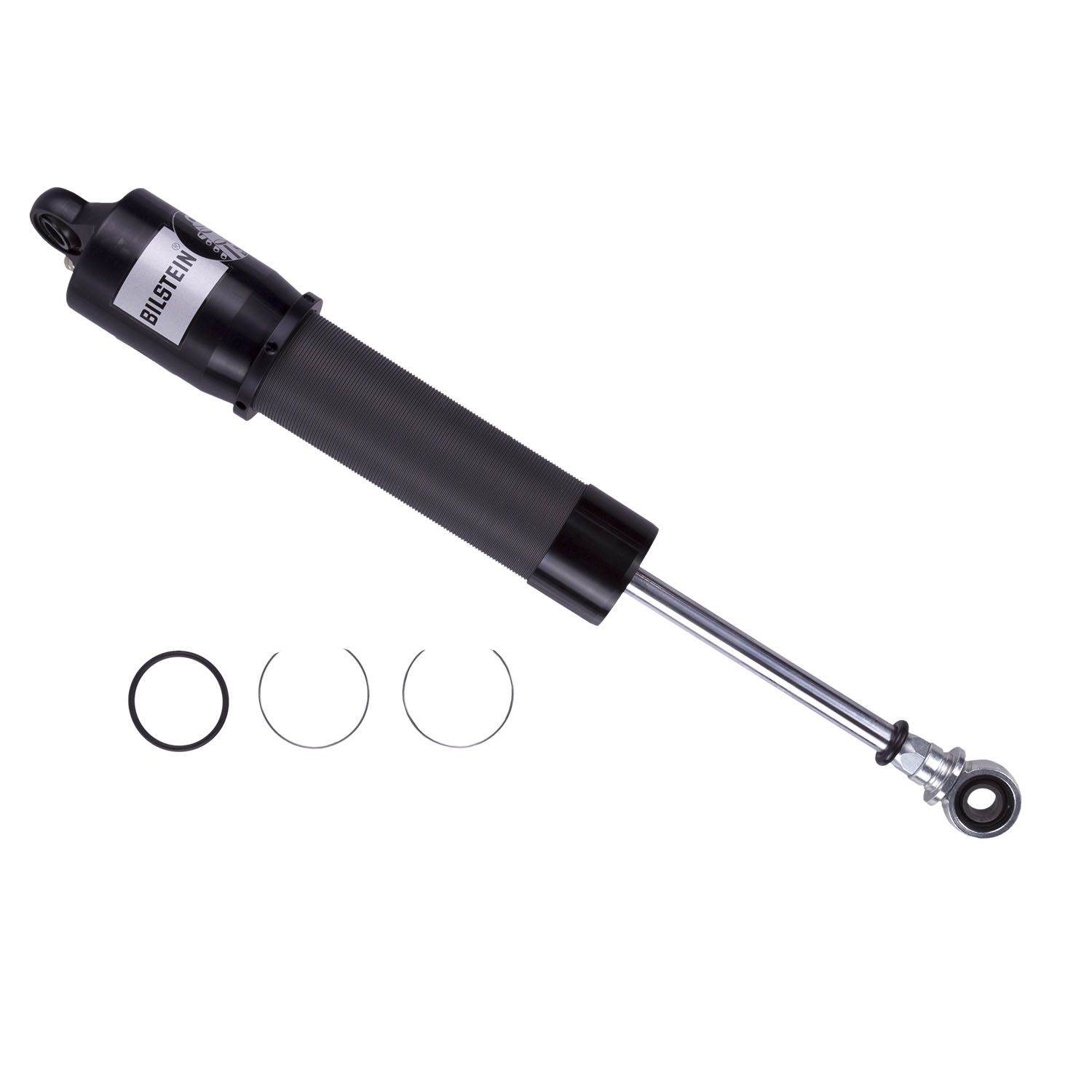

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Additional Attributes:
GTIN: 00651860775739
Adjustable Damping: Non-Adjustable
Body Design: Threaded Body Large Bulb Screw Top (Coilover)
Body Diameter (ID): 46mm
Body Material: Aluminum
Boot Included: No
Collapsed Length (IN): 12.81
Collapsed Length (MM): 325.5
Extended Length (IN): 18.56
Extended Length (MM): 471.5
Finish: Clear Anodized
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Type: Linear
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Segment: Motorsports
Series: XVA Series
Spring Hardware: B4-KT1-Z245A01
Spring Seat Included: No
Upper Mount Type: 1/2in Heim
Valving Identifier: Linear Dry Kit (no valving)
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Superseded
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 22.4500 x 2.9500 x 2.9500 inches
Weight: 2.6900 PG
USA SDS_Shock_Air Spring_V2_EN
