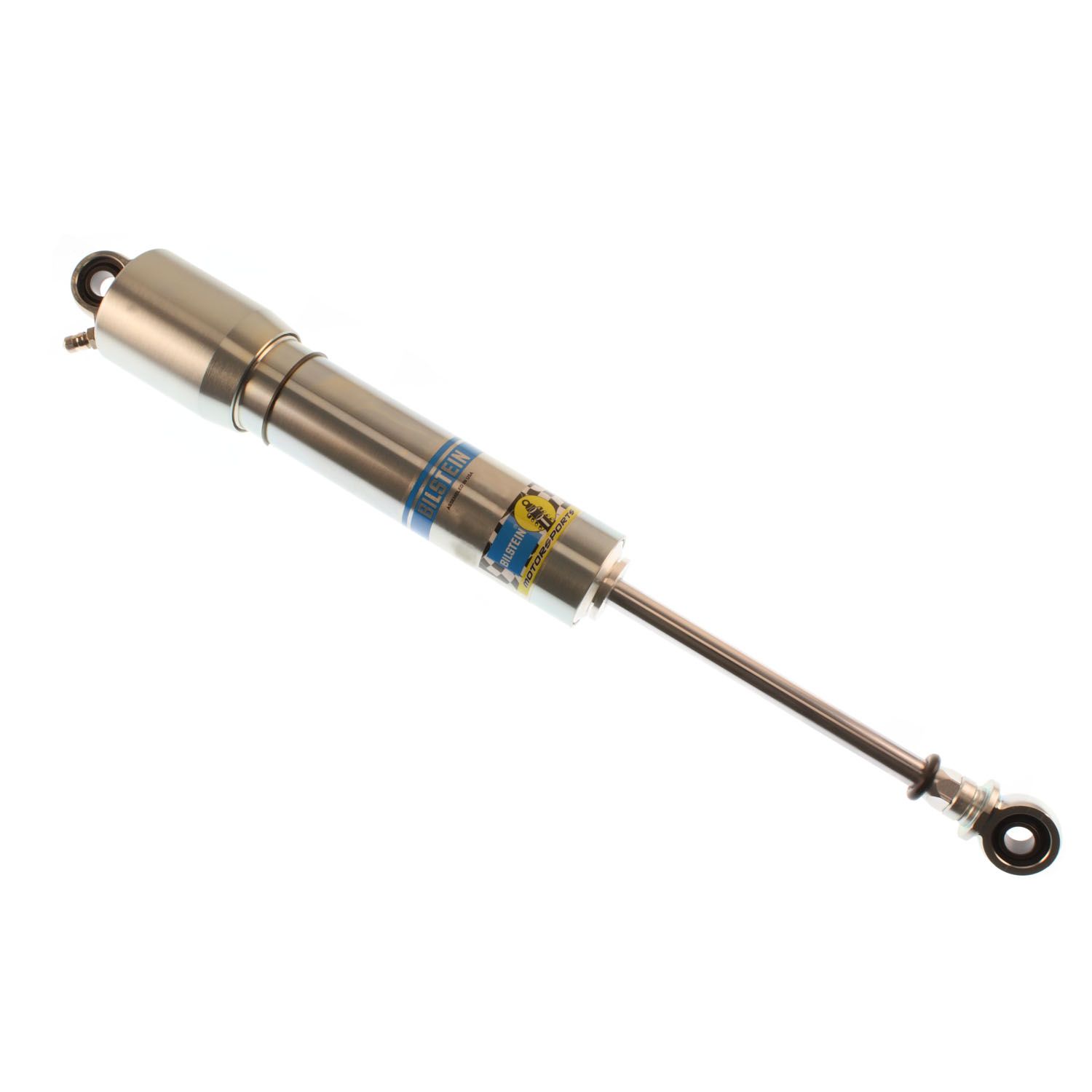

Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.
Additional Attributes:
GTIN: 00651860727165
Boot Included: No
Collapsed Length (IN): 15.24
Collapsed Length (MM): 387.0
Compression @0.52m/s: 590
Extended Length (IN): 23.64
Extended Length (MM): 600.5
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Position: Rear Left
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.52m/s: 1625
Segment: Motorsports
Series: XVS-S Series
Spring Seat Included: No
Upper Mount Type: 1/2in Heim
Valving Identifier: 3.5-1S
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.8000 x 2.9500 x 2.9500 inches
Weight: 7.0000 PG
USA SDS_Shock_Air Spring_V2_EN
