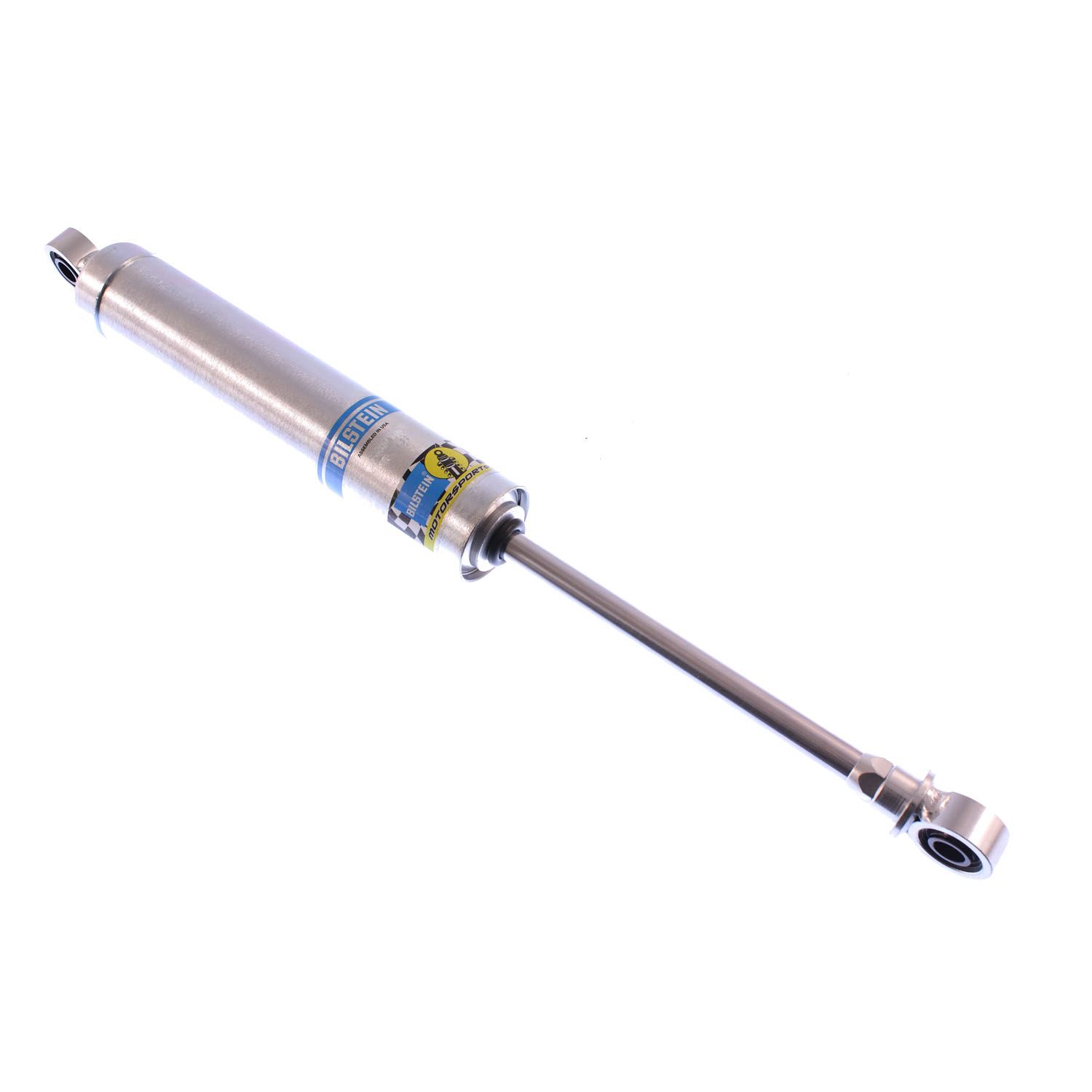

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Additional Attributes:
GTIN: 00651860880778
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-coilover)
Body Diameter (ID): 46mm
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 14.88
Collapsed Length (MM): 378.0
Compression @ 10″/sec: 725
Extended Length (IN): 23.52
Extended Length (MM): 597.5
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Type: Digressive
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @ 10″/sec: 125
Segment: Motorsports
Series: SZ Series
Spring Seat Included: No
Upper Mount Type: 1/2in Heim
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.8000 x 2.9500 x 2.9500 inches
Weight: 4.6300 PG
USA SDS_Shock_Air Spring_V2_EN
