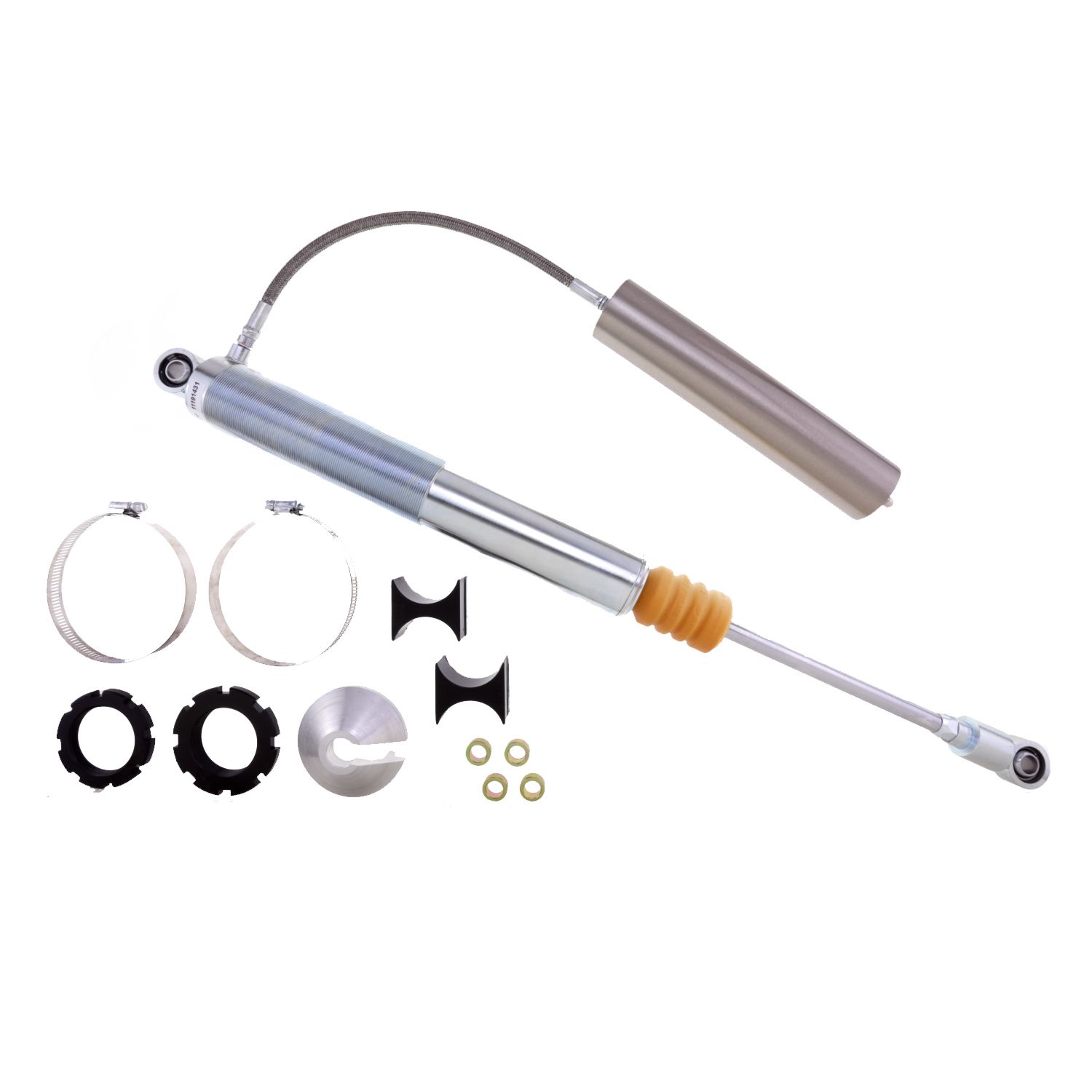

Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.
Additional Attributes:
GTIN: 00790832512337
Body Design: Threaded Body (Coilover)
Body Diameter (ID): 46mm
Collapsed Length (IN): 17.44
Collapsed Length (IN) Rounded: 17
Collapsed Length (MM): 443.0
Compression @0.52m/s: 1000
Extended Length (IN): 26.65
Extended Length (IN) Rounded: 27
Extended Length (MM): 676.9
Finish: Nickel Plated with Clear Powder Coat
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.52m/s: 2550
Reservoir: Yes
Segment: Motorsports
Series: M 7100 (Coilover)
Spring Hardware: Single Rate (2.5in)
Spring Seat Included: Yes
Upper Mount Type: 1/2in Heim
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 37.0000 x 7.0000 x 2.0000 inches
Weight: 9.8100 PG
USA SDS_Shock_Air Spring_V2_EN
