Bilstein Shock Absorbers

$287.72

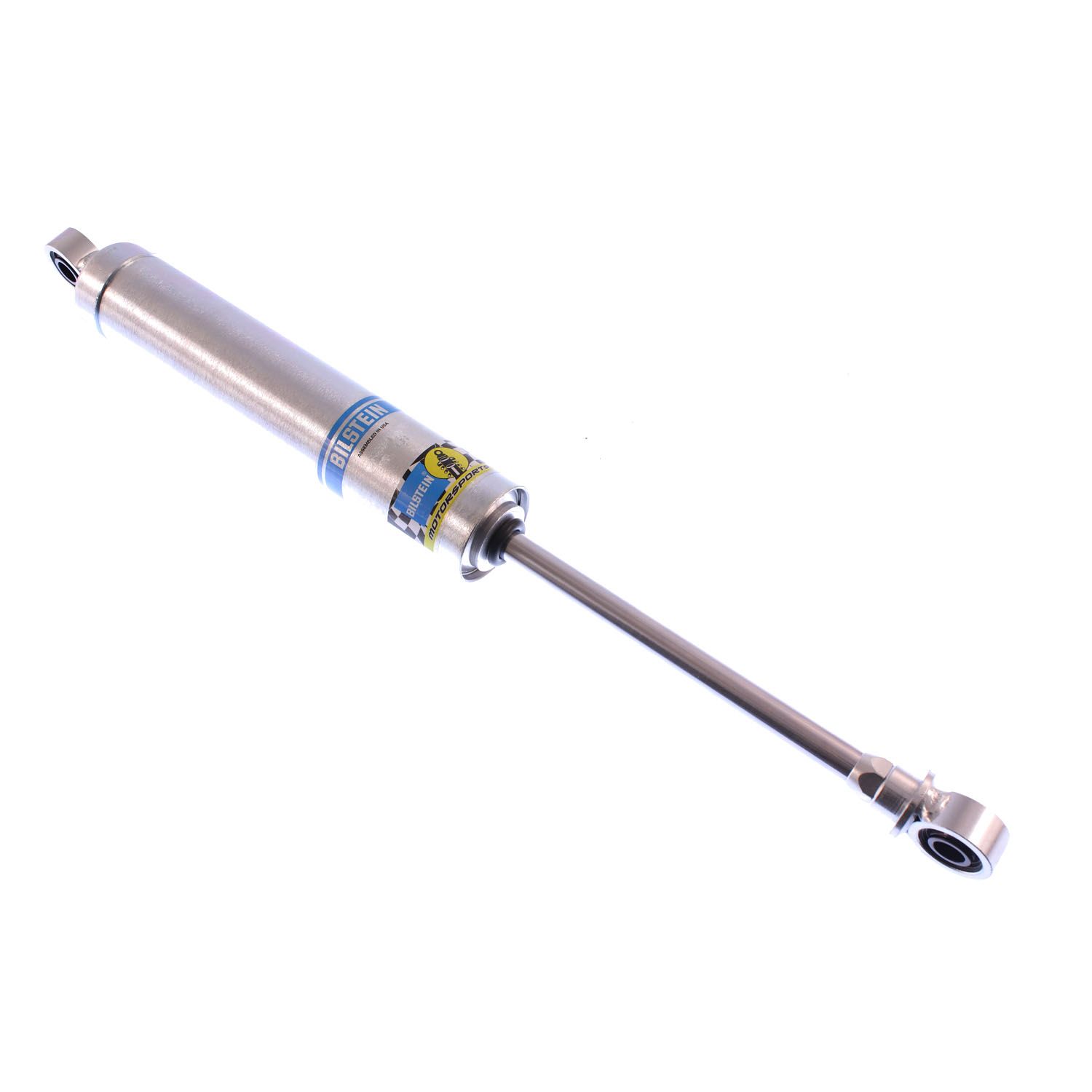

46mm Monotube Shock Absorber

  • Plated steel body for durability and superior heat dissipation
  • 46mm piston design for maximum damping control
  • Standard 1/2” graphite heims
SKU: BBGL-F4-B46-0202-TD Category:

Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). Also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Additional Attributes:

GTIN: 00651860421650
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-coilover)
Body Diameter (ID): 46mm
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 12.05
Collapsed Length (MM): 306.0
Compression @0.26m/s: 745
Extended Length (IN): 18.11
Extended Length (MM): 460.0
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Type: Linear
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.26m/s: 1145
Segment: Motorsports
Series: SL Series
Spring Hardware: B4-BOA-0000117
Spring Seat Included: No
Upper Mount Type: 1/2in Heim
Valving Identifier: 220/120

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Discontinued

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.0000 x 2.7500 x 2.5000 inches
Weight: 4.6300 PG

PDF:

Weight 2.1 kg
Dimensions 26.0000 × 2.7500 × 2.5000 cm
