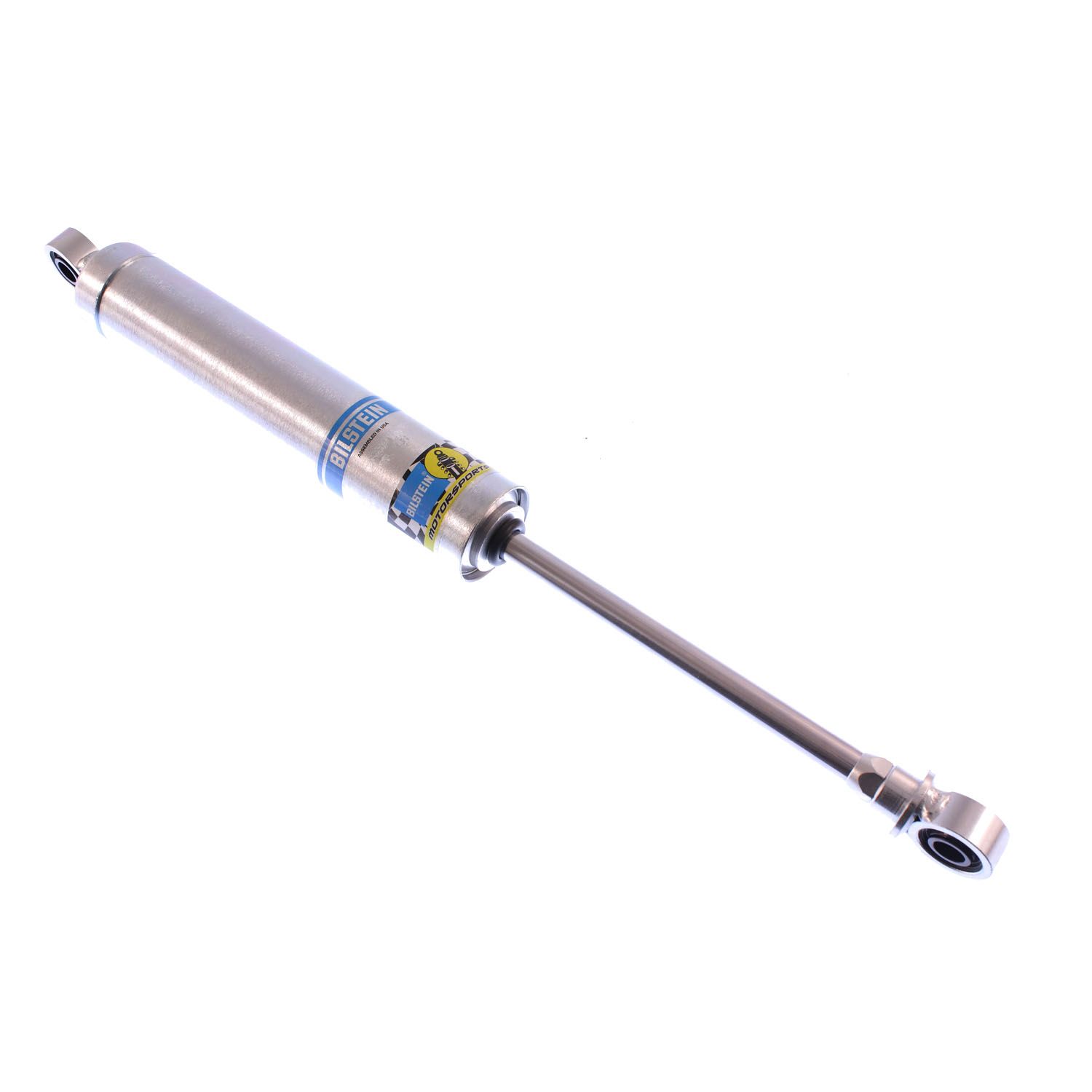

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Additional Attributes:
GTIN: 00651860401355
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-coilover)
Body Diameter (ID): 46mm
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 13.15
Collapsed Length (MM): 334.0
Compression @0.26m/s: 1110
Extended Length (IN): 20.08
Extended Length (MM): 510.0
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Type: Digressive
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.26m/s: 650
Segment: Motorsports
Series: SZ Series
Spring Hardware: B4-BOA-0000117
Spring Seat Included: No
Upper Mount Type: 1/2in Heim
Valving Identifier: 3050
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 22.4500 x 2.9500 x 2.9500 inches
Weight: 4.6300 PG
USA SDS_Shock_Air Spring_V2_EN
