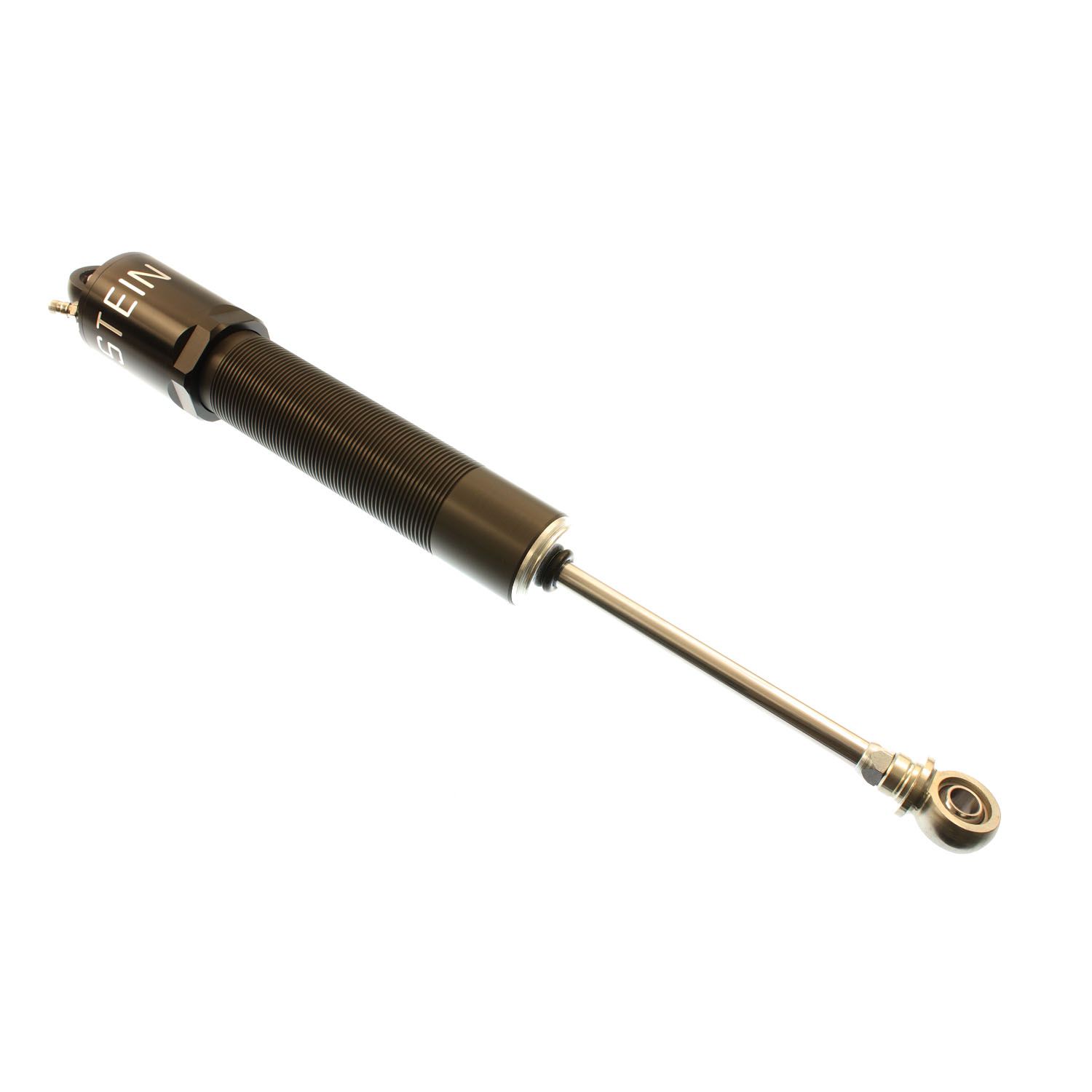

Bilstein BGT (Big Gas Threaded) shock absorbers are 46mm aluminum body monotube shocks designed for, but not limited to, Late Models, Super Late Models, Sprint Cars, Dirt Late Models, and Big Block Modified. These shocks feature a large 60mm nitrogen compartment that reduces rod pressure and keeps the nitrogen pressure more consistent during heat changes. The BGT shock absorbers are hard anodized with coarse threads on the shock body for added strength and ease of coil spring height adjustment. They are available with or without the BGT base valve and are completely racer rebuildable and revalvable. Optional adjustable shafts are available, as well as composite wear sleeves to protect the shock tube.
Additional Attributes:
GTIN: 00651860571010
Boot Included: No
Collapsed Length (IN): 16.75
Collapsed Length (MM): 425.5
Compression: Custom
Extended Length (IN): 25.04
Extended Length (MM): 636.0
Finish: Clear Anodized
Internal Design: Monotube
Lower Mount Type: Eye 12.7mm
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound: Custom
Segment: Motorsports
Series: BGT Series
Spring Seat Included: No
Upper Mount Type: Eye 12.7mm
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.8000 x 2.9500 x 2.9500 inches
Weight: 4.6200 PG
USA SDS_Shock_Air Spring_V2_EN
