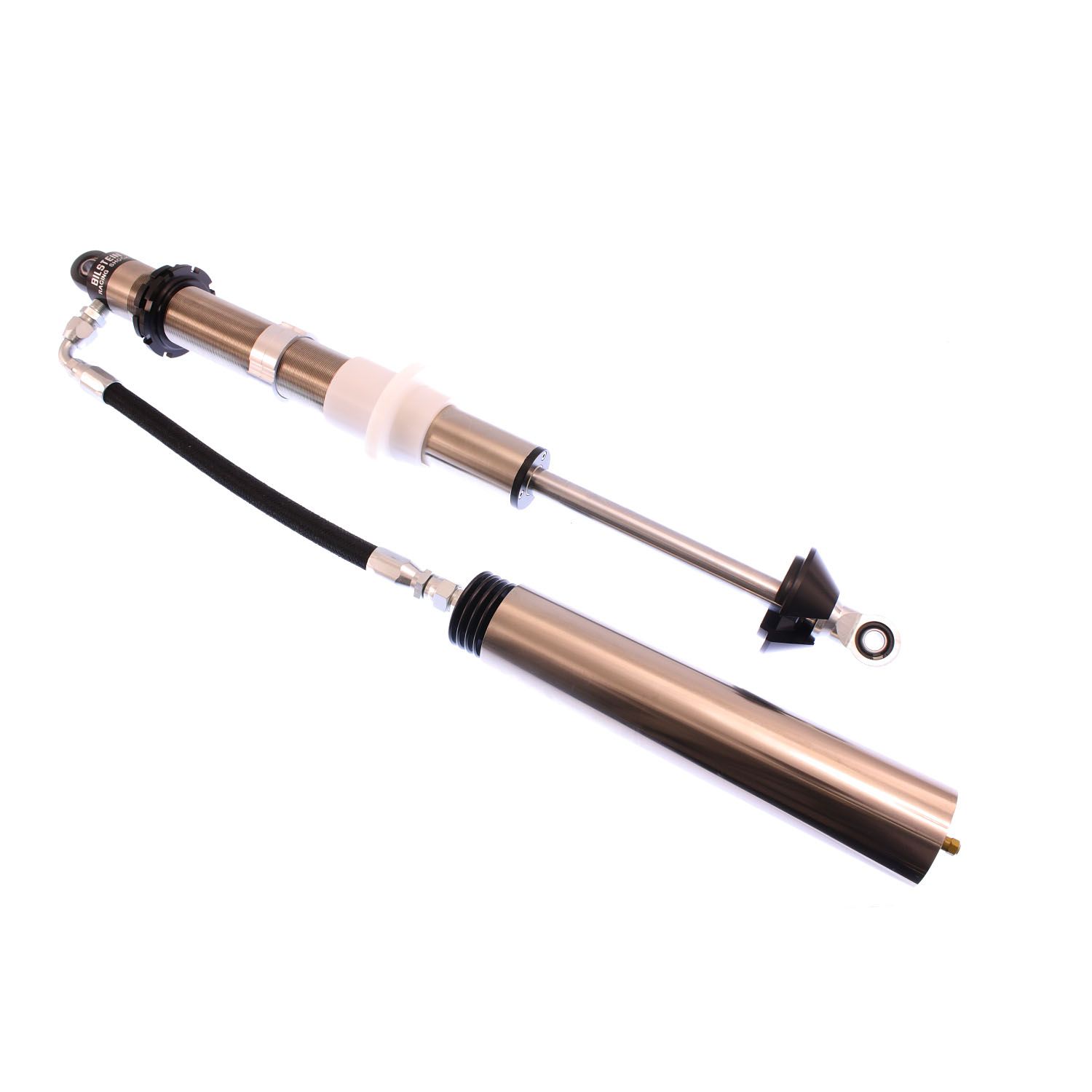

Bilstein M 9100 (Coilover) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.
Additional Attributes:
GTIN: 00790832513143
Body Design: Threaded Body Screw Top (Coilover)
Body Diameter (ID): 46mm
Collapsed Length (IN): 26.97
Collapsed Length (IN) Rounded: 27
Collapsed Length (MM): 685.0
Compression @0.52m/s: Custom
Extended Length (IN): 43.37
Extended Length (IN) Rounded: 43
Extended Length (MM): 1101.6
Finish: Nickel Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.52m/s: Custom
Reservoir: Yes
Segment: Motorsports
Series: M 9100 (Coilover)
Spring Seat Included: Yes
Upper Mount Type: 1/2in Heim
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 38.2500 x 16.7500 x 9.7500 inches
Weight: 13.0000 PG
