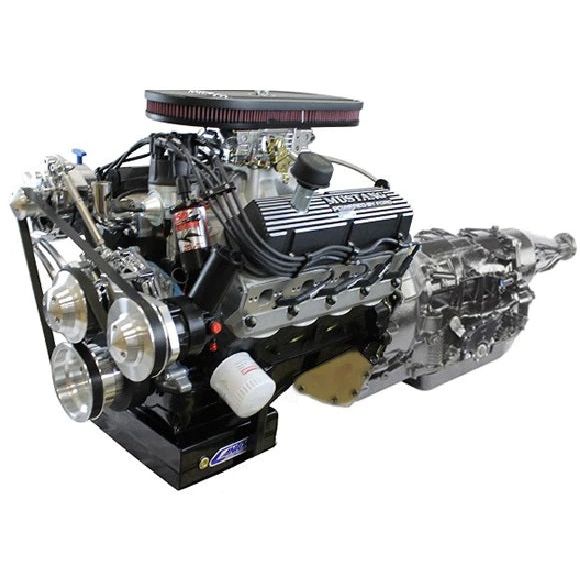

Engine/Trans Package, Roller Cam, Forged Pistons, 1pc Rear Seal, Externally Balanced to 28oz. Front & Rear, Dual Plane Intake, EFI, Ready Run Distributor, Ignition Coil, Distributor, Standard Rotation Water Pump, Oil Pan, Mustang Valve Covers, Air Cleaner, Timing Cover, Black Pulley Kit, 4R70 Automatic Transmission
Additional Attributes:
GTIN: 00887753983015
Air Cleaner Included: Yes
Block Description: BluePrint Engines Cast Iron Block – 4 Bolt Main – 4.000″ Bore
Cam: Hydraulic Roller – .543 Intake / .554 Exhaust Lift – 218 Intake / 226 Exhaust Duration -@.050-112 LSA
Carb/Fuel Injection Included: Yes
Compression Ratio: 10.0:1
Crankshaft Vendor: BluePrint or Ford, Machined and Balanced by BluePrint Engines
Cylinder Head Vendor: BluePrint Engines
Cylinder Heads Included: Yes
Cylinder Heads: Aluminum Cylinder Heads
Distributor Included: Yes
Distributor Vendor: BluePrint Pro Billet
Engine Balance: Externally Balanced – 28oz
Firing Order: 1,3,7,2,6,5,4,8
Flexplate/Flywheel Included: Yes
Fuel Delivery Type: Sniper II EFI – Fuel Injected
Fuel Delivery Vendor: Holley
Fuel Pump Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 415
Intake Manifold Included: Yes
Intake Manifold Type: Dual Plane, Satin Aluminum
Intake Manifold Vendor: BluePrint Engines
Oil Pan Included: Yes-Front Sump
Pistons: Forged
Quantity: EA
Rear Main Seal Style: 1 Piece
Recommended Flexplate/Flywheel: BPPF28164
Recommended Harmonic Balancer: BPP28
Recommended Octane Fuel: 91 Octane
Recommended Spark Plug Gap: .035 in.
Recommended Spark Plug: BPP7938 NGK 7938 BKR5E
Recommended Stall Converter: 2000-2400 RPM
Rotating Assembly: Cast Crank – 3.400 in. Stroke and 5.400 in. Rods
Spark Plug Wires Included: Yes
Spark Plugs Included: Yes
Timing Cover Included: Yes
Timing Requirements: Initial Timing 10-16 – Total Timing 32-34
Torque: 415
Transmission Model: TKX
Transmission Type: Manual
Valve Covers Included: Yes
Water Pump Included: Yes
Extended Information:
Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 60 x 30 x 30 inches
Weight: 750 PG
BLUEPRINT RECOMMENDED SBF PARTS AND INSTALLATION TIPS
