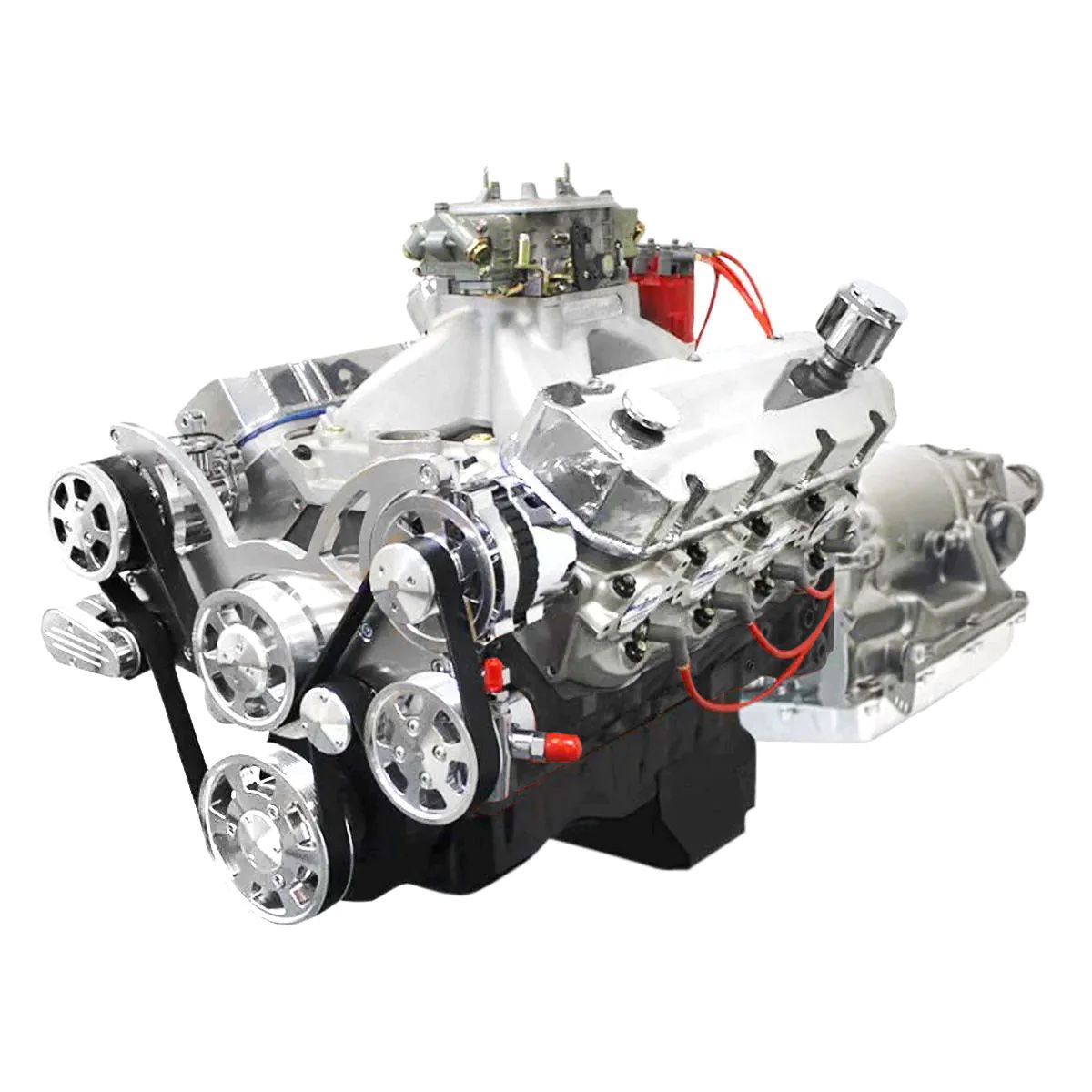

BluePrint Engines GM Big Block Compatible 598 C.I. Standard Edition – 4L80E Automatic Transmission – Polished Pulley Kit – Fuel Injected

Engine/Trans Package Short Deck, 4-Bolt Main, 1pc Rear Seal, Forged Pistons, Internally Balanced, Aluminum Heads, Rectangle Port, Forged Crank, Hyd Roller Cam, Intake, EFI, Ready Run Distributor, Polished Pulley Kit, 4L80 Auto Transmission, Starter

Additional Attributes:

GTIN: 00887753983398
Air Cleaner Included: Yes
Block Description: BluePrint Engines Cast Iron Block – 4 Bolt Main – 4.600″ Bore
Cam: Hydraulic Roller – .647 Intake / .647 Exhaust Lift – 258 Intake / 266 Exhaust Duration -@.050-112 LSA
Carb/Fuel Injection Included: Yes
Compression Ratio: 10.5:1
Crankshaft Vendor: BluePrint Engines
Cylinder Head Vendor: BluePrint Engines
Cylinder Heads Included: Yes
Cylinder Heads: Aluminum Cylinder Heads
Distributor Included: Yes
Distributor Vendor: BluePrint Pro Billet
Engine Balance: Internally Balanced
Firing Order: 1,8,4,3,6,5,7,2
Flexplate/Flywheel Included: Yes
Fuel Delivery Type: Sniper Stealth 4500 Power Adder – Fuel Injected
Fuel Delivery Vendor: Holley
Fuel Pump Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 741
Intake Manifold Included: Yes
Intake Manifold Type: Dual Plane, Satin Aluminum
Intake Manifold Vendor: BluePrint Engines
Oil Pan Included: Yes-Rear Sump
Pistons: Forged
Quantity: EA
Rear Main Seal Style: 1 Piece
Recommended Flexplate/Flywheel: BPP168T2P
Recommended Harmonic Balancer: BPP454I
Recommended Octane Fuel: 91 Octane
Recommended Spark Plug Gap: .035 in.
Recommended Spark Plug: BPP7938 NGK 7938 BKR5E
Recommended Stall Converter: 2500-2800 RPM
Rotating Assembly: Forged Crank – 4.500 in. Stroke and 6.480 in. Rods
Spark Plug Wires Included: Yes
Spark Plugs Included: Yes
Timing Cover Included: Yes
Timing Requirements: Initial Timing 10-16 – Total Timing 32-34
Torque: 703
Transmission Model: 4L80E
Transmission Type: Automatic
Valve Covers Included: Yes
Water Pump Included: Yes

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 60 x 30 x 30 inches
Weight: 750 PG

PDF:

BLUEPRINT INSTALLATION INSTRUCTIONS (Hemi.BBC)
