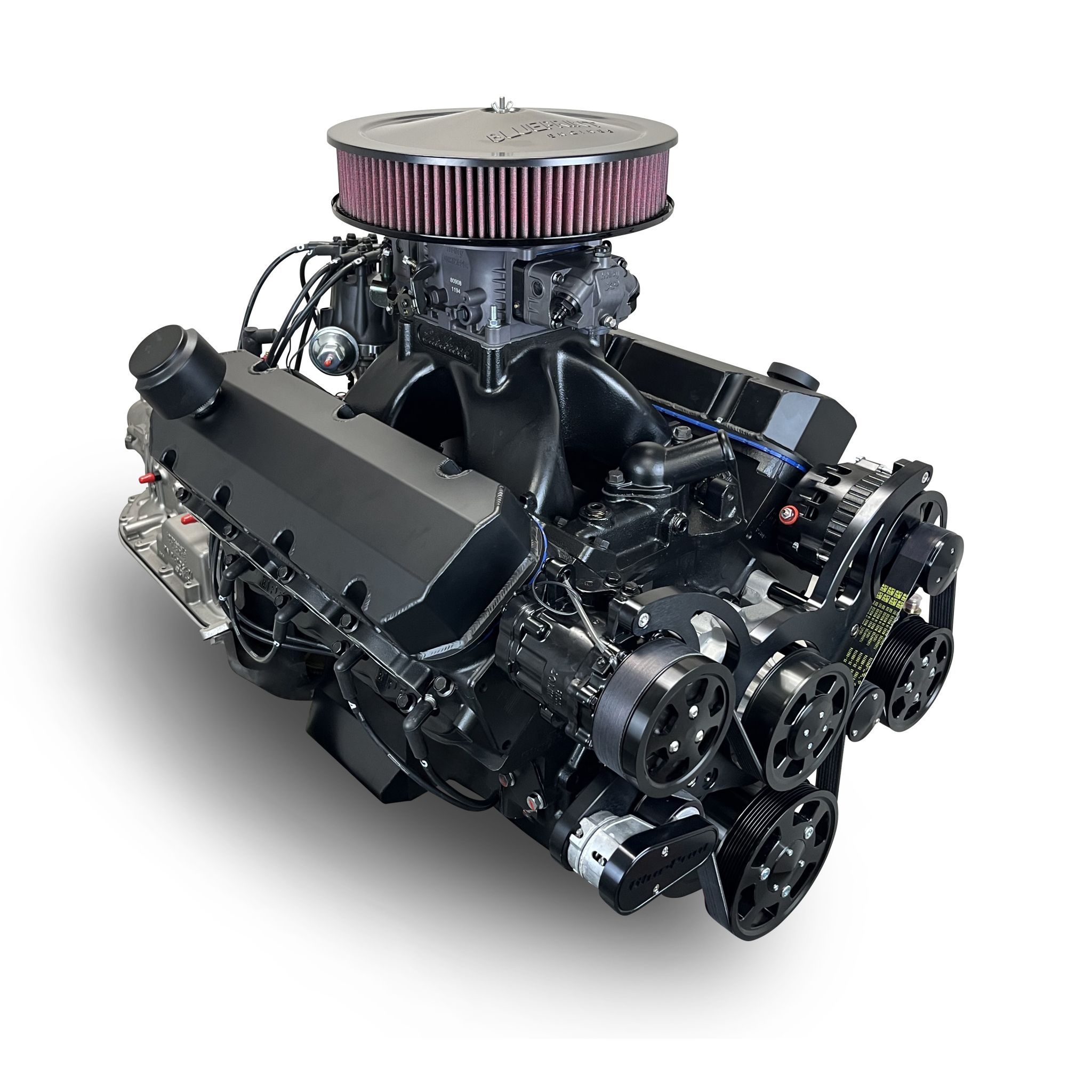

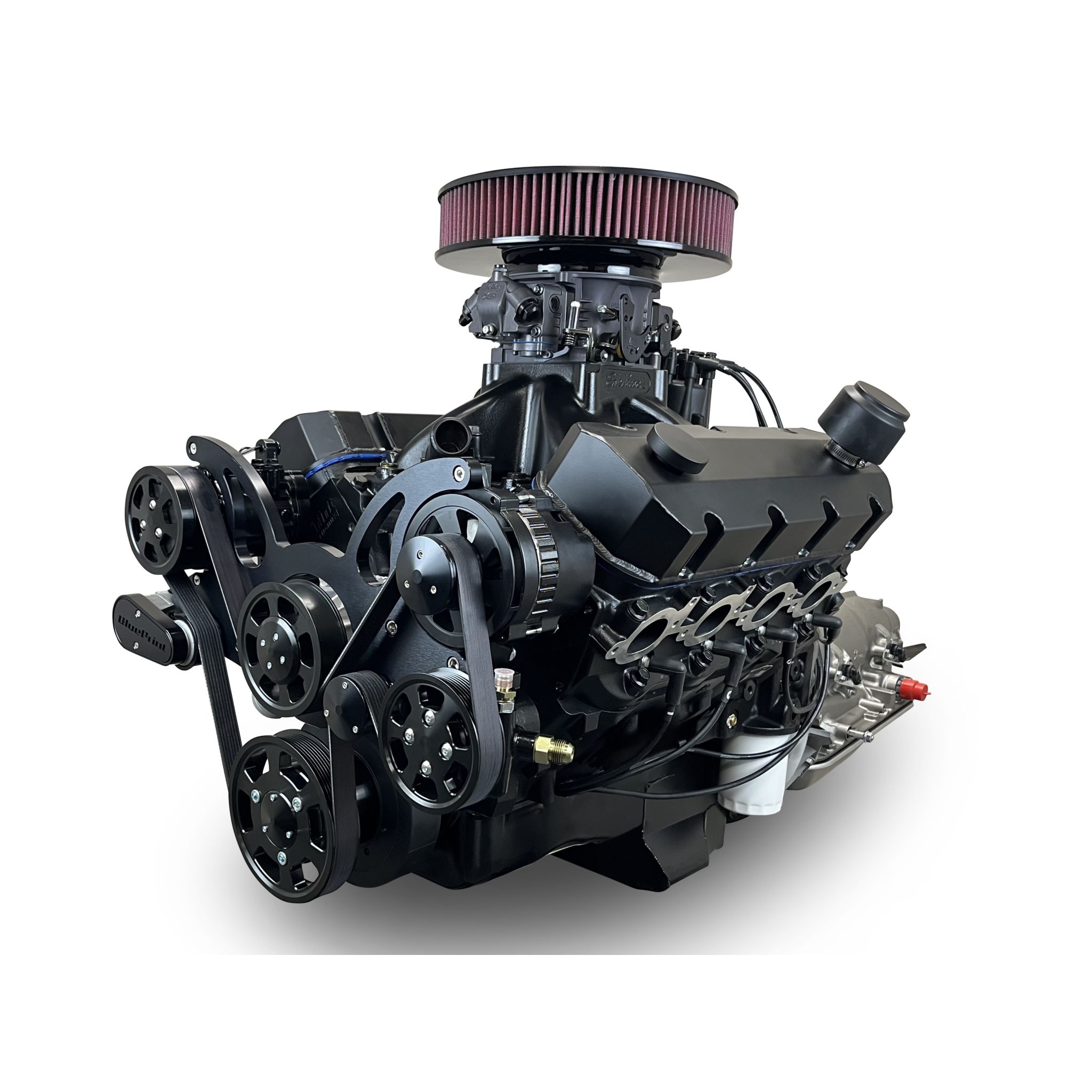

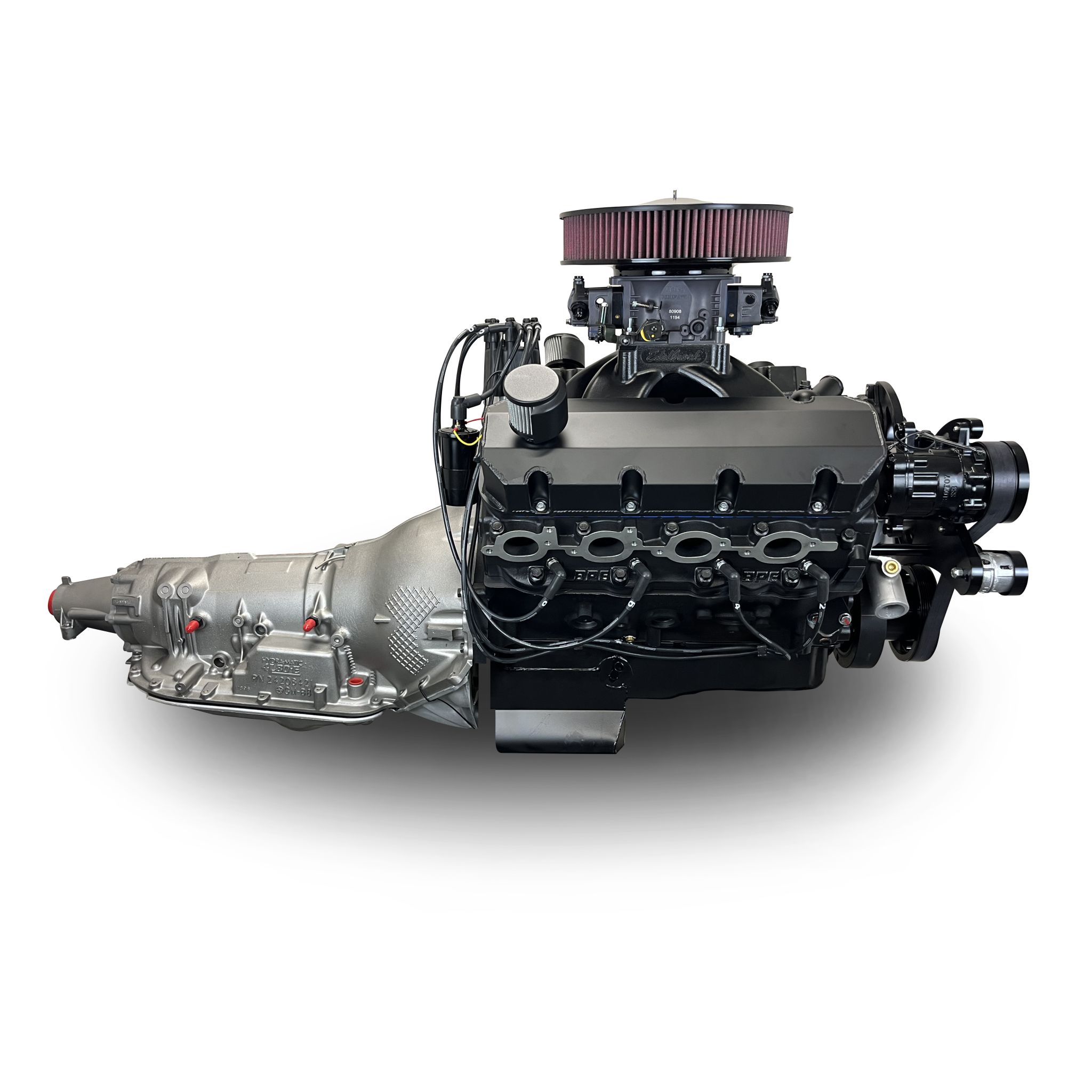

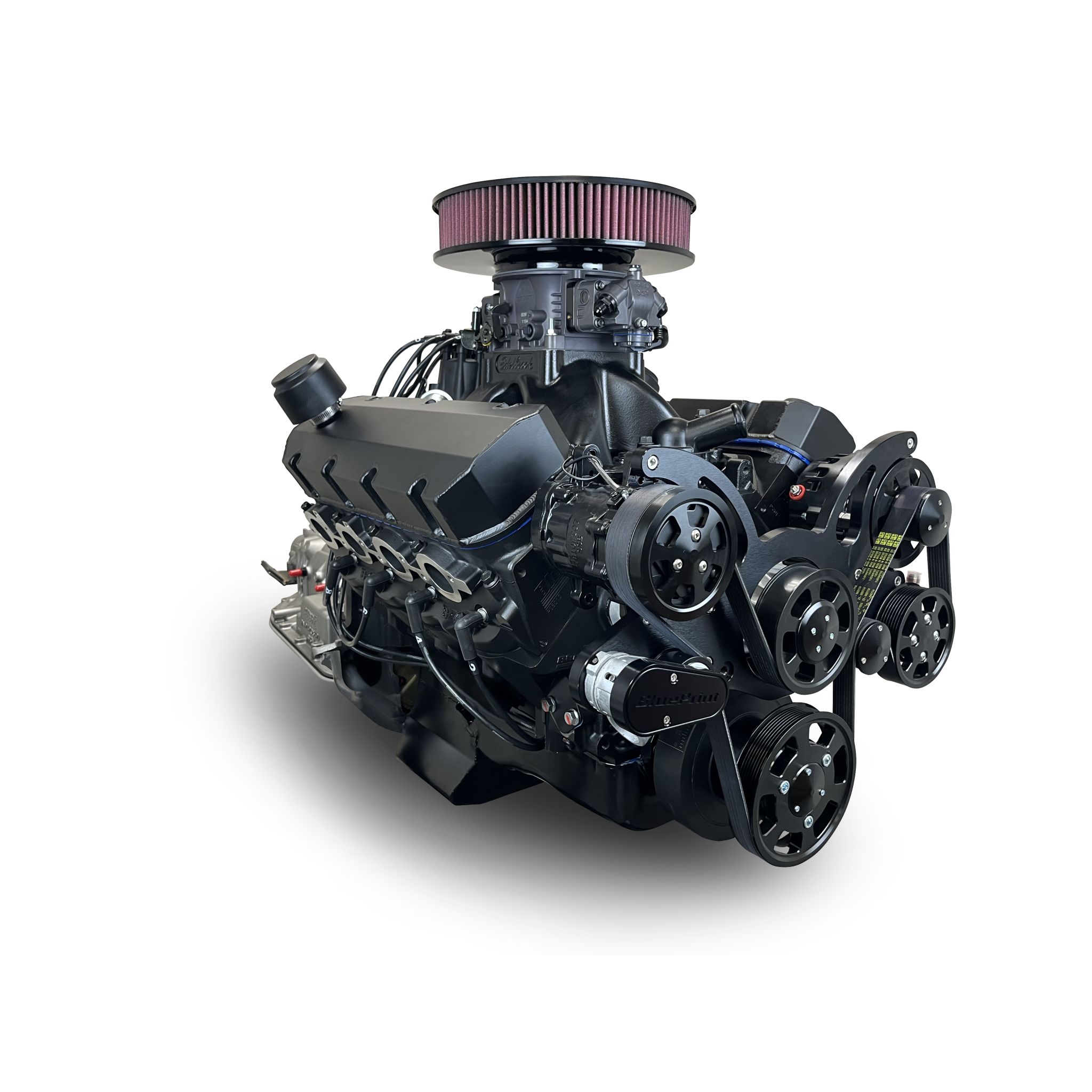

Engine/Trans Package, BLACKOUT EDITION, 4-Bolt Main, 1pc Rear Seal, Forged Pistons, Internally Balanced, Aluminum Heads Rectangle Port, Forged Crank, Single Plane Intake, Roller Cam, 1250 Dominator, Ready Run Distributor, Black Pulley Kit, 4L80 Auto Transmission, Starter
Additional Attributes:
GTIN: 00887753983626
Air Cleaner Included: N/A
Block Description: BluePrint Engines Cast Iron Block – 4 Bolt Main – 4.600 ” Bore
Cam: Hydraulic Roller – .698 Intake / .698 Exhaust Lift – 272 Intake / 282 Exhaust Duration -@.050-110 LSA
Carb/Fuel Injection Included: Yes
Compression Ratio: 11.0:1
Crankshaft Vendor: BluePrint Engines
Cylinder Head Vendor: BluePrint Engines
Cylinder Heads Included: Yes
Cylinder Heads: Aluminum Cylinder Heads
Distributor Included: Yes
Distributor Vendor: BluePrint Pro Billet
Engine Balance: Internally Balanced
Firing Order: 1,8,4,3,6,5,7,2
Flexplate/Flywheel Included: Yes
Fuel Delivery Type: 1250cfm Gen 3 Ultra Dominator – Black – Carbureted
Fuel Delivery Vendor: Holley
Fuel Pump Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 815
Intake Manifold Included: Yes
Intake Manifold Type: Single Plane, Satin Aluminum
Intake Manifold Vendor: Edelbrock
Oil Pan Included: Yes-Rear Sump
Pistons: Forged
Quantity: EA
Rear Main Seal Style: 1 Piece
Recommended Flexplate/Flywheel: BPP871006
Recommended Harmonic Balancer: BPP454I
Recommended Octane Fuel: 91 Octane
Recommended Spark Plug Gap: .040 in.
Recommended Spark Plug: Champion 3015
Recommended Stall Converter: 3800-4200+ RPM
Rotating Assembly: Forged Crank – 4.750 in. Stroke and 6.635 in. Rods
Spark Plug Wires Included: Yes
Spark Plugs Included: Yes
Timing Cover Included: Yes
Timing Requirements: Initial Timing 10-16 – Total Timing 32-34
Torque: 775
Transmission Model: 4L80E
Transmission Type: Automatic
Valve Covers Included: Yes
Water Pump Included: Yes
Extended Information:
Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 60 x 30 x 30 inches
Weight: 750 PG
BLUEPRINT INSTALLATION INSTRUCTIONS (Hemi.BBC)
