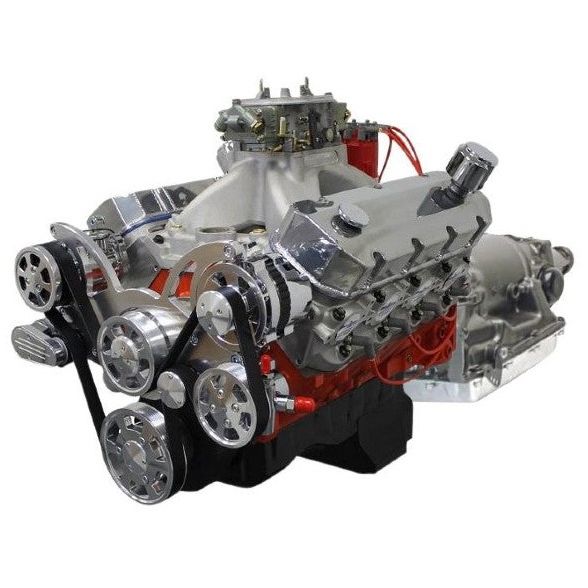

BluePrint Engines GM Big Block Compatible 632 C.I. Standard Edition – 4L80E Automatic Transmission – Polished Pulley Kit – Fuel Injected

Engine/Trans Package, 4-Bolt Main, 1pc Rear Seal, Forged Pistons, Internally Balanced, Aluminum Heads Rectangle Port, Forged Crank, Single Plane Intake, Roller Cam, Holley Sniper 2 EFI 1440CFM, Ready Run Distributor, Polished Pulley Kit, 4L80 Auto Transmission, Starter

Additional Attributes:

GTIN: 00887753983596
Air Cleaner Included: N/A
Block Description: BluePrint Engines Cast Iron Block – 4 Bolt Main – 4.600 ” Bore
Cam: Hydraulic Roller – .698 Intake / .698 Exhaust Lift – 272 Intake / 282 Exhaust Duration -@.050-110 LSA
Carb/Fuel Injection Included: Yes
Compression Ratio: 11.0:1
Crankshaft Vendor: BluePrint Engines
Cylinder Head Vendor: BluePrint Engines
Cylinder Heads Included: Yes
Cylinder Heads: Aluminum Cylinder Heads
Distributor Included: Yes
Distributor Vendor: BluePrint Pro Billet
Engine Balance: Internally Balanced
Firing Order: 1,8,4,3,6,5,7,2
Flexplate/Flywheel Included: Yes
Fuel Delivery Type: Sniper Stealth 4500 Power Adder – Fuel Injected
Fuel Delivery Vendor: Holley
Fuel Pump Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 815
Intake Manifold Included: Yes
Intake Manifold Type: Single Plane, Satin Aluminum
Intake Manifold Vendor: Edelbrock
Oil Pan Included: Yes-Rear Sump
Pistons: Forged
Quantity: EA
Rear Main Seal Style: 1 Piece
Recommended Flexplate/Flywheel: BPP871006
Recommended Harmonic Balancer: BPP454I
Recommended Octane Fuel: 91 Octane
Recommended Spark Plug Gap: .040 in.
Recommended Spark Plug: BPP7938 NGK 7938 BKR5E
Recommended Stall Converter: 3800-4200+ RPM
Rotating Assembly: Forged Crank – 4.750 in. Stroke and 6.635 in. Rods
Spark Plug Wires Included: Yes
Spark Plugs Included: Yes
Timing Cover Included: Yes
Timing Requirements: Initial Timing 10-16 – Total Timing 32-34
Torque: 775
Transmission Model: 4L80E
Transmission Type: Automatic
Valve Covers Included: Yes
Water Pump Included: Yes

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 60 x 30 x 30 inches
Weight: 750 PG

PDF:

BLUEPRINT INSTALLATION INSTRUCTIONS (Hemi.BBC)
