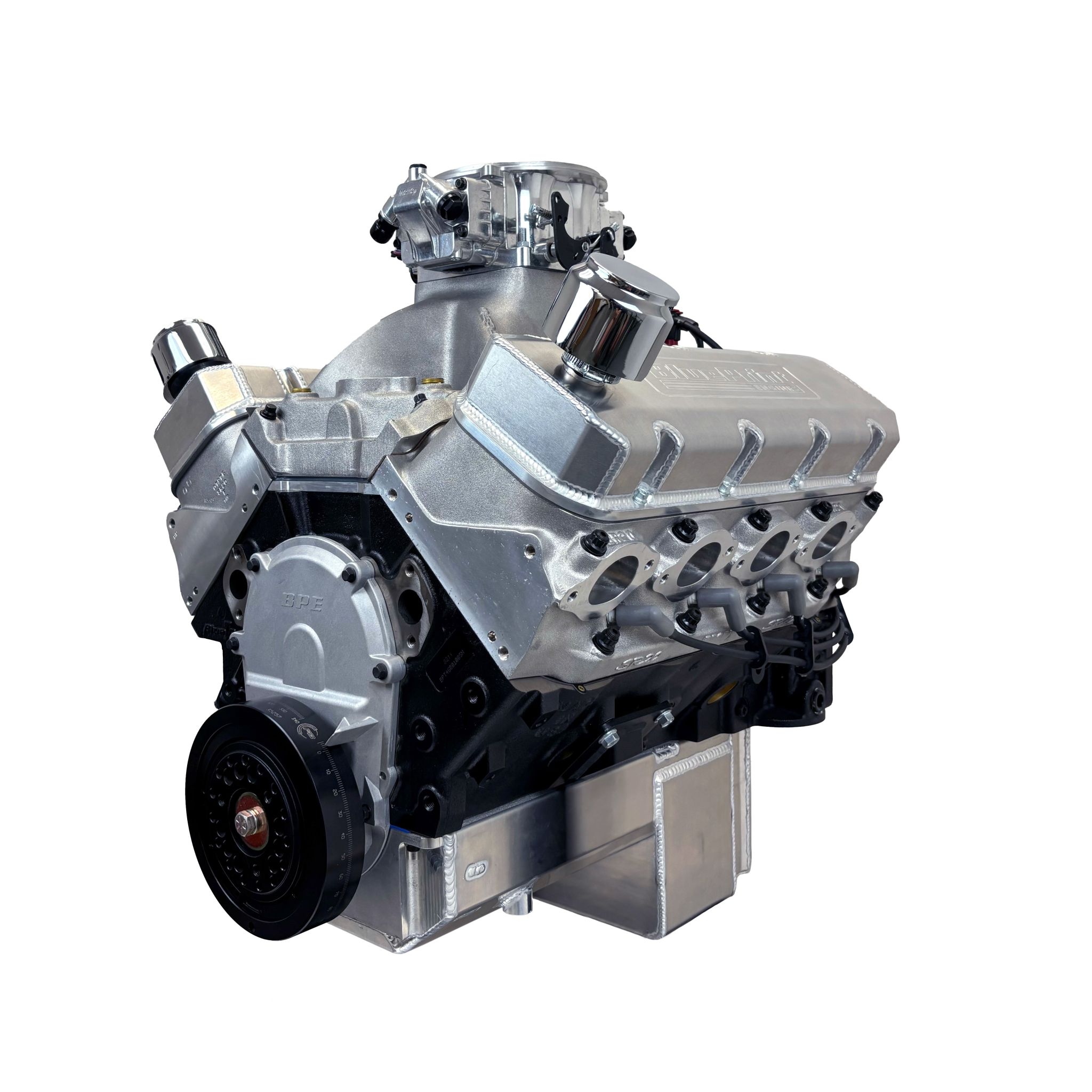

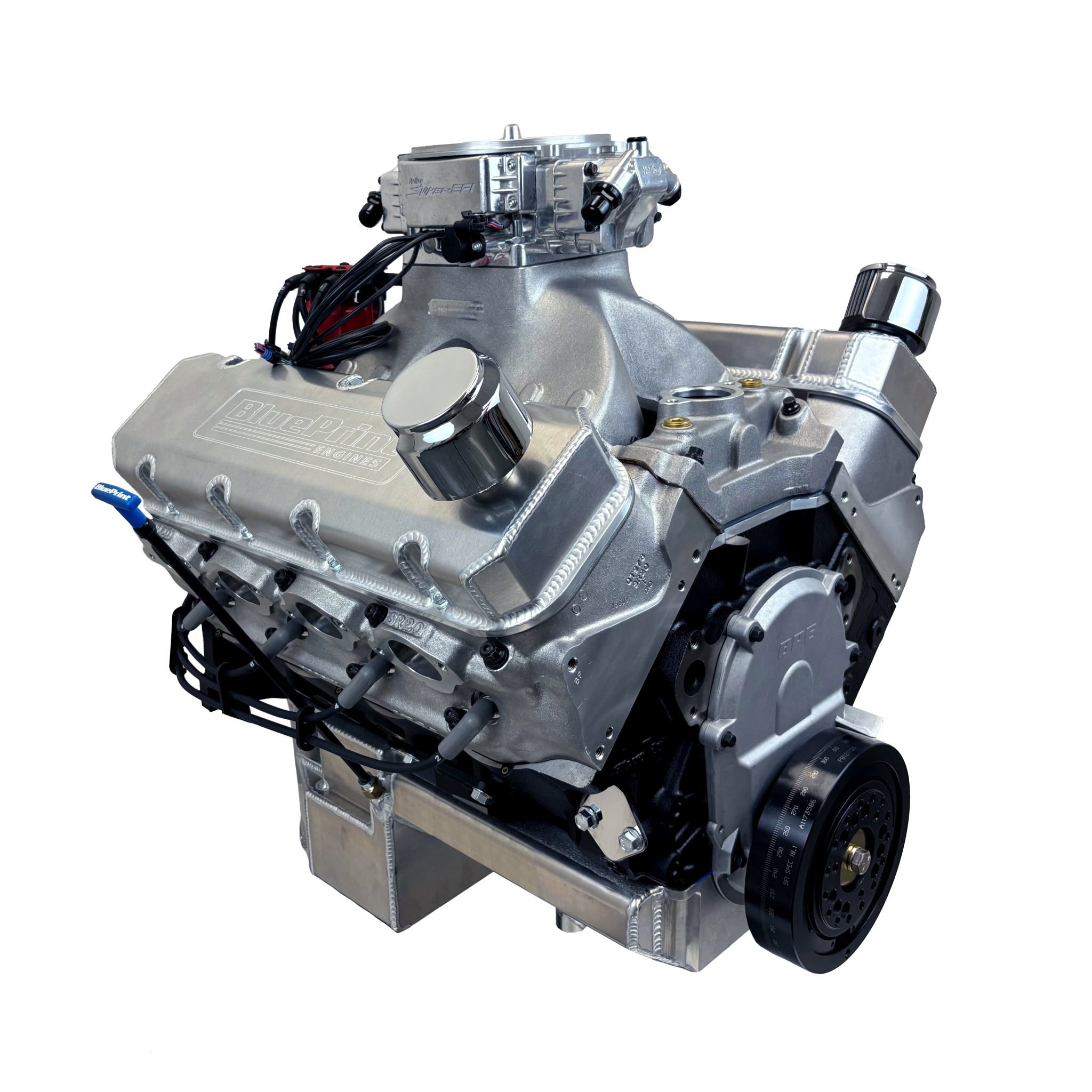

4-Bolt Main, 1pc Rear Seal, Forged Pistons, Forged Crank, Internally Balanced, Brodix SR20 20° Heads, Solid Roller Cam, Single Plane Intake, Holley Sniper 2 EFI 1440CFM MSD Distributor, SFI Balanced, 4-7 Swap Camshaft
Additional Attributes:
GTIN: 00887753985200
Air Cleaner Included: No
Block Description: BluePrint Engines Cast Iron Block – 4 Bolt Main – 4.600″ Bore
Cam: Solid Roller – .873 Intake / .861 Exhaust Lift – 293 Intake / 304 Exhaust Duration – @.050-115 LSA
Carb/Fuel Injection Included: Yes
Compression Ratio: 10.65:1
Crankshaft Vendor: Callies
Cylinder Head Vendor: Brodix SR20
Cylinder Heads Included: Yes
Cylinder Heads: Aluminum Cylinder Heads
Distributor Included: Yes
Distributor Vendor: MSD Pro Billet
Engine Balance: Internally Balanced
Firing Order: 1,8,7,3,6,5,4,2
Flexplate/Flywheel Included: No
Fuel Delivery Type: Sniper Stealth 4500 – Fuel Injected
Fuel Delivery Vendor: Holley
Harmonic Balancer Included: Yes
Horsepower: 1015
Intake Manifold Included: Yes
Intake Manifold Type: Single Plane, Satin Aluminum
Intake Manifold Vendor: Edelbrock
Oil Pan Included: Yes
Pistons: Forged
Quantity: EA
Rear Main Seal Style: 1 Piece
Recommended Flexplate/Flywheel: BPP168T2P – BPP460130
Recommended Harmonic Balancer: PB1211SS
Recommended Octane Fuel: 93 Octane
Recommended Spark Plug Gap: .035 in.
Recommended Spark Plug: NGK4644/BKR7E
Recommended Stall Converter: 3800-4200 RPM
Rotating Assembly: Forged 8 CWT Crank – 4.750 in. Stroke and 6.635 in. Rods
Spark Plug Wires Included: Yes
Spark Plugs Included: Yes
Timing Cover Included: Yes
Timing Requirements: Ignition Box Provided with Engine
Torque: 830
Valve Covers Included: Yes
Water Pump Included: No
Extended Information:
Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 34 x 35 x 44 inches
Weight: 679 PG
BLUEPRINT INSTALLATION INSTRUCTIONS (Hemi.BBC)
