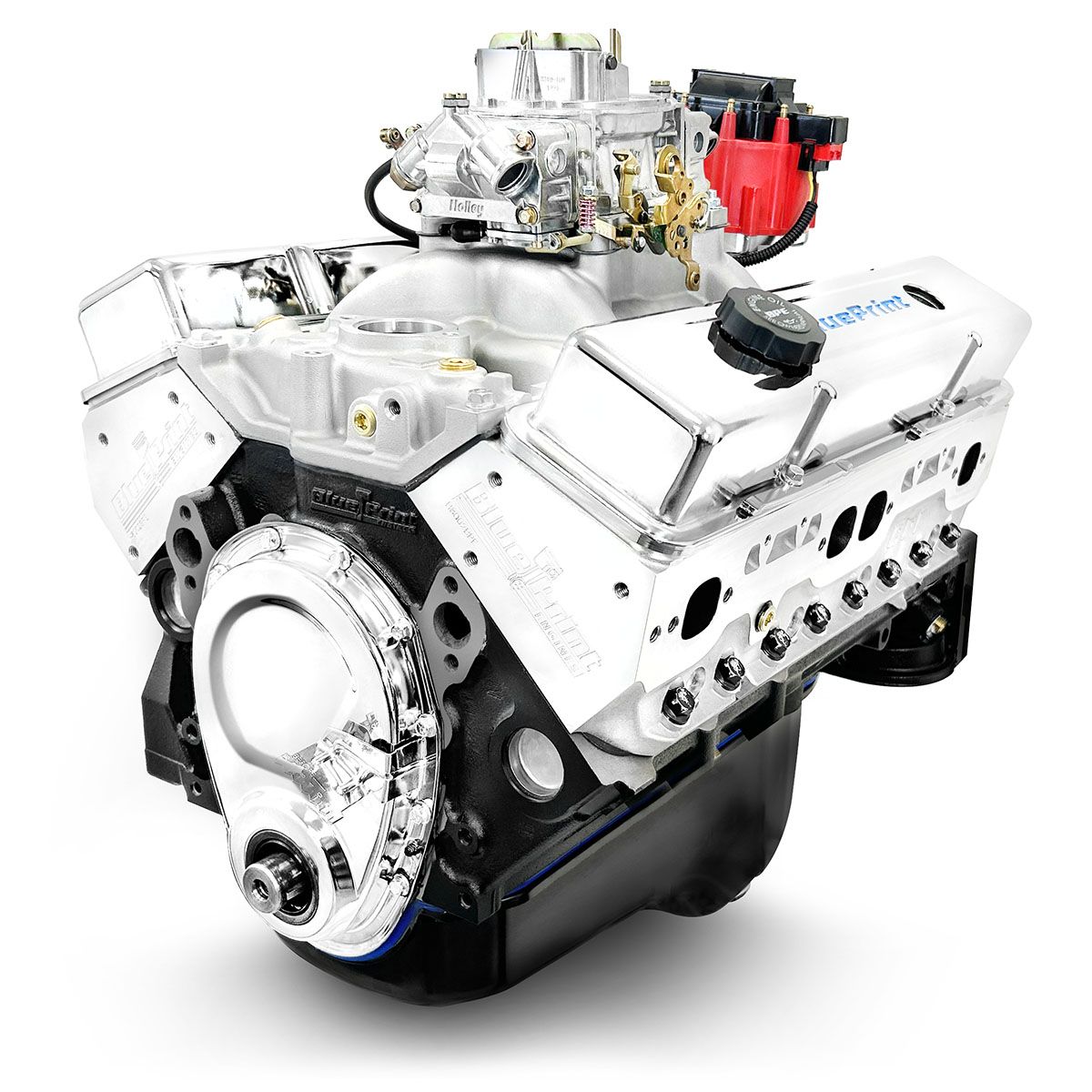

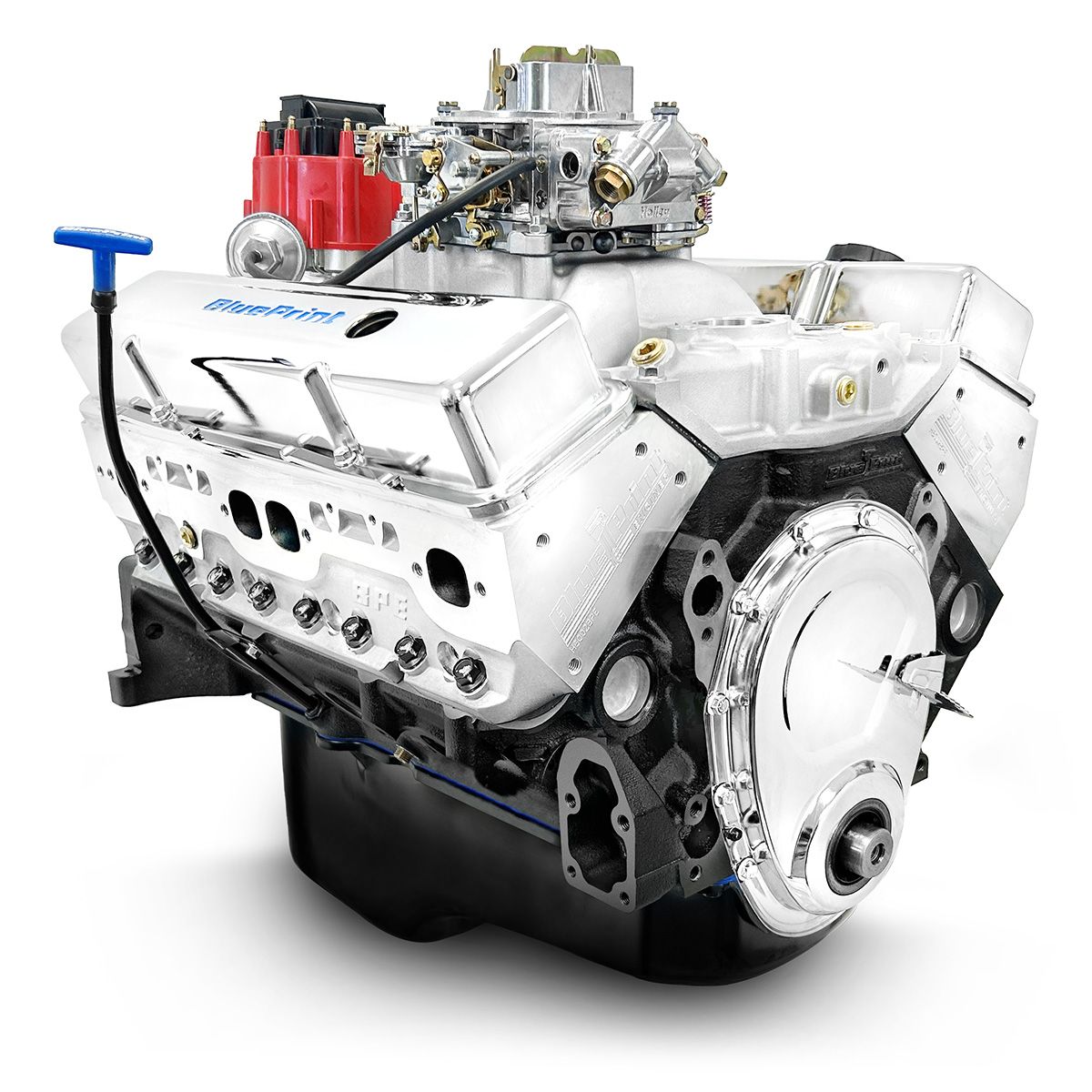

4-Bolt Main, 1pc Rear Seal, Hyp Piston, Externally Balanced Front and Rear, Passenger Side Dipstick, Aluminum Heads, Roller Cam, 9:1 Comp, Tinware, Intake, Carb, HEI Distributor, 87 Octane
Additional Attributes:
GTIN: 00887753743824
Air Cleaner Included: No
Block Description: BluePrint Engines Cast Iron Block – 4 Bolt Main
Cam: Hydraulic Roller – .495 Intake / .502 Exhaust Lift – 220 Intake / 224 Exhaust Duration -@ .050-114 LSA
Carb/Fuel Injection Included: Yes
Compression Ratio: 9.0:1
Crankshaft Vendor: BluePrint Engines
Cylinder Head Vendor: BluePrint Engines
Cylinder Heads Included: Yes
Cylinder Heads: Aluminum Cylinder Heads
Distributor Included: Yes
Distributor Vendor: BluePrint Engines
Engine Balance: Externally Balanced
Firing Order: 1,8,4,3,6,5,7,2
Flexplate/Flywheel Included: No
Fuel Delivery Type: Classic 750cfm Vacuum Secondary Carburetor w/ Electric Choke – Carbureted
Fuel Delivery Vendor: Holley
Harmonic Balancer Included: No
Horsepower: 410
Intake Manifold Included: Yes
Intake Manifold Type: Dual Plane, Satin Aluminum
Intake Manifold Vendor: BluePrint Engines
Oil Pan Included: Yes-Rear Sump
Pistons: Hypereutectic
Quantity: EA
Rear Main Seal Style: 1 Piece
Recommended Flexplate/Flywheel: BPP871006 – BPP399173 – BPP300116
Recommended Harmonic Balancer: BPP400L
Recommended Octane Fuel: 87 Octane
Recommended Spark Plug Gap: .035 in.
Recommended Spark Plug: BPP7938 – NGK 7938 BKR5E
Recommended Stall Converter: 2000-2400 RPM
Rotating Assembly: Cast Crank – 3.75 in. Stroke and 5.7 in. Rods – This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
Spark Plug Wires Included: No
Spark Plugs Included: No
Timing Cover Included: Yes
Timing Requirements: Initial Timing 10-16 – Total Timing 32-34
Torque: 422
Valve Covers Included: Yes
Water Pump Included: No
Extended Information:
Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 27 x 30 x 38 inches
Weight: 475 PG
