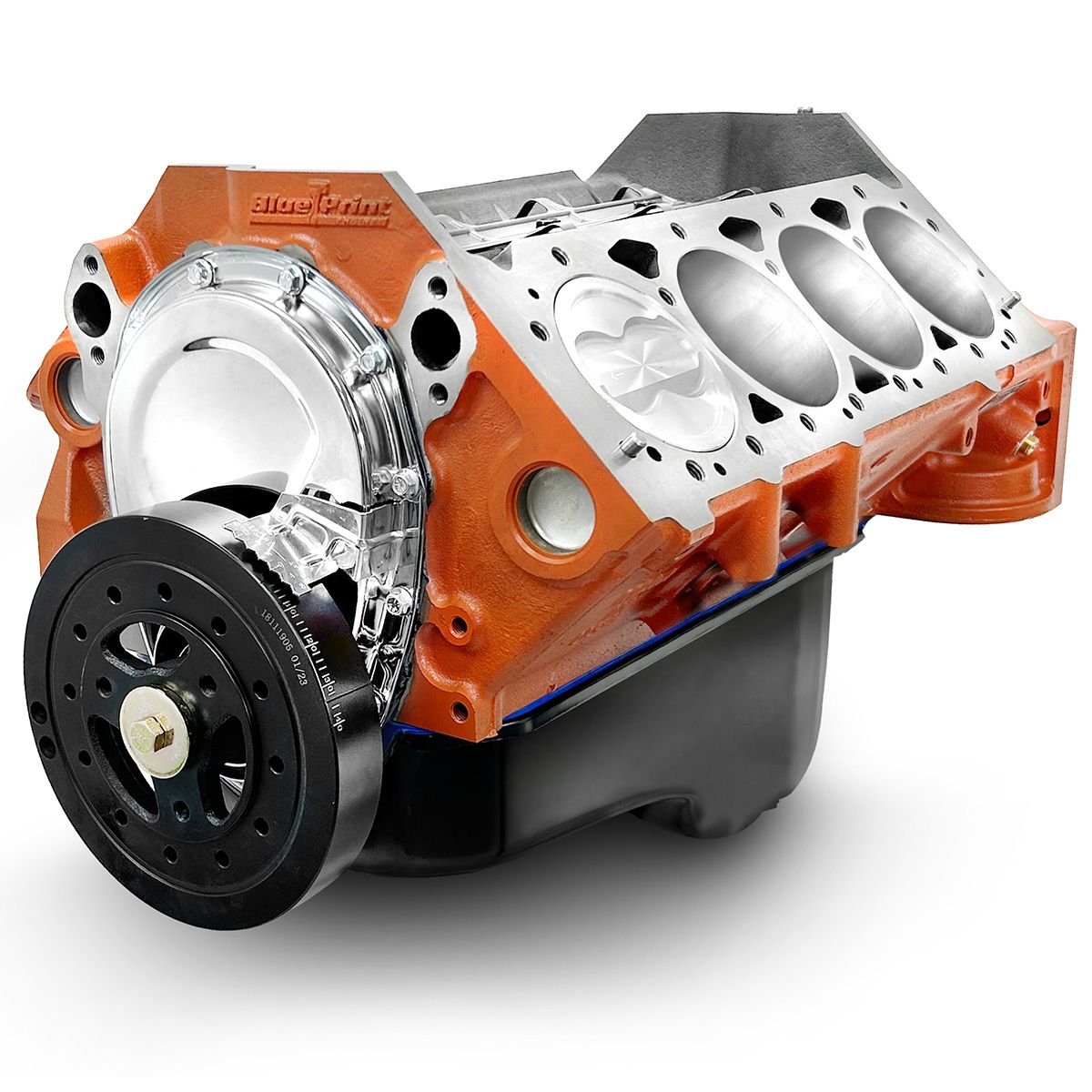

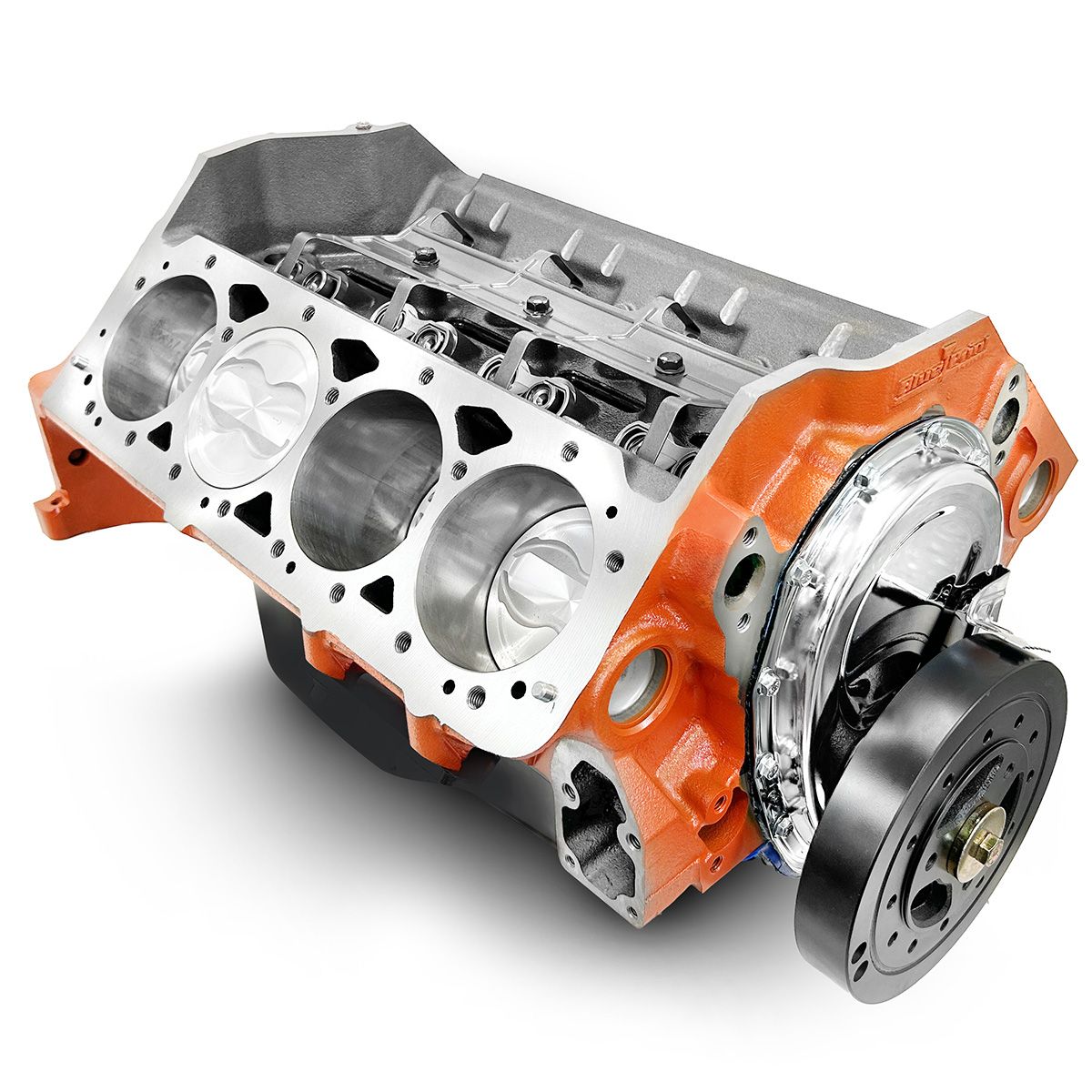

SBC Short Block Plus, 4-Bolt Main Block, 1pc Rear Seal, Forged Crank, Forged Pistons, Hyd Roller Cam, Internally Balanced Front – Externally Balanced Rear, Passenger Side Dipstick, Oil Pan, Timing Cover, Balancer
Additional Attributes:
GTIN: 00887753908414
Air Cleaner Included: No
Block Description: BluePrint Engines Cast Iron Block – 4 Bolt Main
Cam: Hydraulic Roller – .495 Intake / .502 Exhaust Lift – 220 Intake / 224 Exhaust Duration -@ .050-114 LSA
Carb/Fuel Injection Included: No
Compression Ratio: 9.5:1 w/ 64cc Head and .041 in. Head Gasket
Crankshaft Vendor: BluePrint Engines
Cylinder Head Vendor: N/A
Cylinder Heads Included: No
Cylinder Heads: N/A
Distributor Included: No
Distributor Vendor: N/A
Engine Balance: Internally Balanced Front – Externally Balanced Rear
Firing Order: 1,8,4,3,6,5,7,2
Flexplate/Flywheel Included: No
Fuel Delivery Type: (Not Included) Recommended 750cfm Carburetor or Higher Depending on Head Choice
Fuel Delivery Vendor: N/A
Harmonic Balancer Included: Yes
Horsepower: 430
Intake Manifold Included: No
Intake Manifold Type: N/A
Intake Manifold Vendor: N/A
Oil Pan Included: Yes-Rear Sump
Pistons: Forged
Quantity: EA
Rear Main Seal Style: 1 Piece
Recommended Flexplate/Flywheel: BPP871006 – BPP399173 – BPP300116
Recommended Harmonic Balancer: BPP350
Recommended Octane Fuel: 91 Octane or Higher Depending on Cylinder Head Choice
Recommended Spark Plug Gap: .035 in.
Recommended Spark Plug: BPP7938 – NGK 7938 BKR5E
Recommended Stall Converter: 2000-2400 RPM
Rotating Assembly: Forged Crank – 3.75 in. Stroke and 5.7 in. Rods – This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
Spark Plug Wires Included: No
Spark Plugs Included: No
Timing Cover Included: Yes
Timing Requirements: Initial Timing 10-16 – Total Timing 32-34
Torque: 450
Valve Covers Included: No
Water Pump Included: No
Extended Information:
Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 27 x 30 x 38 inches
Weight: 350 PG
