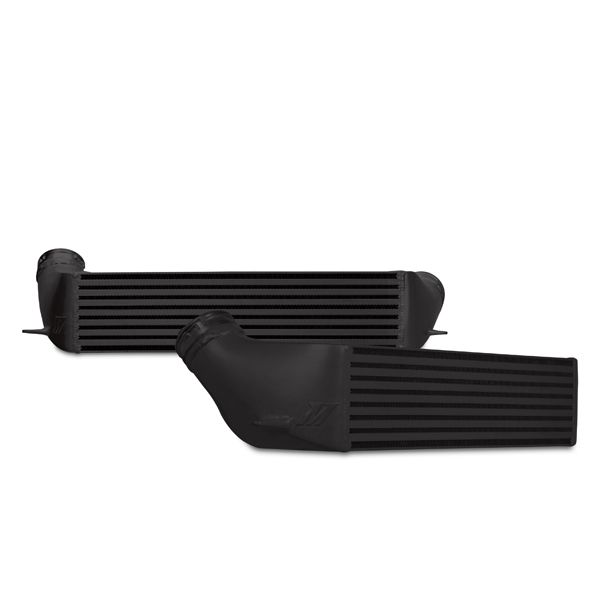

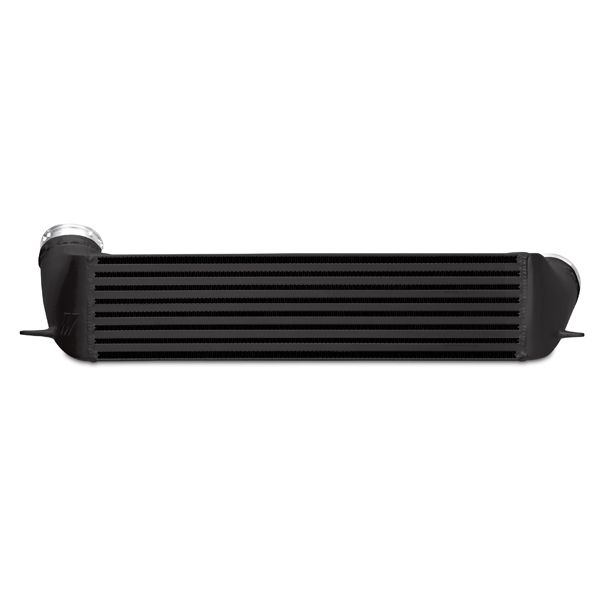

The E90 BMW is a great platform for soaking up highway miles during the weekday and taking to the track on the weekend.With some minor modifications, the straight six is capable of producing substantial power.Added power will push the limits of the stock charge air system, necessitating an upgrade for the stock tube-and-fin intercooler, which is prone to heat soak.Mishimoto has developed a highly efficient bar-and-plate intercooler engineered specifically for the BMW 335i/335xi/135i.The Mishimoto intercooler is a direct-fit unit and features a 22-percent increase in core volume while requiring no modification to your vehicle.This cooler is constructed with cast end tanks and precision CNC-machined aluminum quick disconnects for use with the factory intercooler piping.The Mishimoto BMW 335i/335xi/135i performance intercooler reduces intake temperatures by 35 F and provides an increase of 20+ hp while retaining factory boost pressure across the core.This intercooler features precision TIG welding and is available with a silver or black finish.With a one-hour installation, substantial power and temperature benefits, and a lifetime warranty, the Mishimoto BMW 335i/335xi/135i performance intercooler is the perfect upgrade for your stock cooler!
Additional Attributes:
GTIN: 00748354009736
CARB EO Number: D-759
Install Difficulty: 2
OptionLabel: Black
SellingPoint01: Direct fit for the E9X Chassis with N54/N55 engines
SellingPoint02: 20 hp increase
SellingPoint03: 35 F (19.45 C) reduction in AIT
SellingPoint04: 22-percent increase in core size
SellingPoint05: Includes CNC-machined quick-disconnect fittings to mate with OEM pipes
SellingPoint06: Easy install-under an hour
SellingPoint07: Direct fit-no modifications required
SellingPoint08: Bar-and-plate construction
SellingPoint09: 100-percent aluminum, TIG-welded with cast end tanks
SellingPoint10: CARB EO number: D-759
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2007-2011 BMW 335i/xi Sedan–2007-2013 BMW 335i/xi/is Coupe–2007-2013 BMW 335i/xi/is Convertible–2008-2013 BMW 135i/is Coupe–2008-2013 BMW 135i/is Convertible–2011 BMW 1M Coupe–2009-2013 BMW Z4 sDrive 35i/is–2012+ BMW X1 xDrive35i
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: E90–E92–E93–E82
TechSpec Core Height (in): 5.12
TechSpec Core Length (in): 20.47
TechSpec Core Thickness (in): 5.12
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N54–N55
TechSpec Includes: (1) Mishimoto Intercooler–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 3
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 6.8
TechSpec Overall Length (in): 27.8
TechSpec Overall Width (in): 8.7
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 15.8
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 30 x 11 x 9 inches
Weight: 20 PG
