BMW Gen 1 B58 Charge Air Cooler Manifold - Custom Finish

BMW Gen 1 B58 Charge Air Cooler Manifold – Custom Finish

$7,247.81

With the larger and more efficient intercooler performance, lower pressure drop, included fuel rail & kit for top feed port injection, and other industry-leading features, the CSF Manifold allows Gen 1 B58 owners to maximize performance.

Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core – Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
Improved slotted mounting holes on throttle body side for easier installation.
Easy Access to Spin-Off Oil Filter for Quick Oil Changes – No Need to Uninstall Manifold Every Oil Change – Counter Balanced Design for Optimized Airflow
Integrated Sensor Pad with Three 1/8″ NPT Ports to Measure Additional Parameters

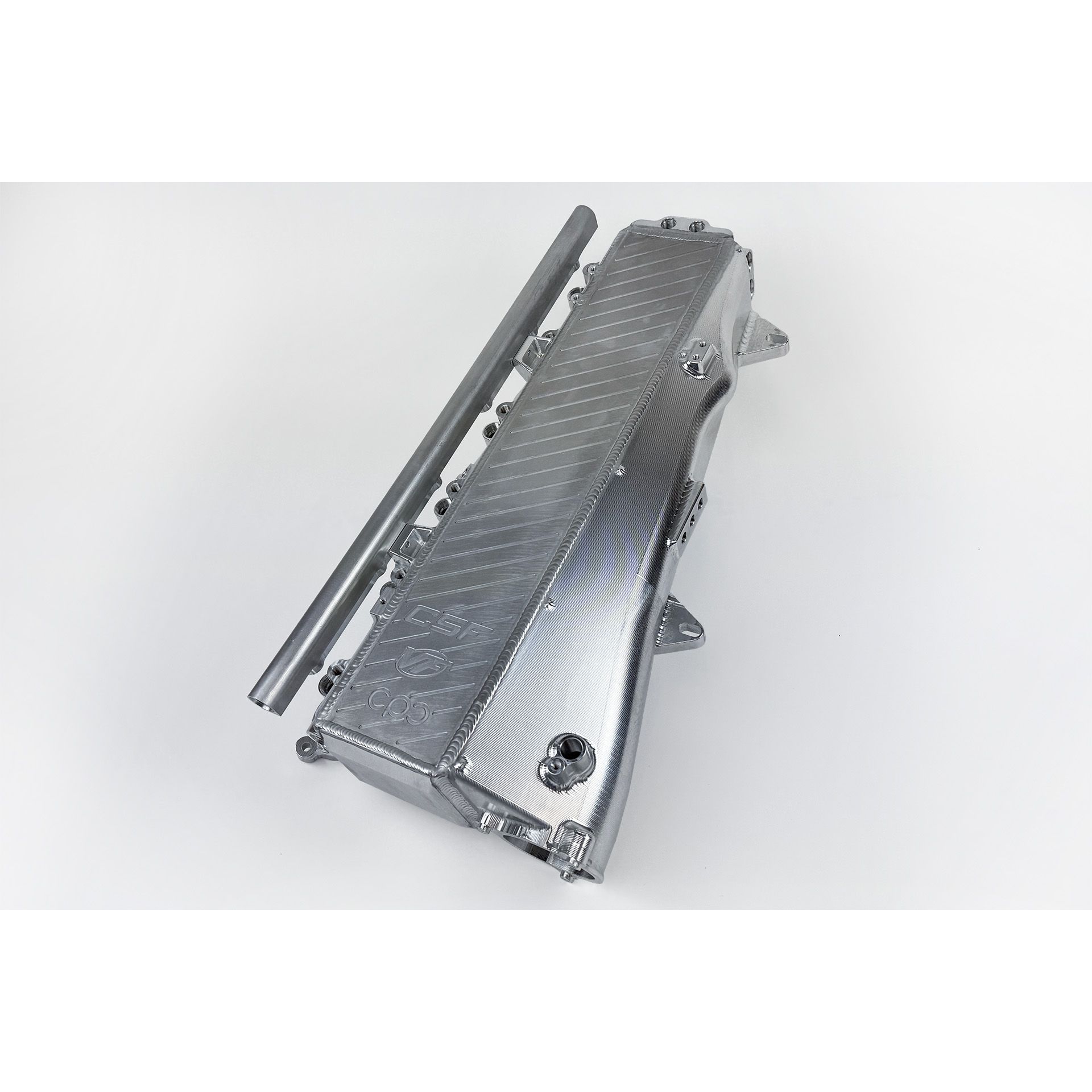

Included Optional Fuel Rail for Top Feed Port Injection
Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
Individual 1/8″ NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection – Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection

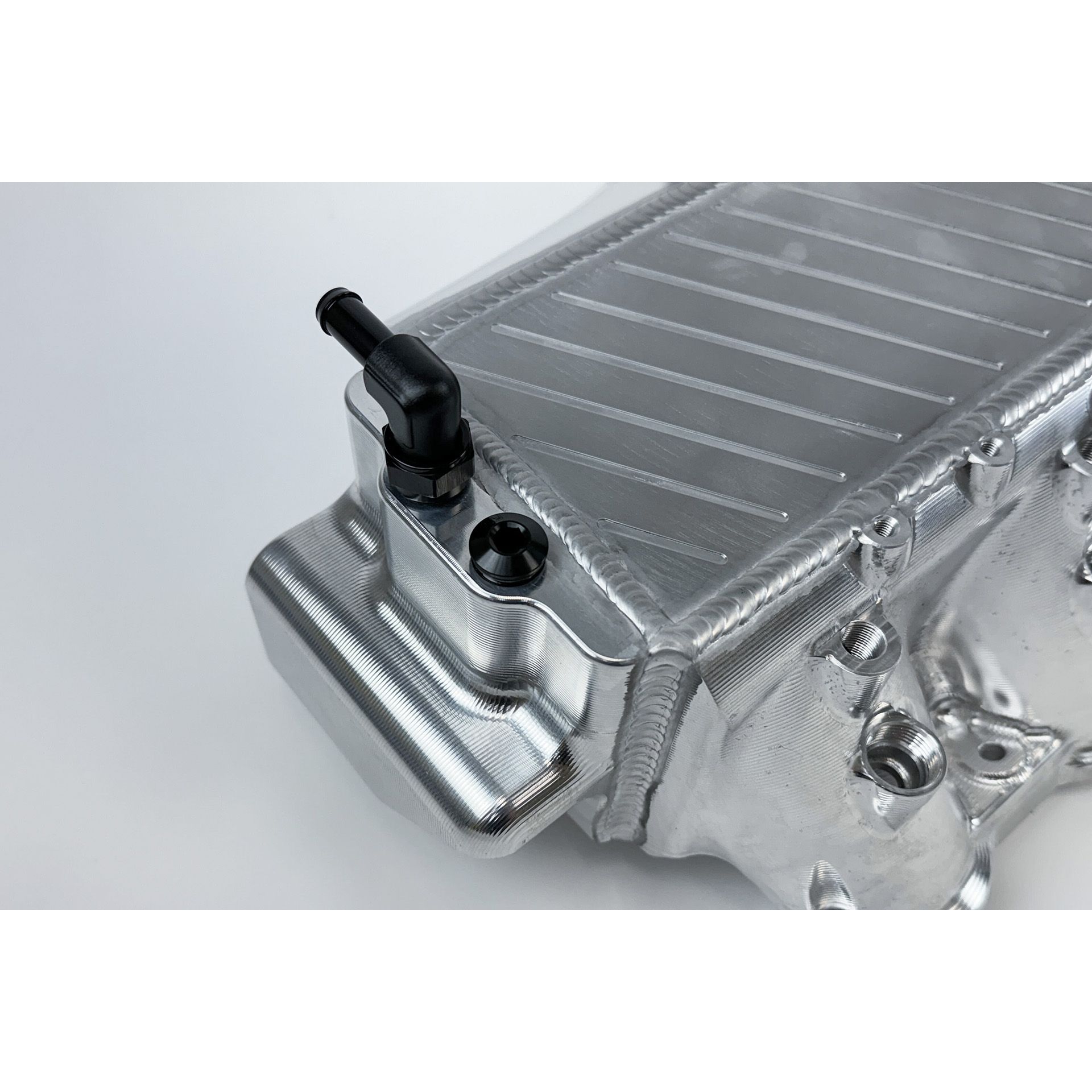

Individual 1/8″ NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
Included KIYLEX Thermal Rejection Manifold Spacer – Proven to lower intake manifold temperatures by up to 15%
Plug-and-Play design, Requiring No Modifications to Install

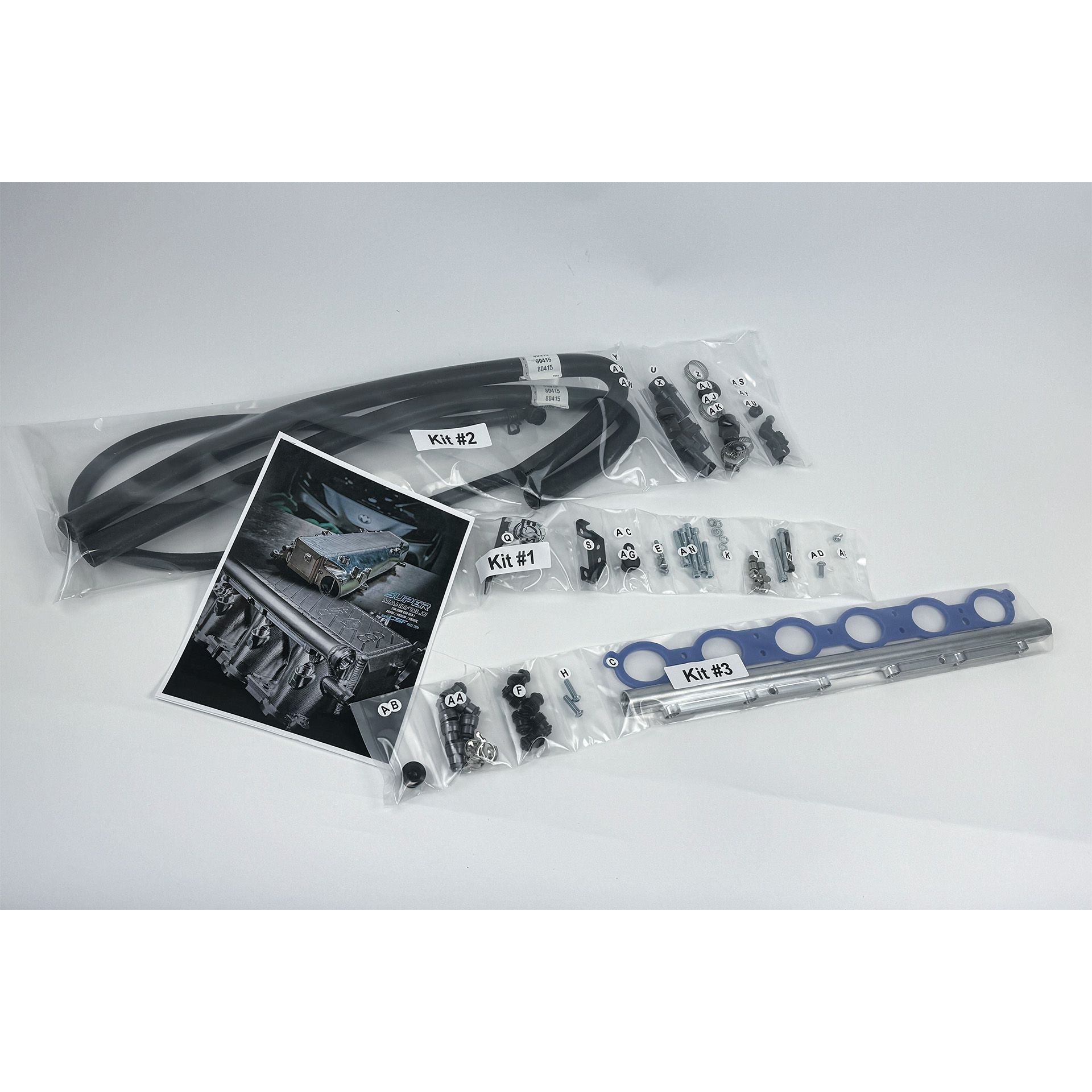

Includes Hardware and Installation Kit with Picture Diagrams Containing 32 Different Parts for Easy Installation

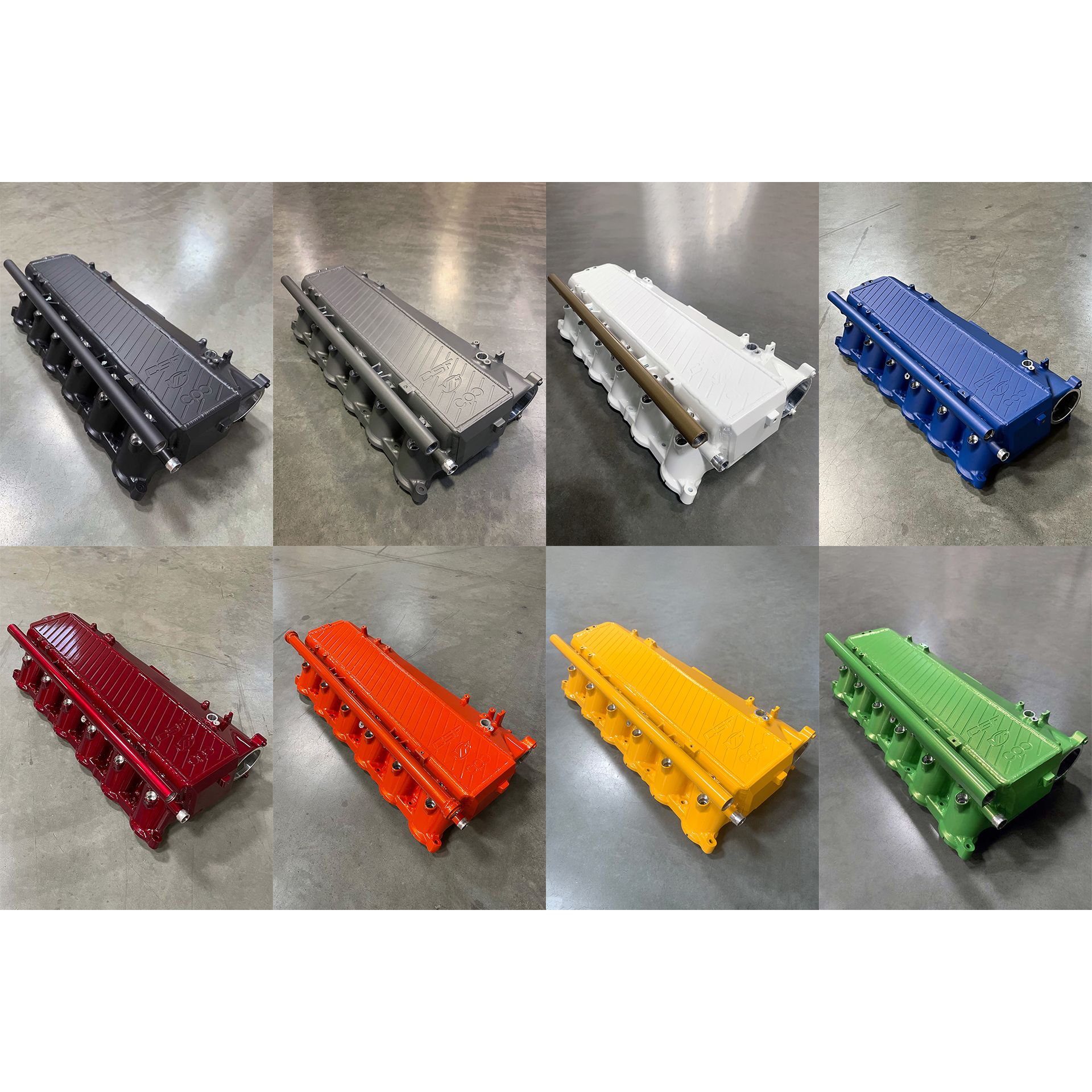

Custom Finish (Available in Raw Billet – CSF #8300 or Thermal Black Heat Dispersion Cerakote – CSF #8300B)
Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
Significantly Lower Pressure Drop Across the Core Compared to OEM
Designed in SolidWorks Using Computational Fluid Dynamics (CFD) – Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core

SKU: GQPL-8300C Brands: CSF Cooling - Racing & High Performance Division

Easy Access to Spin-Off Oil Filter With Counter Balanced Design: CSF incorporated a recessed design towards the back of the manifold that allows easy access to the spin-off oil filter. This means you do not have to remove your manifold every time you want to change your oil. While this design feature isn't unique to the CSF manifold, CSF is the only company to account for the airflow issues such a recess can create. CSF Engineers designed and tested a counter balanced protrusion using SolidWorks CFD software. This protrusion sits above the recess to offset the airflow tabulations. This feature ensures smooth air delivery into the rear of the core for the best possible cooling.

Additional Attributes:

GTIN: 00710353083000
ADD-ON: 8131B
Color: Custom FInish
Core Color: Raw Aluminum
Core Material: Aluminum
Core Row Quantity: 2
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Billet Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: Yes
Outlet Fitting Gender: Male
Prop 65 Yes/No: No
Type: Air-to-Water
Universal Or Specific Fit: Specific

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 28 x 15 x 10 inches
Weight: 22 PG

Weight	9.98 kg
Dimensions	28 × 15 × 10 cm
