BMW Gen 2 B58 Race X Charge Air Cooler Manifold - Thermal Dispersion Black

BMW Gen 2 B58 Race X Charge Air Cooler Manifold – Thermal Dispersion Black

$10,116.56

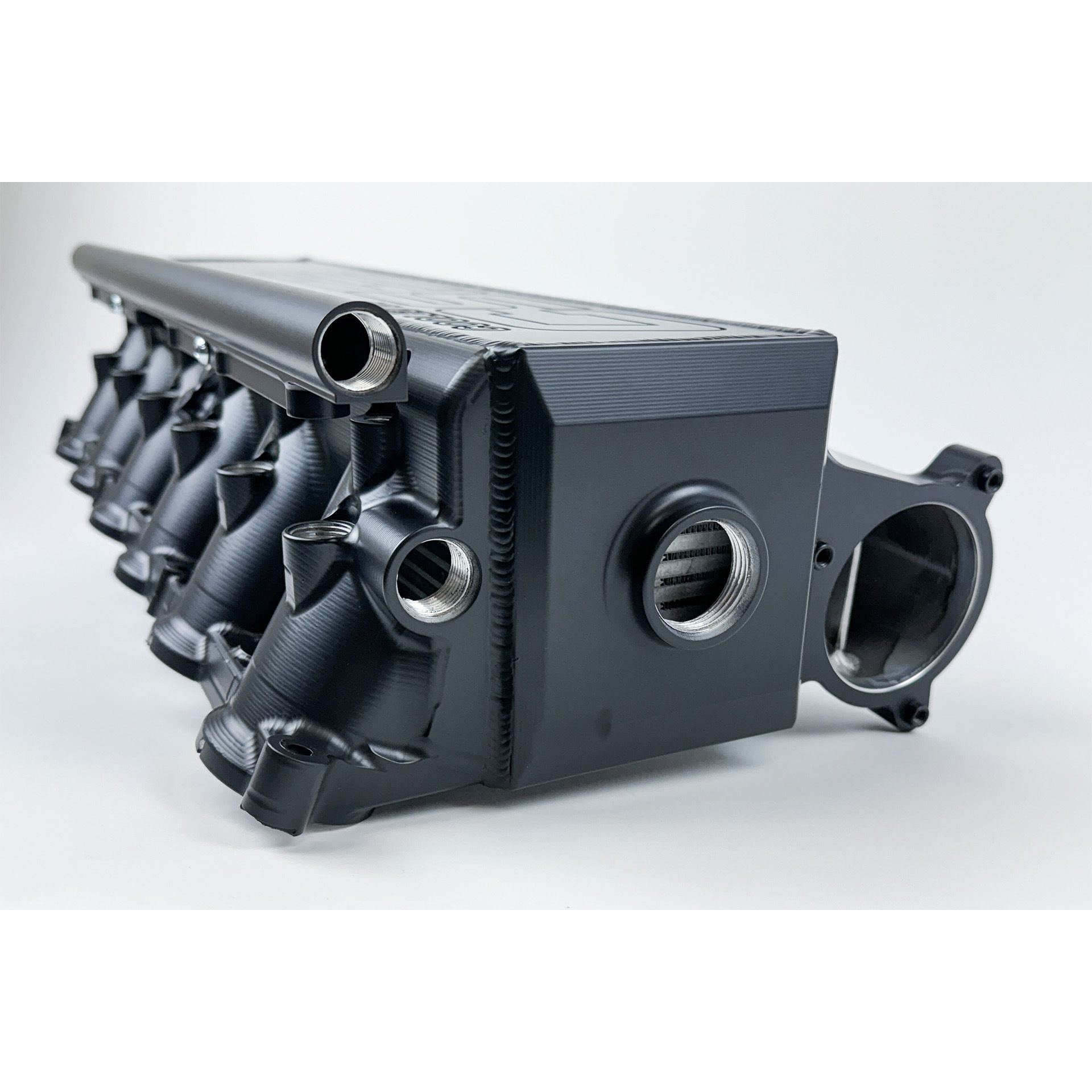

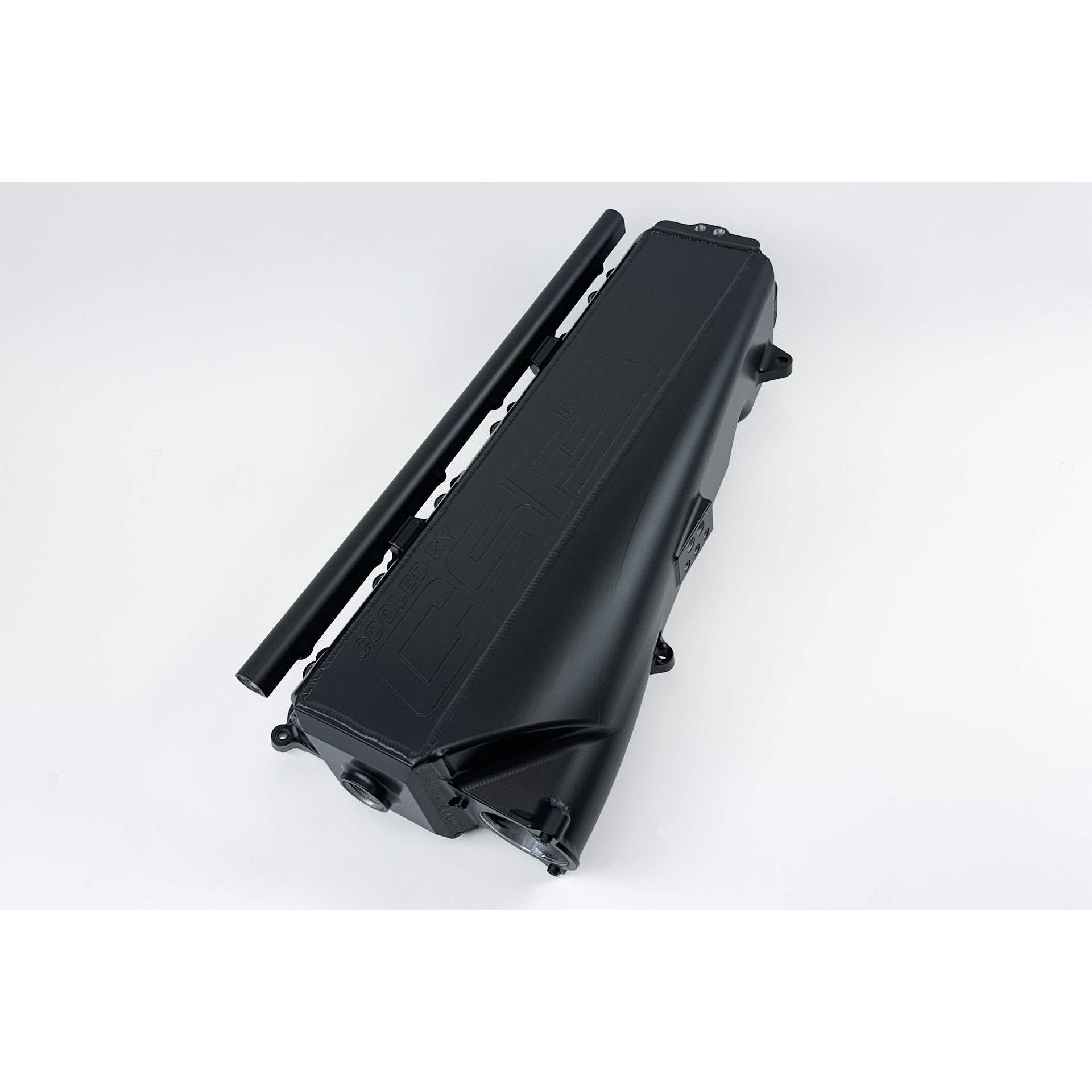

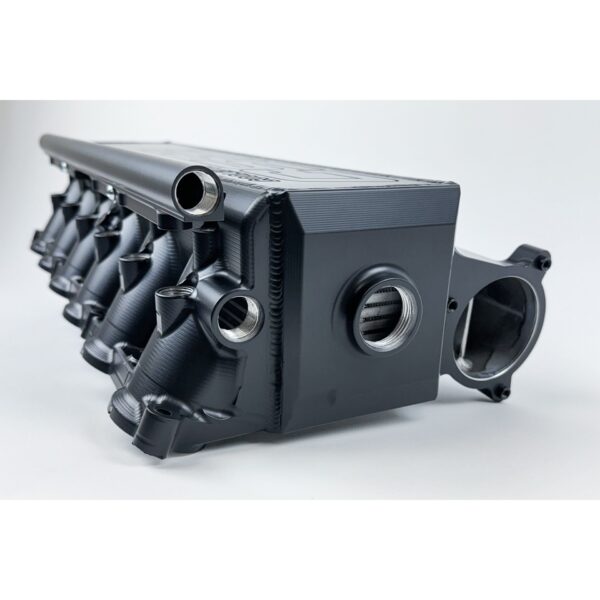

With the largest and most efficient intercooler performance, lower pressure drop, port injection, and other industry-leading features, the CSF Race X Manifold allows Gen 2 B58 owners to maximize performance.

Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core – 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) – 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows
Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
Improved slotted mounting holes on throttle body side for easier installation
Easy Access to Spin-Off Oil Filter for Quick Oil Changes
Integrated Sensor Pad with Two 1/4″ and Three 1/8″ NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum
Included Fuel Rail for Top Feed Port Injection
Individual 1/8″ NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection – Allows for Even Spray Distribution and Control for Maximum Performance
Individual 1/8″ NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
Included KIYLEX Thermal Rejection Manifold Spacer – Proven to lower intake manifold temperatures by up to 15%
Some modifications to install – this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
Includes Hardware and Installation Kit with Picture Diagrams and Instructions
Comes Finished in Thermal Black Heat Dispersion Cerakote (Available in Raw Billet – CSF #8400 or Custom Finishes – CSF #8400C)
Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
Core can be setup for dual or single pass: The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Includes CNC machined plug for dual-pass configuration
Designed in SolidWorks Using Computational Fluid Dynamics (CFD)

SKU: GQPL-8400B Brands: CSF Cooling - Racing & High Performance Division

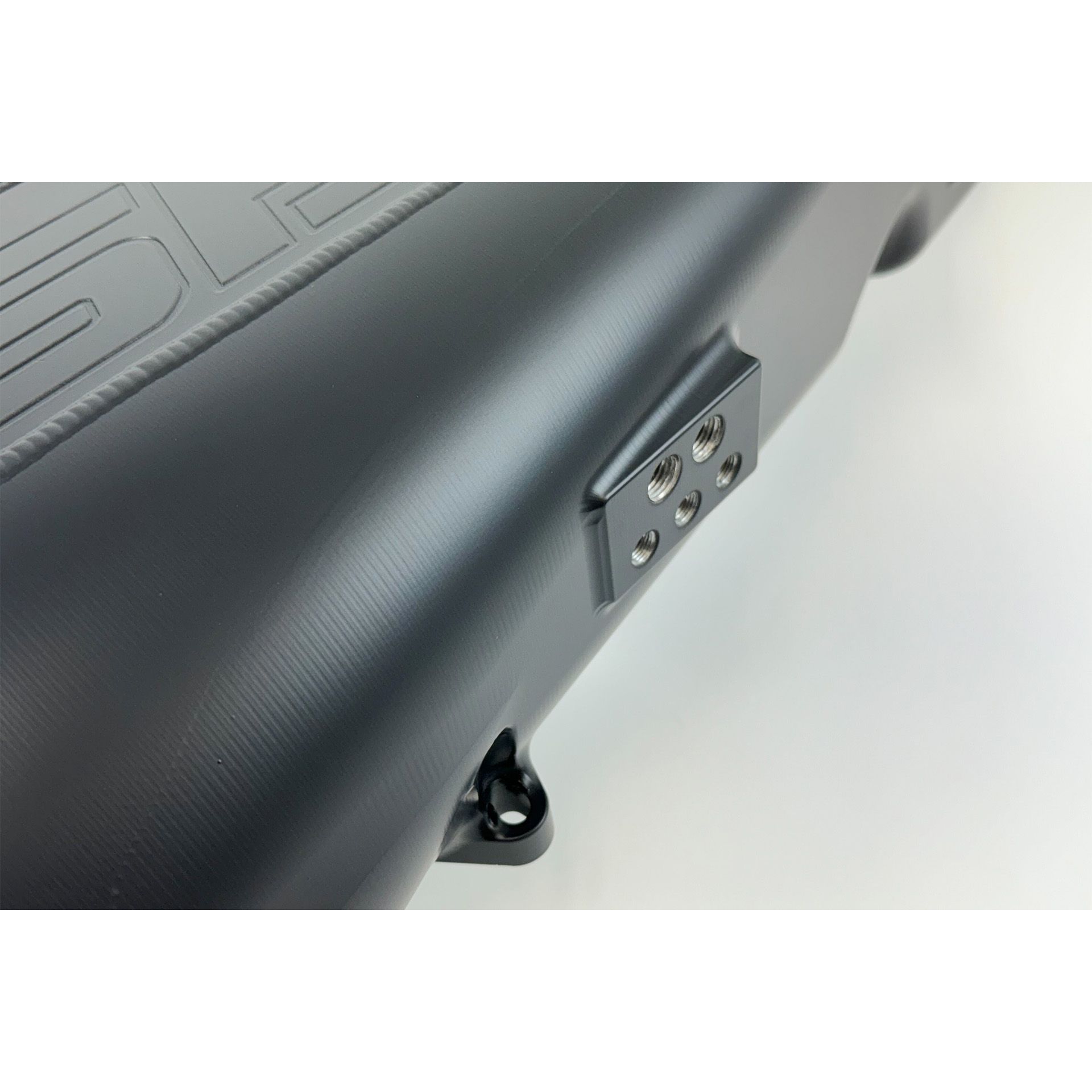

CSF has included a port pad into the machining of the tank on the manifold inlet side. The ports can be used to measure additional parameters or as an additional vacuum source. The Race X Manifold has two additional 1/4" NPT ports to go along with the standard three 1/8" NPT ports. Each port can be plugged with the included hardware kit if they are not used.

Additional Attributes:

GTIN: 00710353084007
ADD-ON: 7226
Color: Thermal Black Heat Dispersion Cerakote
Core Color: Raw Aluminum
Core Material: Aluminum
Core Row Quantity: 2
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Billet Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: Yes
Outlet Fitting Gender: Male
Prop 65 Yes/No: No
Type: Air-to-Water
Universal Or Specific Fit: Specific

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 28 x 15 x 10 inches
Weight: 26 PG

Weight	11.79 kg
Dimensions	28 × 15 × 10 cm
