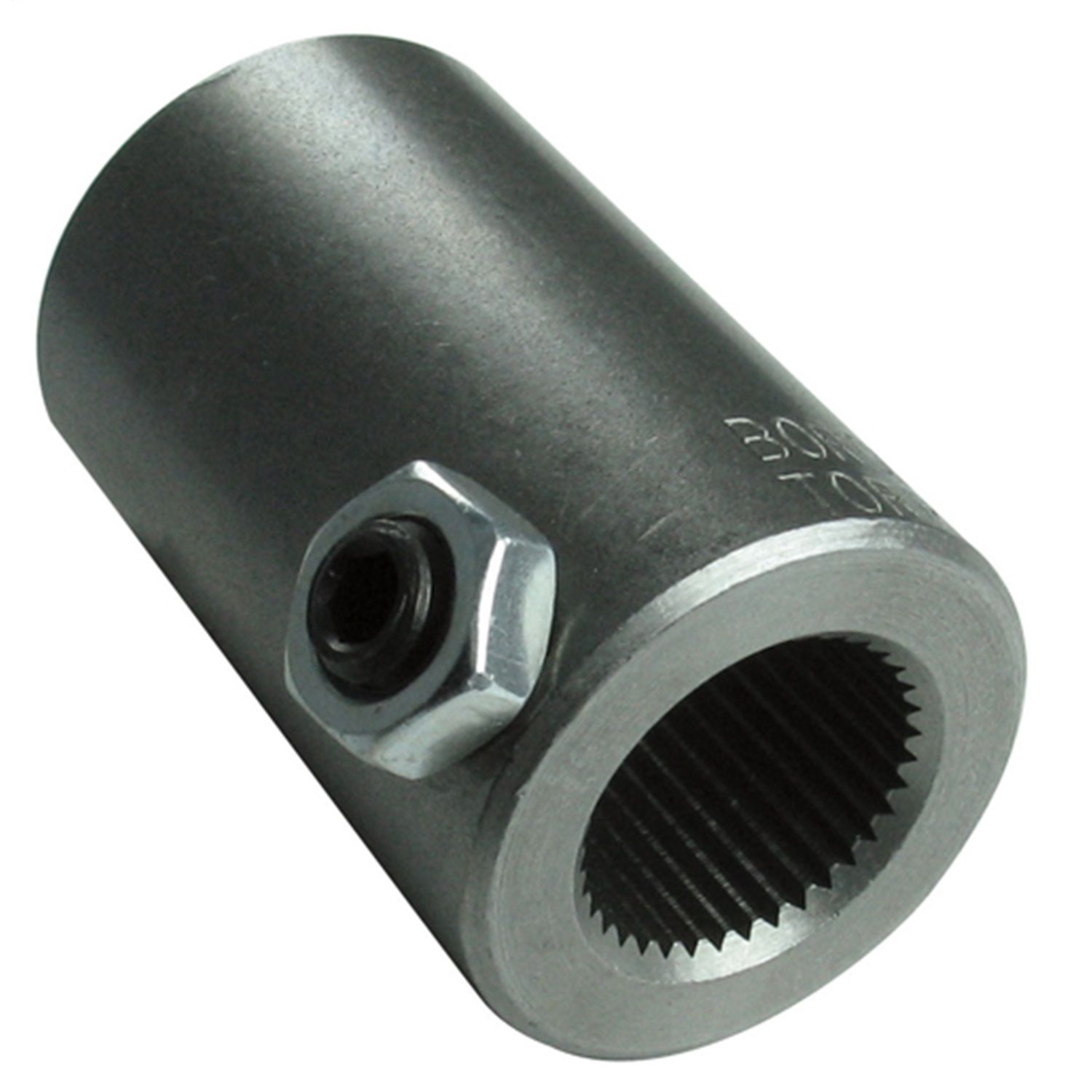

Borgeson – Steering Coupler – P/N: 313434 – Steel steering coupler. Fits 3/4 in.-36 Spline X 3/4 in.-36 Spline.

Using a 2" straight extension, called a coupler, to extend the steering box, R&P shaft or the column shaft, can sometimes eliminate a universal joint. The coupler can be welded or pinned to the un-splined end of a shaft. The 1"- 48 and 1" DD couplers have a 1-1?4" hole that will accept either an adapter to reduce inside diameter to 3/4" smooth or another splined or 3/4" DD coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler's steel is less susceptible to heat damage from welding. Couplers are available in the same spline and Double D sizes as our universal joints. Couplers and adapters are available in steel and stainless steel only.

Additional Attributes:

GTIN: 00843975002538
Material: Steel
Spline Quantity: 36
Length: 2.00
Color: Natural Steel
End 1 Gender: Female
End 2 Gender: Female
End 1 Diameter: .750
Grade Type: Performance
End 2 Diameter: .750
CA Prop 65 Required: Y
Prop 65 – Long Label: WARNING: This product can expose you to chemicals including Nickel and Chromium (hexavalent compounds), which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit: www.P65Warnings.ca.gov
Shaft End 1: 3/4 in. 36-spline
Shaft End 2: 3/4 in. 36-spline

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 1.75 x 3.75 x 5.75 inches
Weight: 0.48 PG

PDF:

JOINT_SHAFT_GENERAL
