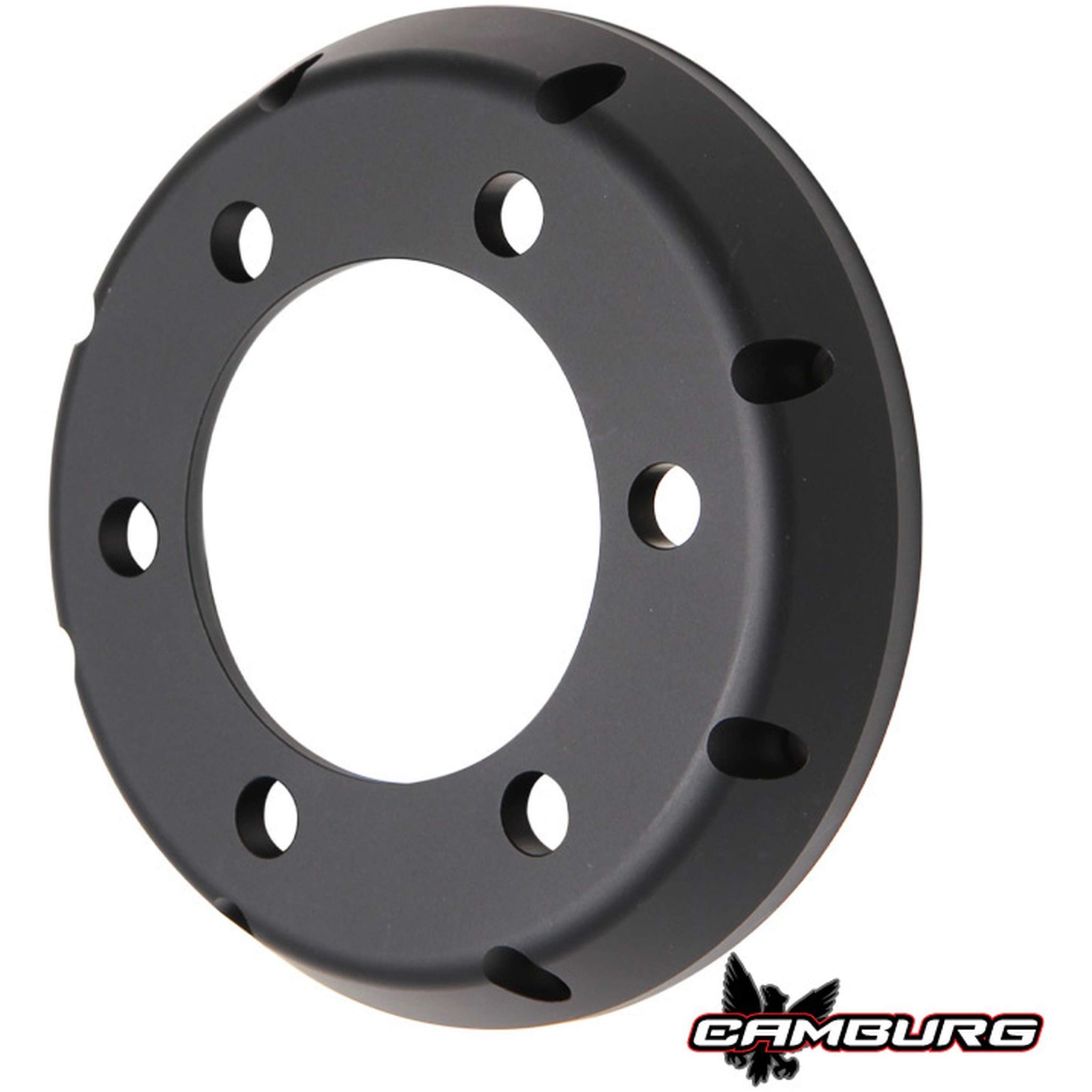

Camburg Engineering 2.0 Front Rotor Adapter [Extended] (5×5.5 | 8×7.62) CAM-010035

These rotor adapters/hats are designed for our 2.0 front race hubs. We CNC machine them in-house from 6061-T6 aluminum, then Type II anodize them matte black. We offer these in two versions to offset the brake rotor. Typically we use our standard version for our offset hubs and the extended version for our centered hubs. When running 4-6 piston calipers we recommend using the extended version for more caliper clearance behind the wheel. Their is a 3/4? difference between the two versions. These are setup to use 12?-14? OD rotors with a 8 on 7-5/8 bolt pattern using 5/16-24 SHCS hardware. These are sold individually and include the 5/16 allen bolts (8). These add 0.385? to the face of the hub for the WMS and the rotor is located 1.4? from the WMS on the standard and 2.15? on the extended version.

Additional Attributes:

GTIN: 00888563187815
Material: 6061-T6 Billet Aluminum
Finish: Anodized
Grade Type: Performance
Bolt Pattern: 5×5.5
Hardware Included: Yes
Hub Size: 2.00
Mounting Hardware Included: Yes
Prop 65 Y/N: No

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Weight:
