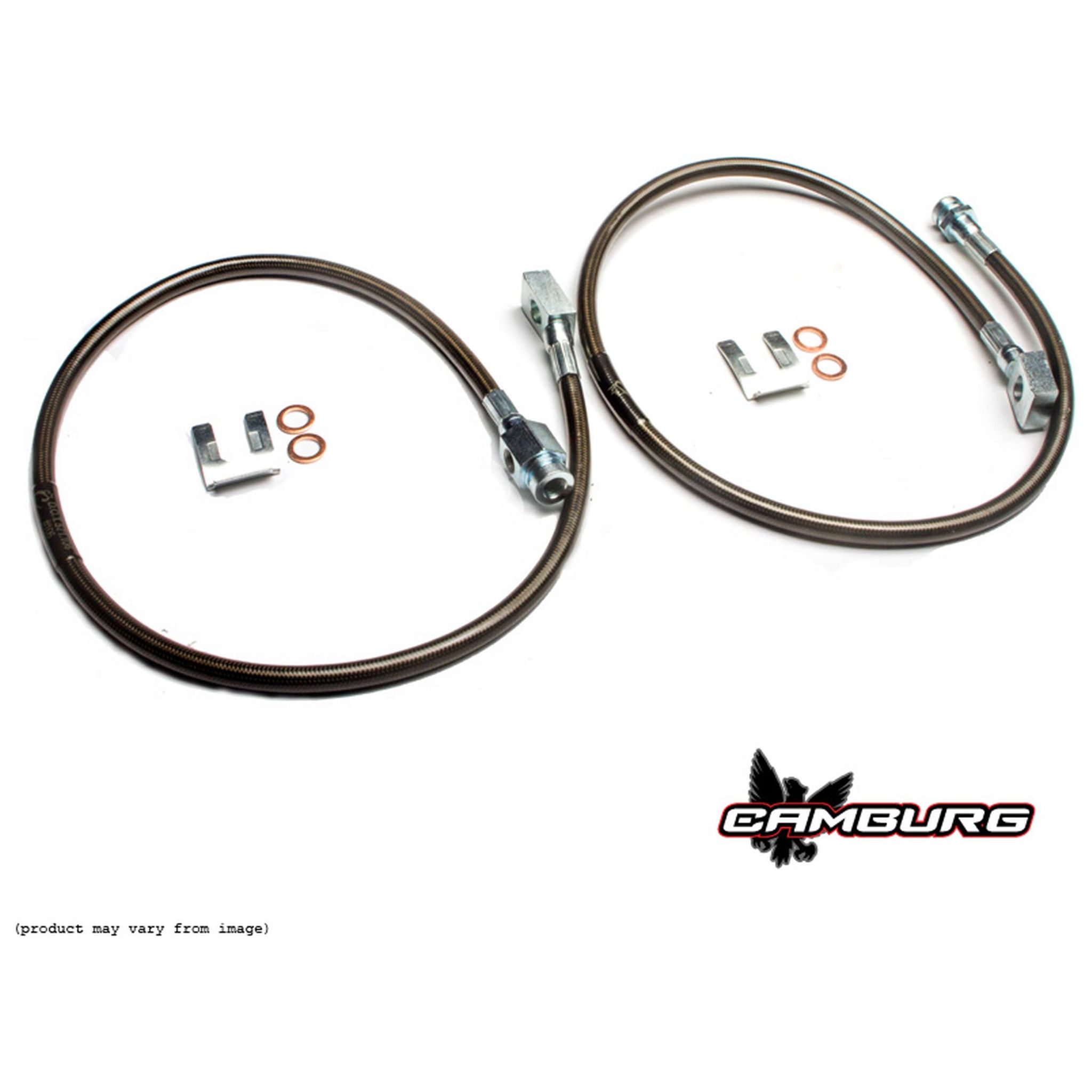

These are the same brake lines we use in our performance and long-travel kits. They are extended in length, Teflon-lined, stainless steel braided and Kevlar reinforced with an additional protective covering. Our brake lines are made up of 5 layers for optimum strength and every single one is pressure tested. We know our brake lines are used in extreme conditions and are getting hit, pulled on, etc. off-road so we cut no corners. They come with everything you need to mount to the factory calipers. Some '96-97 Rangers require the older '89-96 versions if they do not have 4 wheel ABS. You can tell if the truck doesn't have 4-Wheel ABS if the driver side brake line at the frame has a bulkhead with two hard lines coming into it. If there is no bulkhead and just a single line, then the truck has 4 wheel ABS. These are 29" in length. These are pressure tested to 4,500 psi and meet Federal D.O.T. MVSS-106 standards. '89-96 dual port driver side line 96-97 single port driver side line (4 wheel ABS).
Additional Attributes:
GTIN: 00888563192666
Line Length: 29
Line Material: Teflon-Lined
Disc Or Drum Brakes: Disc
Maximum Line Pressure: 4500
Fittings Included: Yes
Outer Sheathing Material: Braided Stainless Steel
Prop 65 Y/N: No
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Weight:
