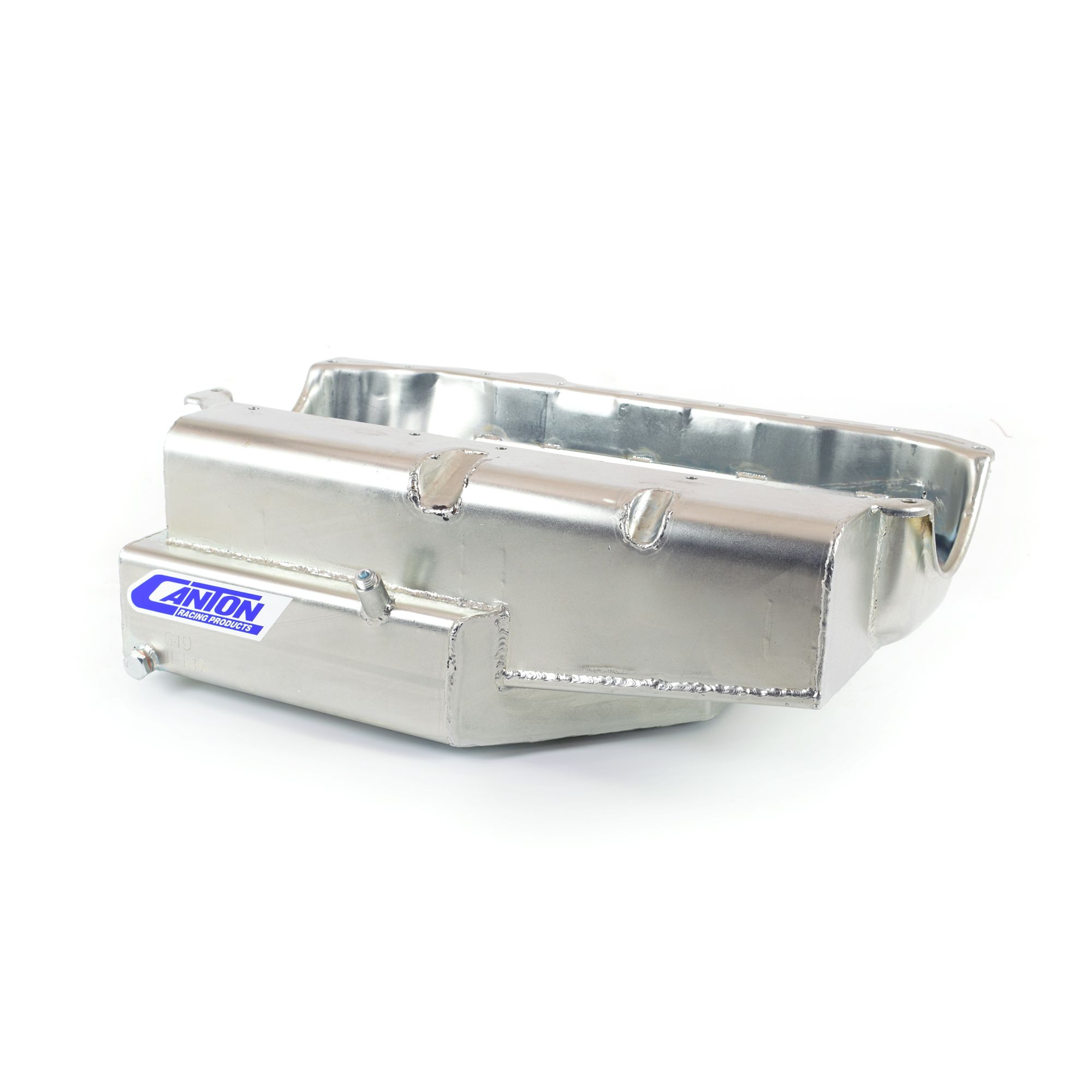

This open chassis "L" style steel wet sump is for ?85 and earlier Small Block Chevys with left or rear mounted starters. This oil pan is designed for chassis without x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has an 11-1/2" wide, 16" long, 7" deep ?L? sump with a 9 quart system capacity. Requires one of our pickups. Also an available option for this pan is #20-914 Pro Louvered Windage Tray, designed to replace the standard screen tray in this pan.
Additional Attributes:
GTIN: 00887753711250
Baffled: Yes
Capacity: 9 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Engine: For S.B. Chevy 1985 and earlier blocks
Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
Feature 4: Bolt On Slosh Baffle For Oil Control

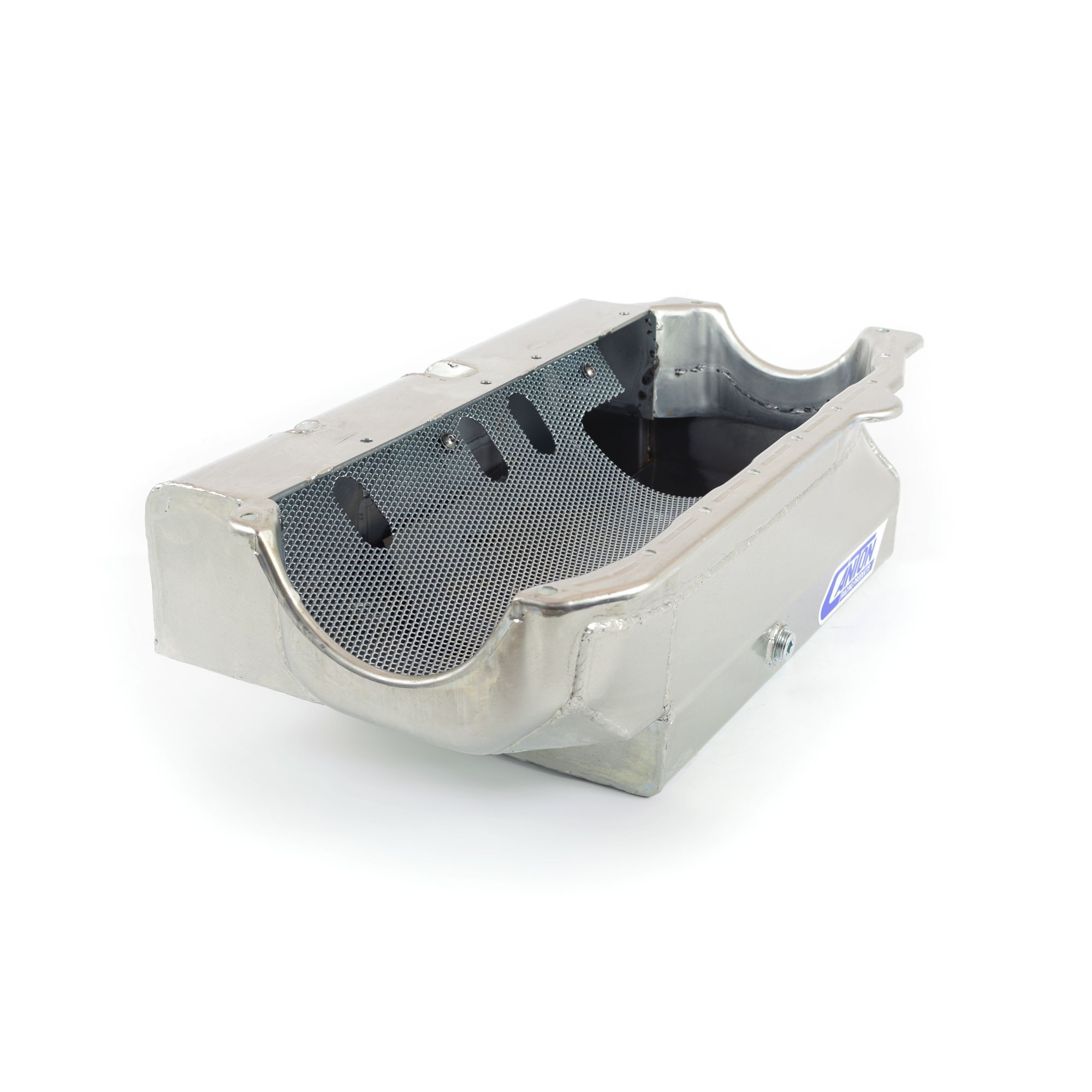

Feature 5: Removable Screen Windage Tray
Feature 6: Provision for Canton Pan Mounted Dipstick
Feature 7: 1/2 NPT Temp Sensor Bung
Feature 8: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-040 – Pickup for Small Block Standard Volume Pumps M55 & M55A
Recommended Accessory 10: 88-100 – 1 Piece SBC Pre-85′ Oil Pan Gasket
Recommended Accessory 11: 88-102 – 4 Piece SBC Pre-85′ Oil Pan Gasket
Recommended Accessory 2: 20-042 – Pickup for Small Block Standard Volume Pumps M155 w/ 3/4″ Tube
Recommended Accessory 3: 20-070 – Pickup for Small Block High Volume Pumps M55HV
Recommended Accessory 4: 20-072 – Pickup for Small Block High Volume Pumps w/ 3/4″ Tube M155HV
Recommended Accessory 5: 20-077 – Press In Pickup for Melling 10552 & 10555 Pumps
Recommended Accessory 6: 20-100 – Pickup for Big Block (5-bolt) Pumps M77 & M77HV
Recommended Accessory 7: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 8: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 9: 22-300 – SBC Oil Pan Stud Kit
Stoke: 3.875″
Windage Tray Included: Yes
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 24.5 x 16.25 x 9.5 inches
Weight: 23 PG
Pan Install – Standard Part B
