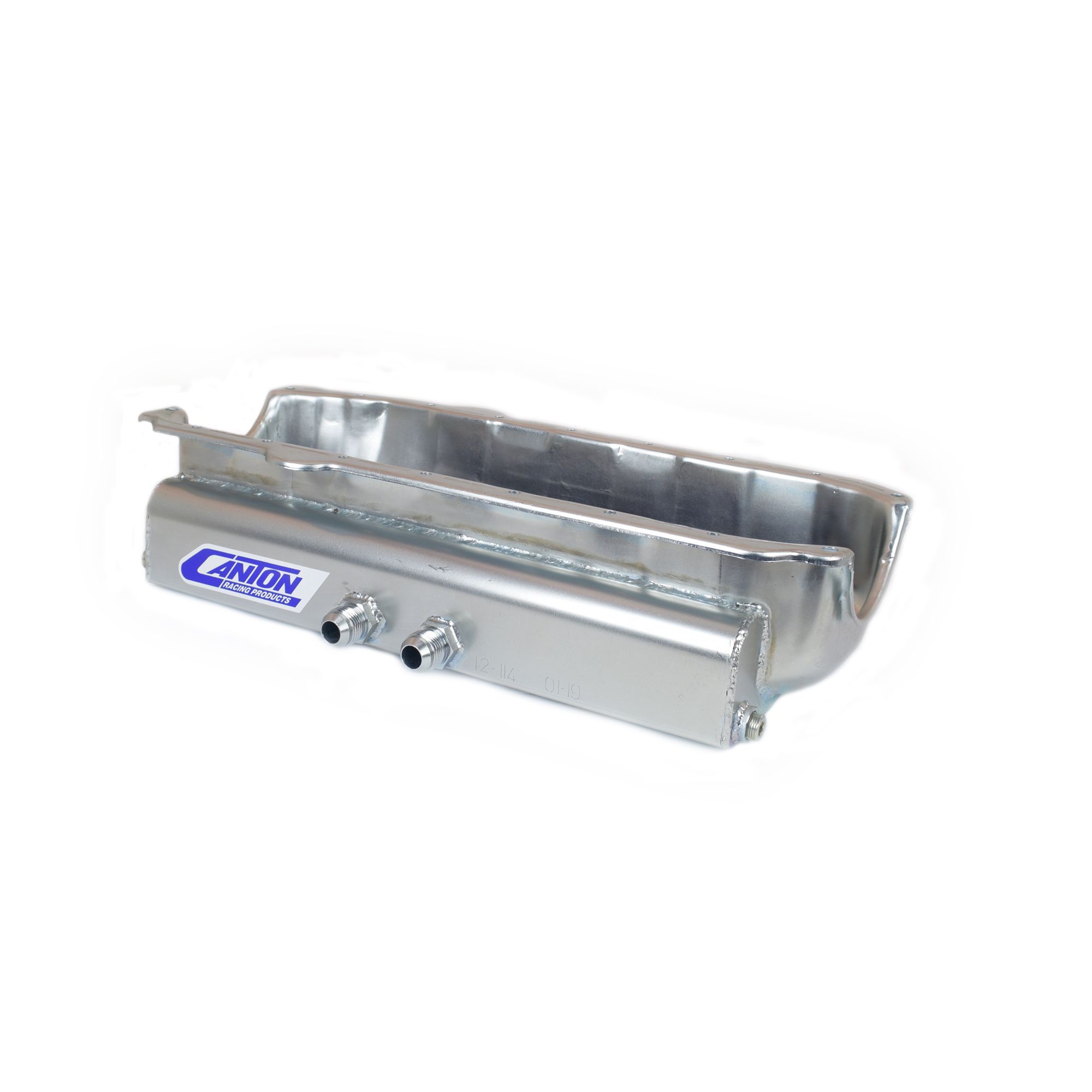

This SBC shallow power dry sump is for all pre-?85 blocks using an aftermarket starter and 153 or 168 tooth flywheels or a left hand or rear mount starter and a smaller flywheel. Designed 4-3/4" deep to permit the lowest engine installation available in a pan using our horsepower saving oil recovery system.
Additional Attributes:
GTIN: 00887753711427
Baffled: No
Crank Scraper Included: Yes
Drain Plug Included: Yes
Feature 1: Two -12AN Pickups Exiting on the Right Side
Feature 2: Pickup Tube Clean Out Ports
Feature 3: Oil Recovery Pouch
Feature 4: 1/4″ Deep Oil Collection Trough
Feature 5: Crank scraper

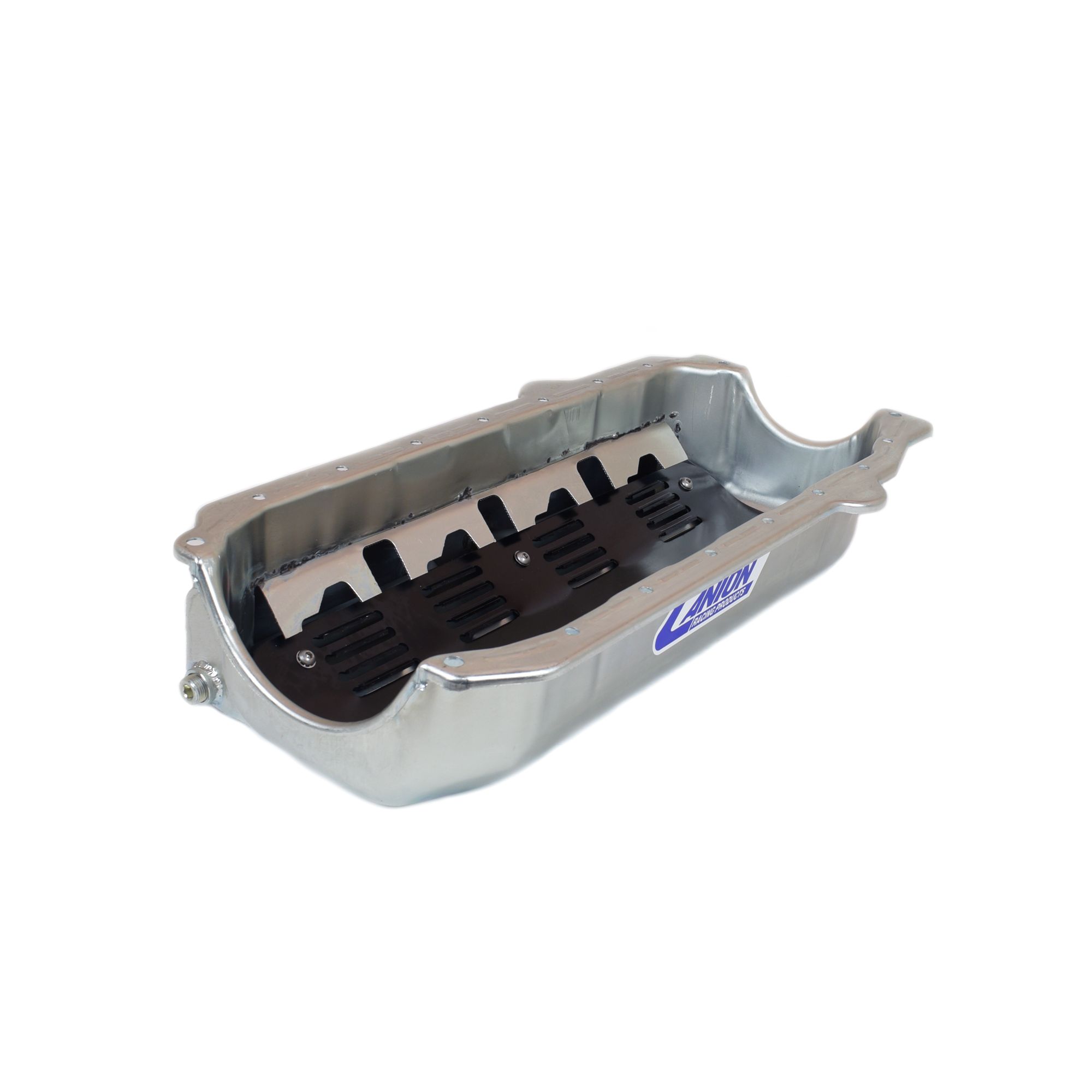

Feature 6: Built In Louver Windage Tray
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 22-300 – SBC Oil Pan Stud Kit
Recommended Accessory 2: 22-540 – SBC Oil Input Adapter
Recommended Accessory 3: 22-640 – In-Line Screen Protector -8 AN Fittings
Recommended Accessory 4: 22-650 – In-Line Screen Protector -10 AN Fittings
Recommended Accessory 5: 22-660 – In-Line Screen Protector -12 AN Fittings
Recommended Accessory 6: 22-750 – -12 AN Screen Pump Protector
Recommended Accessory 7: 23-110L – 10qt Universal Dry Sump Tank w/ Left Side Fittings
Recommended Accessory 8: 23-120 – 10qt Sprint Style Dry Sump Tank w/ Right Side Fittings
Recommended Accessory 9: 88-100 – SBC Pre ?85 Oil Pan Gasket
Stoke: 3.875 inches
Sump Depth: 4.25 inches
Windage Tray Included: Yes
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 23 x 12 x 9 inches
Weight: 12 PG
