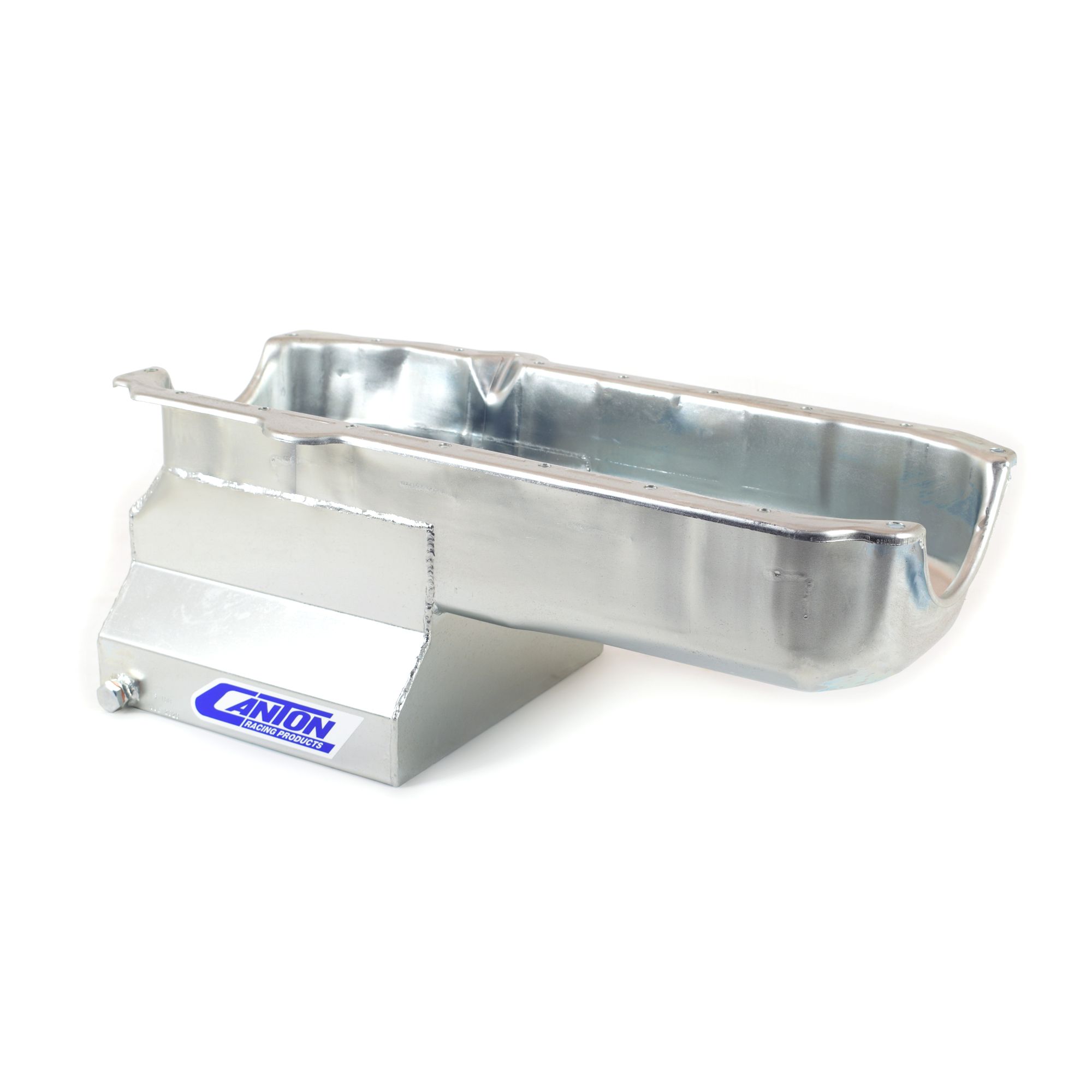

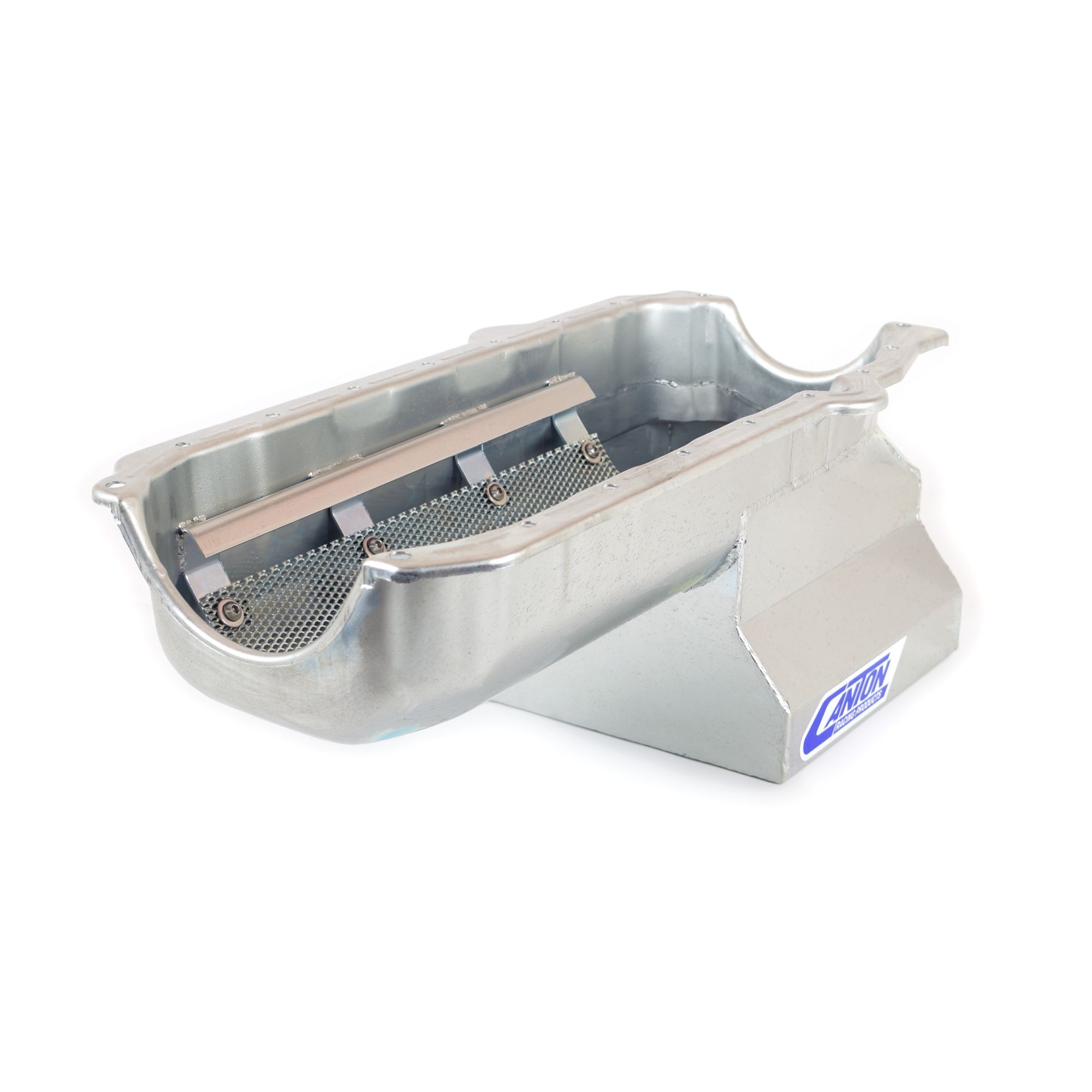

This Small Block Chevy "T" sump drag race oil pan is for pre-?80 blocks with a left side dipstick. It has a 8-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 8 qt system capacity. Clears a 3.875" stroke with a steel rod. Will work with stock or aftermarket starters. This pan requires one of our pickups.
Additional Attributes:
GTIN: 00887753711601
Baffled: Yes
Capacity: 8 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: No
Drain Plug Included: Yes
Engine: For S.B. Chevy Pre-1980 Blocks
Feature 1: Features Competition Oil Recovery System
Feature 2: Removable Screen Windage Tray
Feature 3: Built in Crank Scraper
Feature 4: Trap Door Baffle For Oil Control
Feature 5: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-060 – Pickup for Small Block Standard Volume Pumps M55 & M55A
Recommended Accessory 2: 20-090 – Pickup for Small Block High Volume Pump M55HV
Recommended Accessory 3: 20-095 – Pickup for Small Block High Volume Pump M155HV with 3/4″ Inlet
Recommended Accessory 4: 88-100 ? SBC Pre ?85 Oil Pan Gasket
Stoke: 3.875 inches
Sump Depth: 8.5 inches
Sump Width: 10.5 inches
Windage Tray Included: Yes
Extended Information:
Emissions : CARB Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 23 x 12 x 9 inches
Weight: 14 PG
Pan Install – Standard Part B
